34° Clipped Head Framing Nailer
8561110

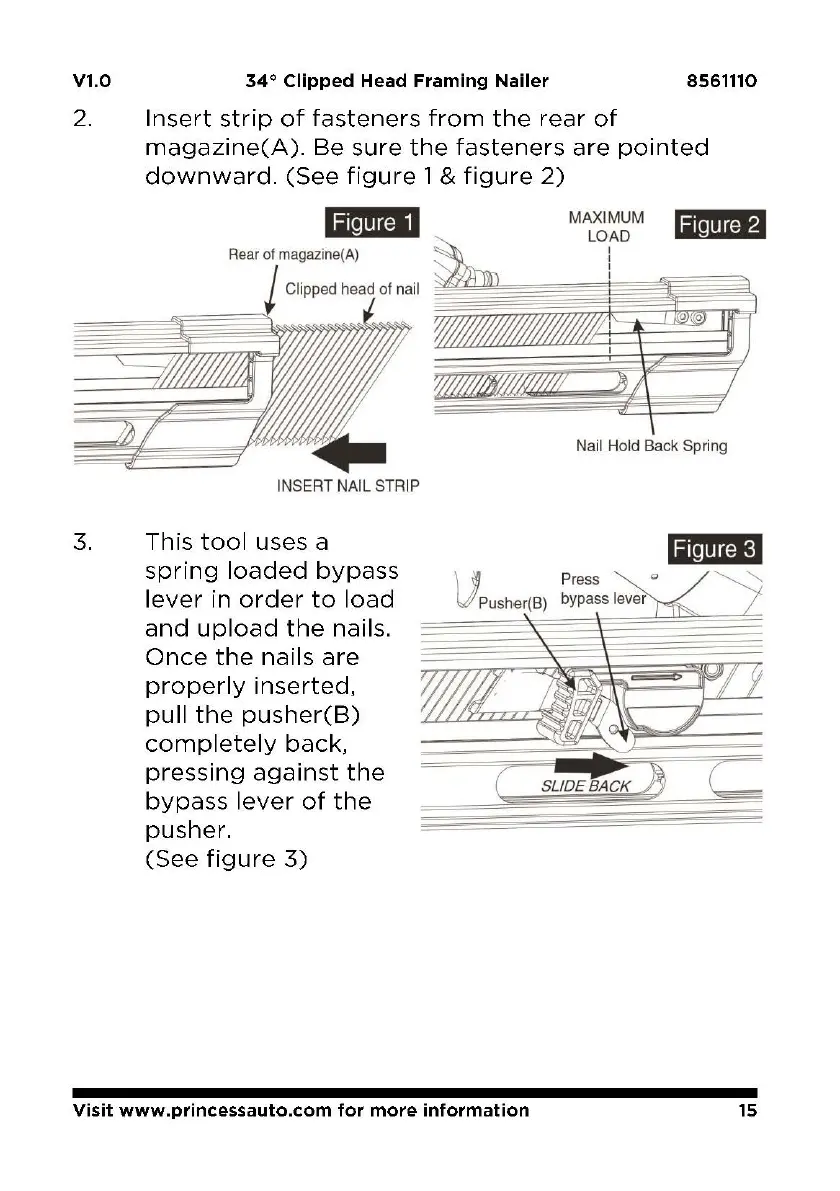

2. Insert strip of fasteners from the rear of
magazine(A). Be sure the fasteners are pointed
downward. (See figure 1 & figure 2)
3.
Wi!iijl
Rear of magazine(A)
IN SERT NAIL STR IP
This tool uses a
spring loaded bypass
lever in order to load
and upload the nails.
Once the nails are
properly inserted,
pull the pusher(B)
completely back,
pressing against the
bypass lever of the
pusher.
(See figure 3)
MAXIMUM
LOAD
Nail Hold Back Spring
\ ~ Press
lf Pusher( B) bypass lever
