8561110

34°

Clipped

Head

Framing

Nailer

V1.0

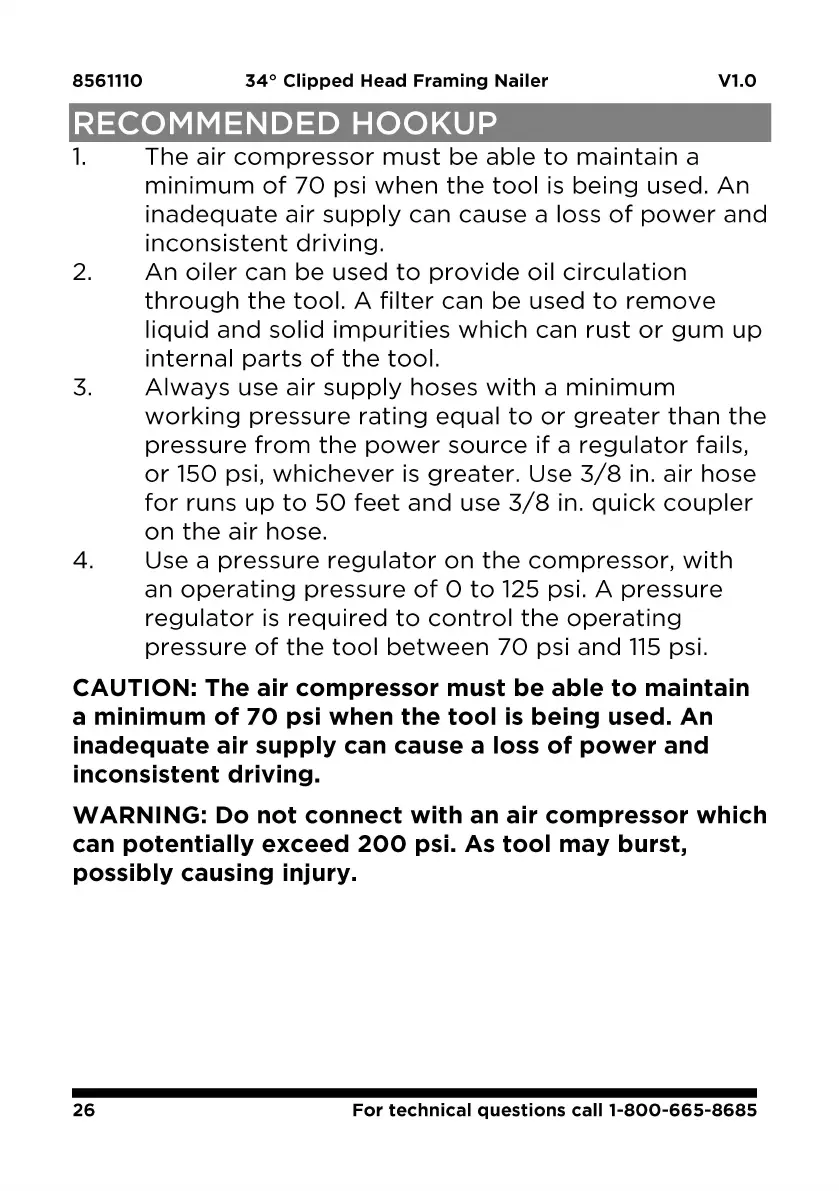

RECOMMENDED

HOOKUP

1.

The

air

compressor

must

be

able

to

maintain

a

minimum

of

70

psi

when

the

tool

is

being

used.

An

inadequate

air

supply

can

cause

a loss

of

power

and

inconsistent

driving.

2.

An

oiler

can

be

used

to

provide

oil

circulation

through

the

tool.

A

filter

can

be

used

to

remove

liquid

and

solid

impurities

which

can

rust

or

gum

up

internal

parts

of

the

tool.

3.

Always

use

air

supply

hoses

with

a

minimum

working

pressure

rating

equal

to

or

greater

than

the

pressure

from

the

power

source

if

a

regulator

fails,

or

150 psi,

whichever

is

greater.

Use

3/8

in.

air

hose

for

runs

up

to

50

feet

and

use

3/8

in.

quick

coupler

on

the

air

hose.

4. Use a

pressure

regulator

on

the

compressor,

with

an

operating

pressure

of

0

to

125 psi. A

pressure

regulator

is

required

to

control

the

operating

pressure

of

the

tool

between

70

psi

and

115

psi.

CAUTION:

The

air

compressor

must

be

able

to

maintain

a

minimum

of

70

psi

when

the

tool

is

being

used.

An

inadequate

air

supply

can

cause

a

loss

of

power

and

inconsistent

driving.

WARNING:

Do

not

connect

with

an

air

compressor

which

can

potentially

exceed

200

psi.

As

tool

may

burst,

possibly

causing

injury.

26

For

technical

questions

call

1-800-665-8685
