Vl.O

34°

Clipped Head Framing Nailer

8561110

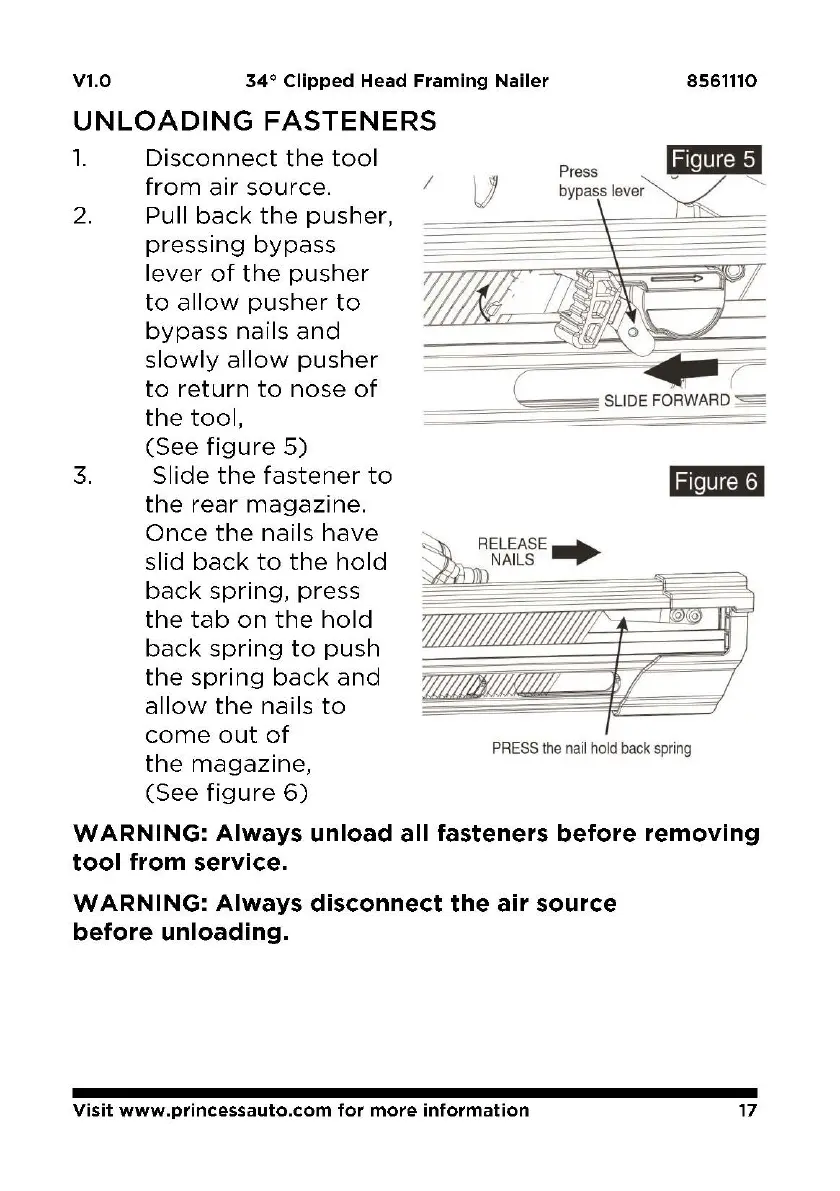

UNLOADING

FASTENERS

1.

Disconnect

the

tool

from

air

source.

I

2. Pull

back

the

pusher,

pressing

bypass

lever

of

the

pusher

to

allow

pusher

to

bypass

nails

and

slowly allow

pusher

to

return

to

nose

of

the

tool,

-

~-

SLIDE

FORWARD

~

3.

(See

figure

5)

Slide

the

fastener

to

the

rear

magazine.

Once

the

nails

have

slid

back

to

the

hold

back

spring,

press

the

tab

on

the

hold

back

spring

to

push

the

spring

back

and

allow

the

nails

to

come

out

of

the

magazine,

(See

figure

6)

RE

LE

ASE

............

NAILS ....,.......

PRESS

the

nail

hold

back

s

pring

WARNING:

Always unload all fasteners

before

removing

tool

from service.

WARNING:

Always disconnect the

air

source

before

unloading.
