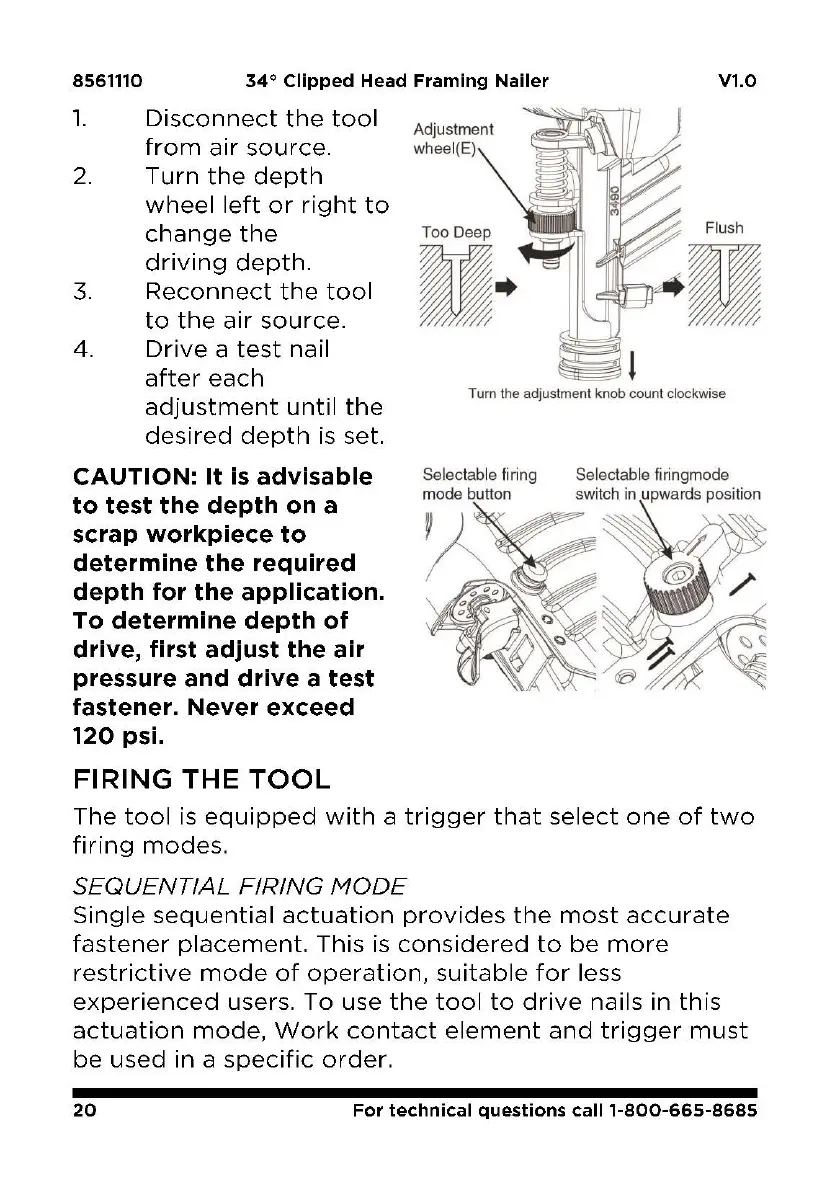

PROPOINT 8561110 - Firing the Tool

8561110
34° Clipped Head Framing Nailer
V1.0
1. Disconnect the tool
from air source.
2.
3.
Turn the depth
wheel left or right to
change the
driving depth.
Reconnect the tool
to the air source.
4. Drive a test nail
after each
adjustment until the
desired depth is set.
CAUTION: It is advisable
to test the depth on a
scrap
workpiece to
determine the required
depth for the application.
To determine depth of
drive, first adjust the air
pressure and drive a test
fastener.
Never exceed
120 psi.
FIRING THE TOOL
Too D eep
Flush
II ·
IJ
Turn the adjustment knob count clockwise
The tool is equipped with a trigger that select one of two
firing modes.
SEQUENTIAL FIRING MODE
Single sequential actuation provides the most accurate
fastener placement. This is considered to be more
restrictive mode of operation, suitable for less
experienced users. To use the tool to drive nails in this
actuation mode, Work contact element and trigger must
be used in a specific order.
