8561110
34° Clipped Head Framing Nailer
V1.0

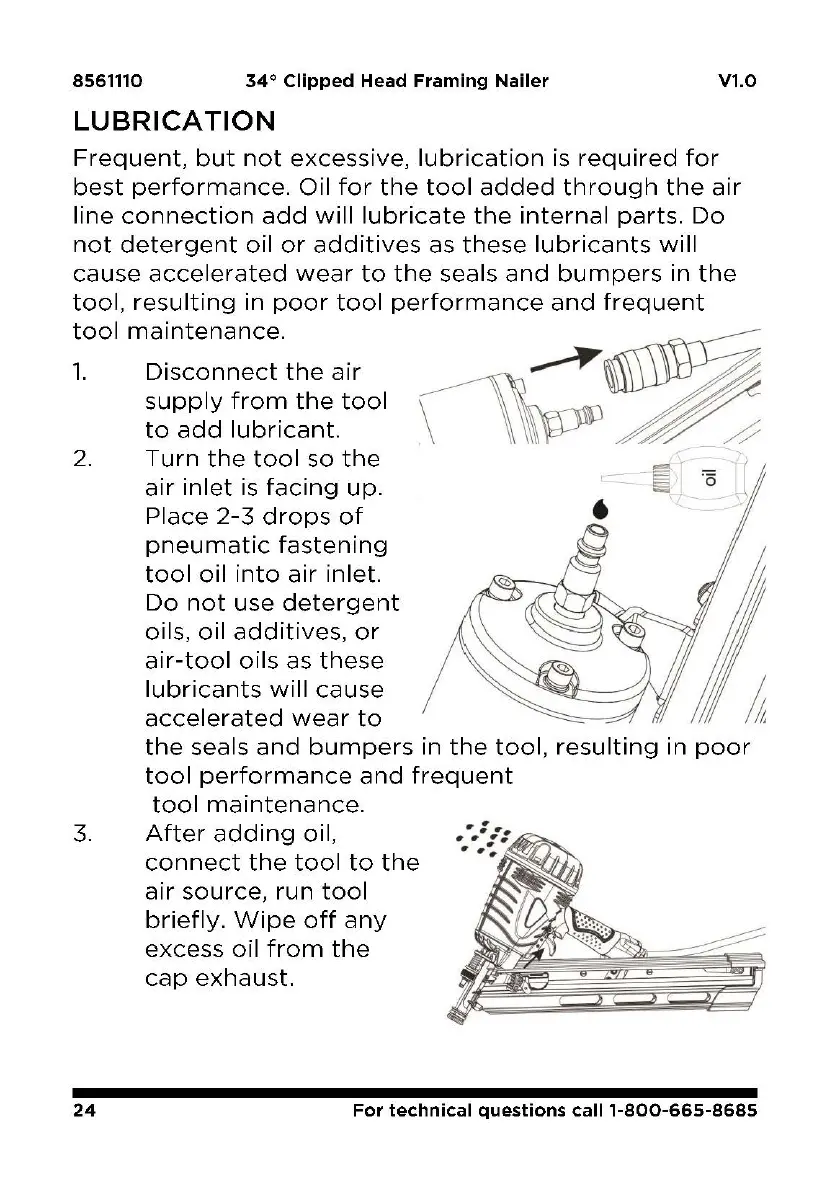

LUBRICATION
Frequent, but not excessive , lubrication is required for
best performance. Oil for the tool added through the air
line connection add will lubricate the internal parts. Do
not detergent oil or additives as these lubricants will
cause accelerated wear to the seals and bumpers in the
tool, resulting in poor tool performance and frequent
tool maintenance.
1.
2.
Disconnect the air
supply from the tool
to add lubricant.
Turn the tool so the
air inlet is facing up.
Place 2-3 drops of
pneumatic fastening
tool oil into air inlet.
Do not use detergent
oils, oil additives, or
air-tool oils as these
lubricants will cause
accelerated wear to
~~
l "(5 [
the seals and bumpers in the tool, resulting in poor
tool performance and frequent
tool maintenance.
3. After adding oil,
connect the tool to the
24
air source, run tool
briefly. Wipe off any
excess oil from the
cap exhaust.
For technical questions call 1-800-665-8685
