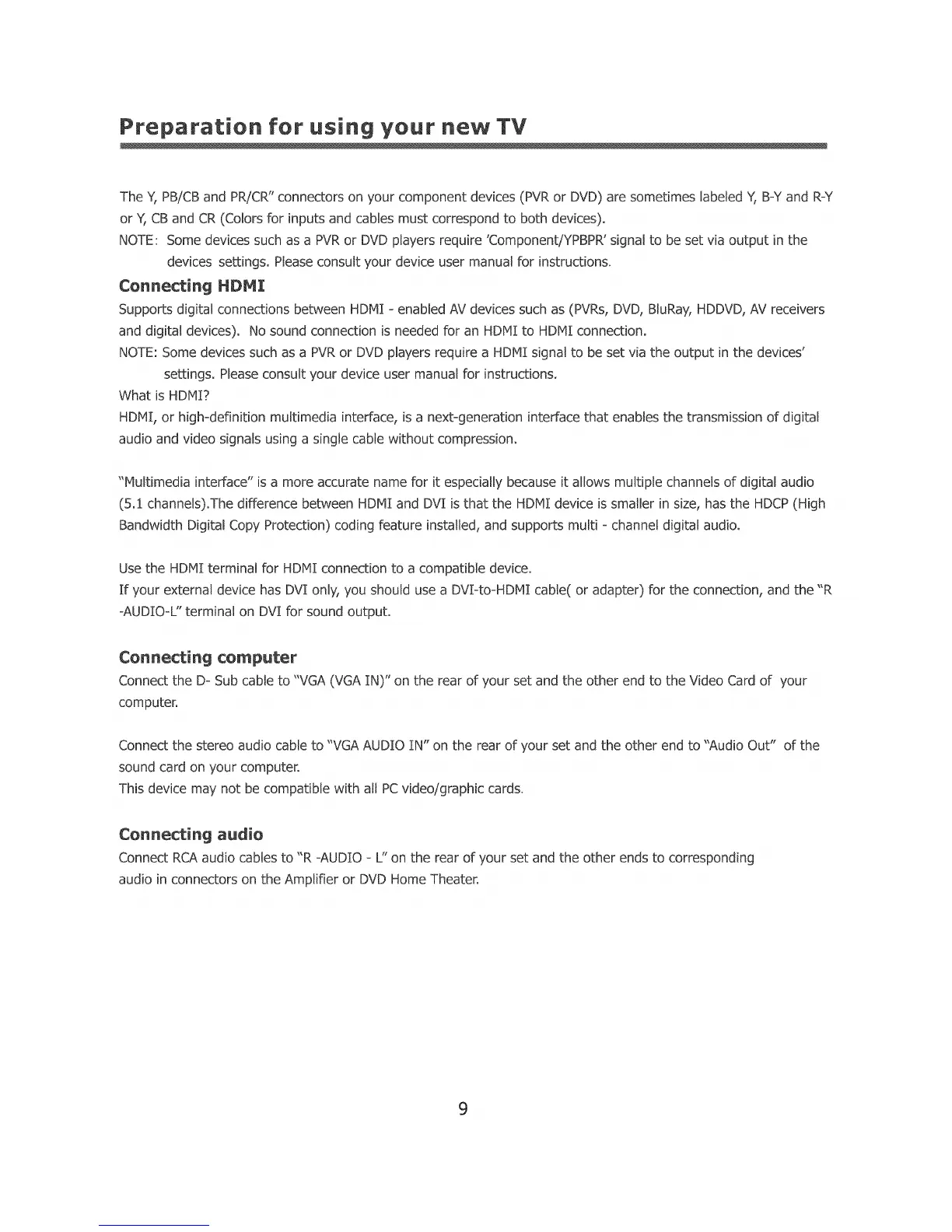

Preparation for using your new TV
The Y, PB/CBand PR/CR"connectors on your component devices (PVR or DVD) are sometimes labeled Y,B-Yand R-Y
or Y,CBand CR (Colors for inputs and cables must correspond to both devices).
NOTE: Some devices such as a PVRor DVD players require 'Component/YPBPR' signal to be set via output in the
devices settings. Please consult your device user manual for instructions.
Connecting HDM!
Supports digital connections between HDMI ° enabled AV devices such as (PVRs, DVD, BluRay,NDDVD,AV receivers
and digital devices). No sound connection is needed for an HDMI to HDMI connection.
NOTE: Some devices such as a PVRor DVD players require a HDMI signal to be set via the output in the devices'
settings. Please consult your device user manual for instructions.
What is HDMI?
HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital
audio and video signals using a single cable without compression.
"Multimedia interface" isa more accurate name for it especially because it allows multiple channels of digital audio
(5.1 channels).The difference between HDM]:and DV]:is that the HDM]:device is smaller in size, has the HDCP(High
Bandwidth Digital Copy Protection) coding feature installed, and supports multi ° channel digital audio.
Use the HDMI terminal for HDMI connection to a compatible device,
If your external device has DVI only, you should use a DVI-to=HDMI cable( or adapter) for the connection, and the "R
-AUDIO-L" terminal on DVI for sound output,
Cennecting computer
Connect the D=Sub cable to "VGA (V(3A:IN)" on the rear of your set and the other end to the Video Card of your
computer.
Connect the stereo audio cable to "VGA AUDIO :IN"on the rear of your set and the other end to "Audio Out" of the
sound card on your computer.
This device may not be compatible with all PCvideo/graphic cards.
Connecting audio
Connect RCAaudio cables to "R -AUDIO - L" on the rear of your set and the other ends to corresponding
audio in connectors on the Amplifier or DVD Home Theater.
