Appendix

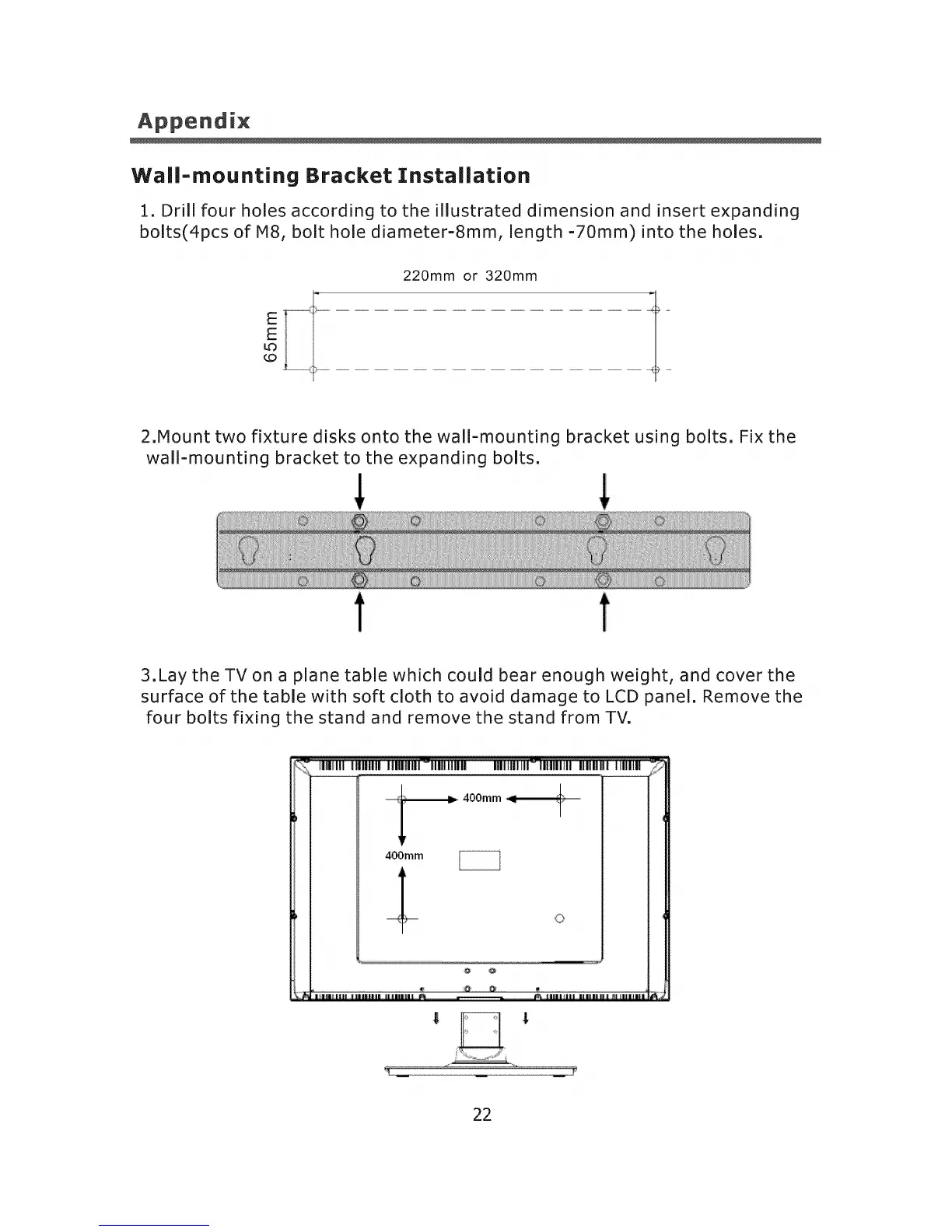

Wall-mounting Bracket Installation
1. Drill four holes according to the illustrated dimension and insert expanding
bolts(4pcs of MS, bolt hole diameter=8mm, length =70ram) into the holes.
E
E
LO
_)
220ram or 320mm
2.Mount two fixture disks onto the wall-mounting bracket using bolts. Fix the
wall=mounting bracket to the expanding bolts.
t
3.Lay the TV on a plane table which could bear enough weight, and cover the
surface of the table with soft cloth to avoid damage to LCD panel. Remove the
four bolts fixing the stand and remove the stand from TV.
22
