ProScan PDVD1030 - Connection; Connecting to TV or Video Player

NOTE:

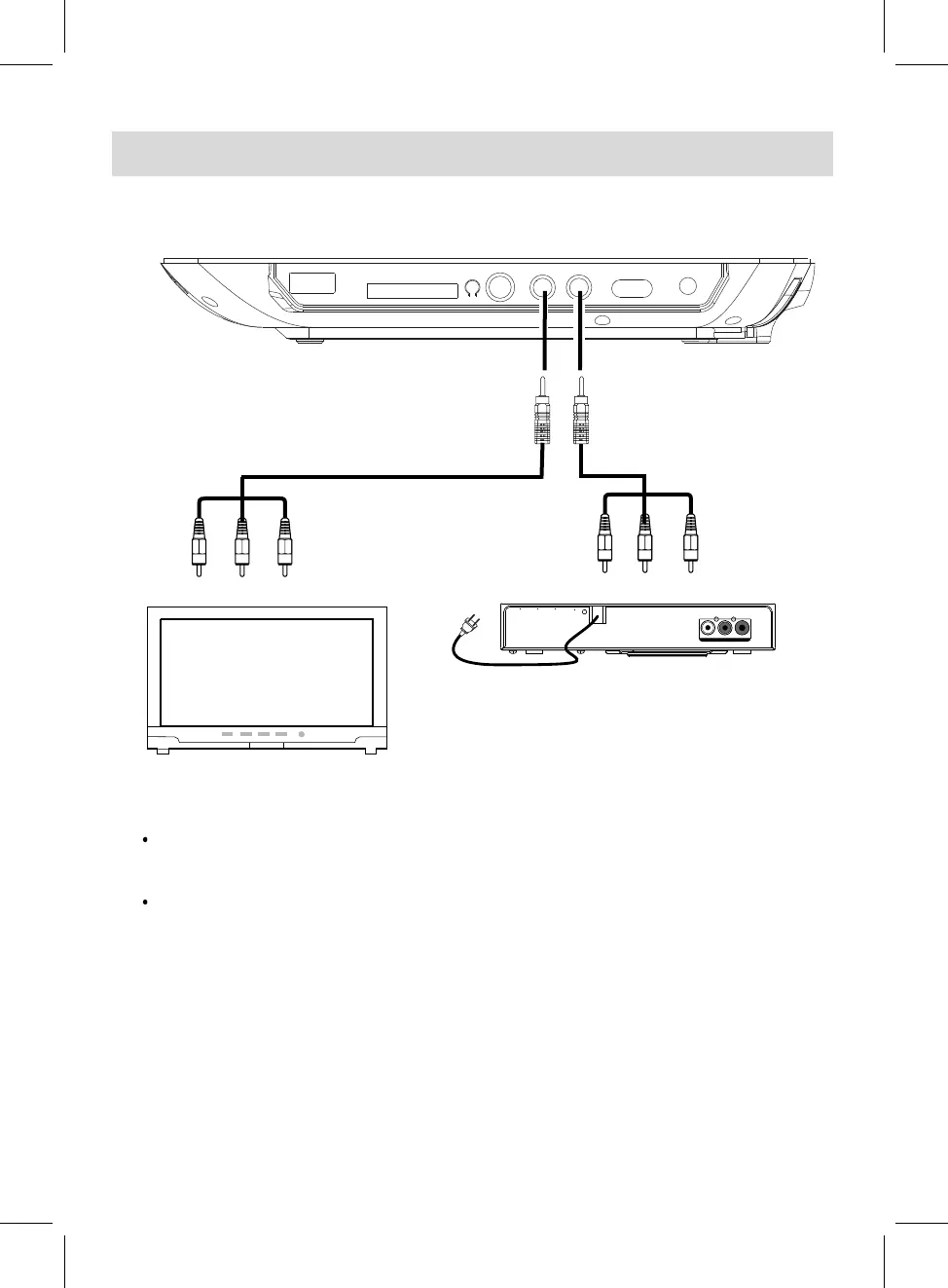

Connecting to a TV or Video Player (such like DVD; VCR; DVR Players ... ) with AV connection cable
The default setting of the unit is AV OUT. If connecting to external Video Player (such like
DVD, VCR, DVR Players), press the SOURCE button to set it to AV IN mode ("AV IN" will
appear on the screen). Press again to resume normal mode.
Using the supplied Earphone to listen privately.
CONNECTION
12
DC INOFF ON
AV-INAV-OUT
CARD
USB
Connected to the TV
Connected to the Video Player
A
UDIO OUT
LR
1
20V ~ 60Hz
V
IDEO OUT
VIDEO
Video Player
D
IGI TAL
Video input jack ( Yellow )
Audio left channel input jack ( White )
Audio right channel input jack ( Red )
Audio/Video Cable
