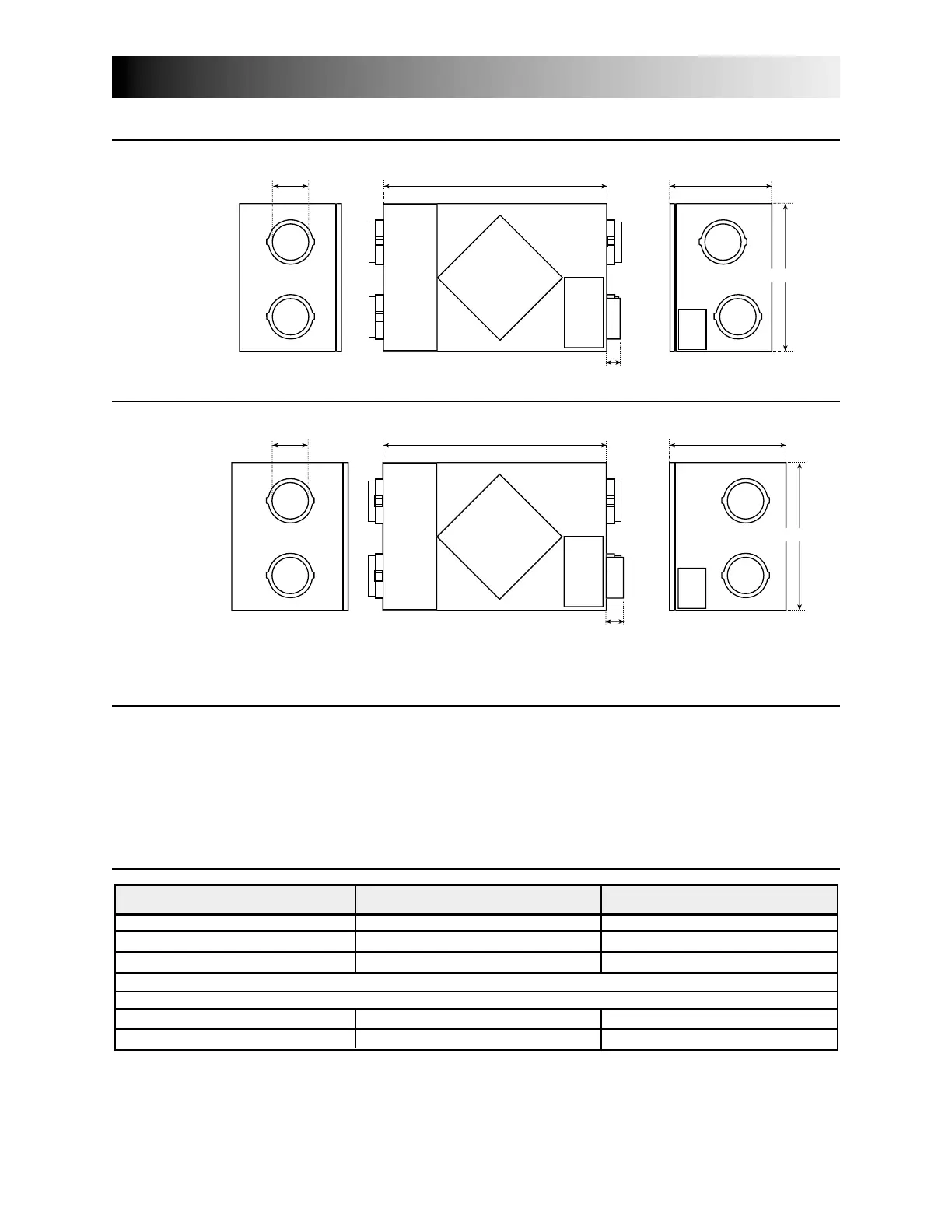

4.4 D IMENSIONS
4.0 Technical Data (cont’d)
13-3/4"
(
349mm
)
20" (508mm)
50
0
"
(
6"
(
152mm
)
2.5"
(
63mm
)
30-1/4"
(
768mm
)
VK
00
4
0
Model numbers:
- 84-HRV100
- 84-ERV100
19"
(
483mm
)
20" (508mm)
8m
5
0
6"
(
152mm
)
30-1/4"
(
768mm
)
2.5"
(
63mm
)
VK
0039
Model numbers:
- 84-HRV200
- 84-ERV200
Main controls:
• Economy
• Value
Optional controls:
• 20/40/60-minute push-button
Link option (standard):
• Furnace interlock
(use with forced air systems)
4.5 C ONTROLS AND F URNACE L INK O PTION
4.6 S PECIFICATIONS
Model 84-
Weight
Port Diameter
Drain Diameter
HRV/ERV 100
65 lbs (30 kg)
6” (152 mm)
1/2” (12 mm)
HRV/ERV 200
73 lbs (33 kg)
6” (152 mm)
1/2” (12 mm)
Installation Chains, springs and hooks (provided with the unit).
Motor Speed High and low speeds factory set (optional increased low speed - BLUE wire).
Electrical supply 120 V, 60 Hz 120 V, 60 Hz
Power Consumption 150 Watts 225 Watts

protech 84-HRV100 Specifications

General

Brand	protech
Model	84-HRV100
Category	Fan
Language	English
