Q26 _03_17 4
DL1
+ -
12Vac
AC IN
M1
START
STOP
17 18
12-24V
ac /dc
C.
N.C.
N.O.
TX RX
12-24V
ac /dc
RF40

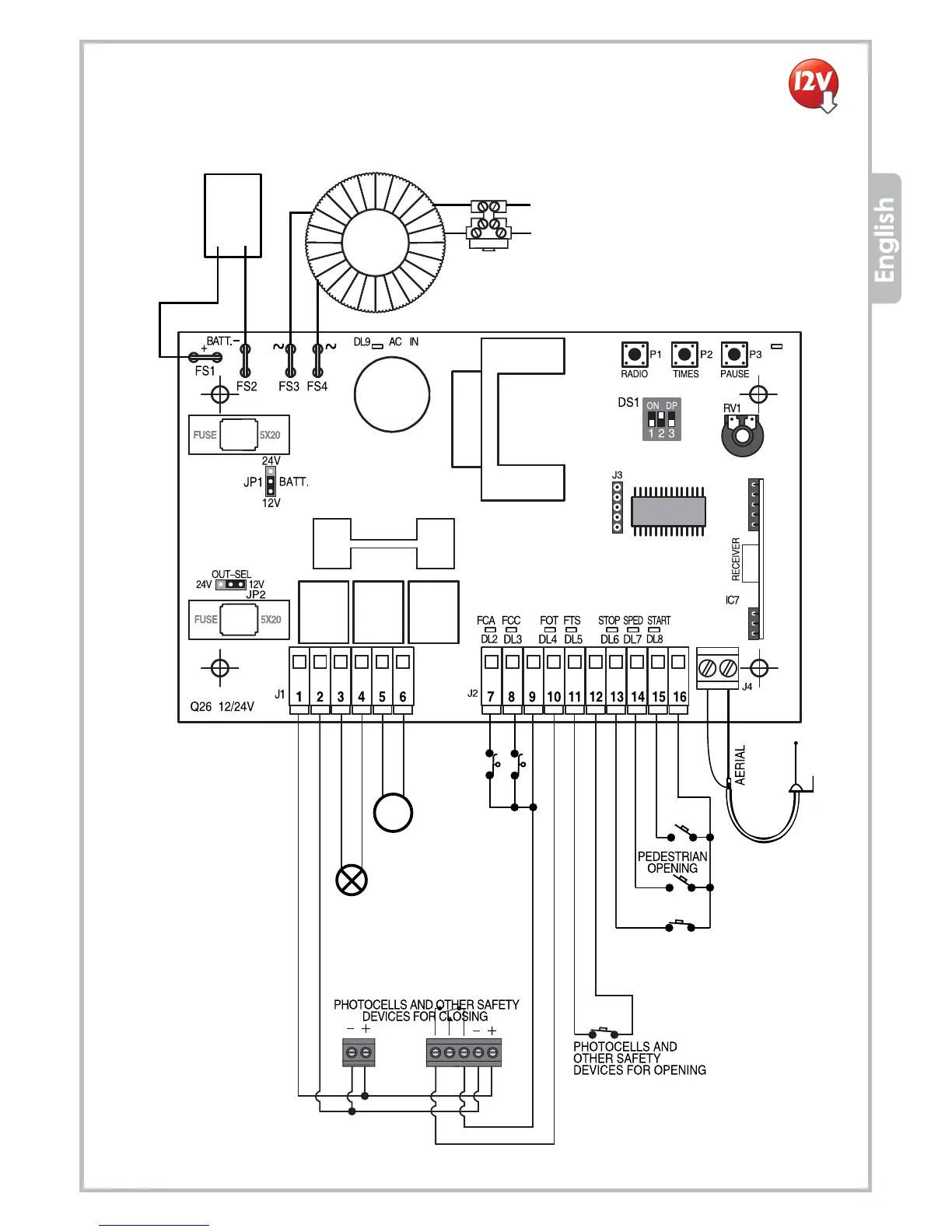

WIRING Diagram for 12Vdc motor
Back-up
battery
12V dc 1,2A
Transformer 230V /12V ac 80VA
230Vac (MAIN)
Fuse 5A
FLASHING LIGHT
12Vdc
max 20W
Motor
12V
OPENING LIMIT SWITCH
CLOSING LIMIT SWITCH
