Proteco Q26 User Manual

24V
12V
JP1
24V 12V
JP2
24V 12V
JP2
24V
12V
JP1
+ -
12Vac
AC IN
+ -
20Vac
AC IN
+ -
Q26 _03_17 6
Warning: Make sure that JP1 (battery-charger) e JP2
(accessories power supply) are correctly placed
according to voltage of the motor as shown in the
picture.
3.7 Electrical Mains wiring
3.7.1 Electrical MAINS (230Vac)
Once all other wirings have been carried out, the control panel can be wired to the electrical mains.
• Use with 24Vdc motor → wire the 230V main power to the plugs on the transformer (80VA, 230V primary –20V
secondary) and the transformer output to FS3-FS4 plugs on control panel.
• Use with 12Vdc motor → wire the 230V main power to the plugs on the transformer (80VA, 230V primary –12V
secondary) and the transformer output to FS3-FS4 plugs on control panel.
3.7.2 SOLAR power supply
The control panel can also be powered by a solar panel.
In this case wire the solar panel’s battery to FS3-FS4 plugs of the control panel.
3.7.3 BACK-UP BATTERY wiring
A back-up batteries system can be wired to allow the gate opening even in case of power-failure:
• 24Vdc motor → wire nr 2 back-up batteries, 12V 1,2Ah each, to FS1(+) FS2(-) plugs
• 12Vdc motor → wire nr 1 back-up battery, 12V 1,2Ah to FS1(+) FS2(-) plugs
Back-up
battery
12V dc 1,2A
230Vac (MAIN)
Fuse 5A
Transformer 230V /20V ac 80VA
Back-up
battery
12V dc 1,2A

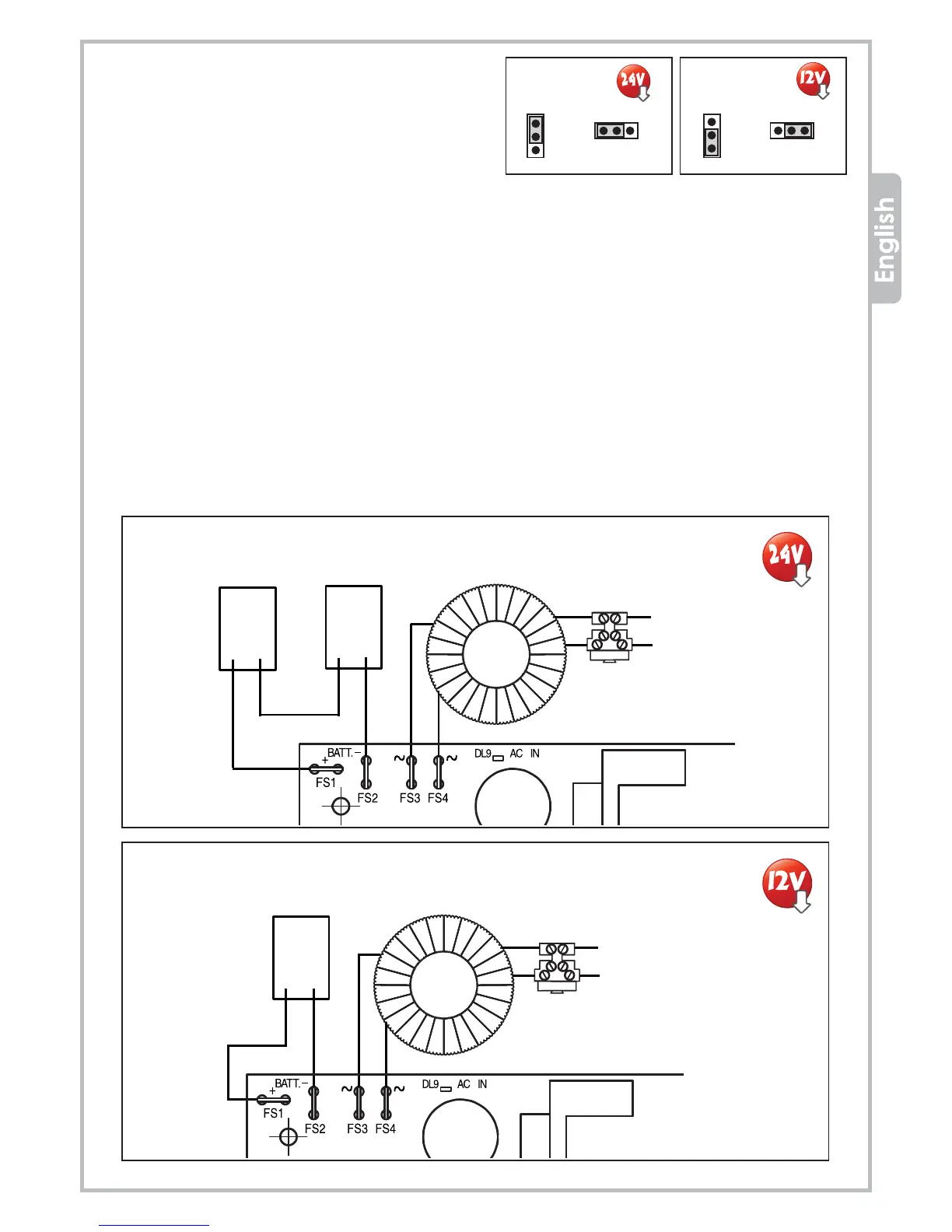

Electrical Mains wiring for motor 24Vdc (detail)
Electrical Mains wiring for motor 12Vdc (detail)
Back-up
battery
12V dc 1,2A
Transformer 230V /12V ac 80VA
230Vac (MAIN)
Fuse 5A
