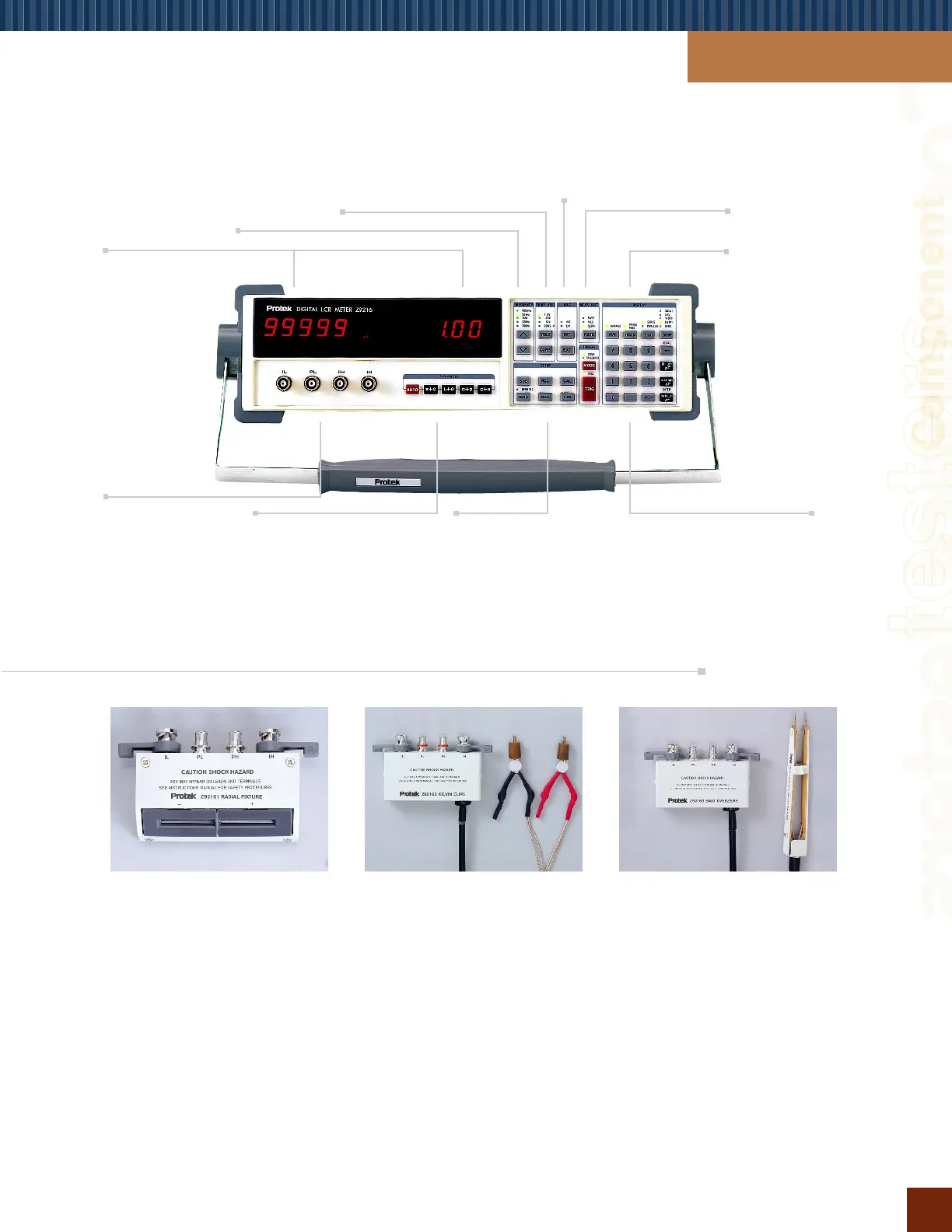

High Accuracy, Wide Range LCR Meter
Z9216
ACCESSORIES
31
The standard accessory supplied with the Z9216. This
unit adapts to the Z9216 input BNC terminals and
facilitates easy measurement of Axial or Radial lead
components.
The Kelvin clips provide a 4-wire connection to
components that have large or odd shaped leads. This
removes any error caused by voltage drops in the
leads.
The SMD tweezers are used to
measure small surface mount or odd
shaped components.
Display
5 digit primary LED Display
for reading component
values
5 digit secondary display for
reading Q, D or R
Frequency
Five measurement
frequencies
(100Hz, 120Hz, 1kHz,
10kHz and 100kHz)
Drive Voltages
4 preset drive voltages
from 0.1 to 1V and
constant voltage output
Bias
Internal or external bias for
measuring capacitors
Meas. Rate
Measurement rates of 2, 10 or 20
measurements per second in
continuous or triggered mode
Display
2 to 10 measurement average
Range hold mode
Series or parallel circuit
models
Display component value,
Deviation, % deviation and Bin
number displays
Parameter entry keys
Output terminals
4-wire output: 2 terminals supply
the drive signal and 2 terminals
for sensing, thereby removing
lead error
Parameter Keys
Auto key, automatic selection of the
appropriate component
Resistance + Q
Inductance + Q
Capacitance + D
Capacitance + R
Setup
Store and recall 9 setups
Binning parameter setup
Calibration performs open and short calibration
Standard calibration
Internal self-tests
Vernier amplitude drive voltages from 0.1 to 1V
in 50mV increments
Setting settling time
Numeric keyboard
For entering measurement
conditions and values.
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
K
Protek Test & Measurement
40 Boroline Road, Allendale, NJ 07401 Tel: 201-760-9898 Fax: 201-760-9888
Website: www.protektest.com E-Mail: sales@protektest.com
