Protek Z9216 - Page 35

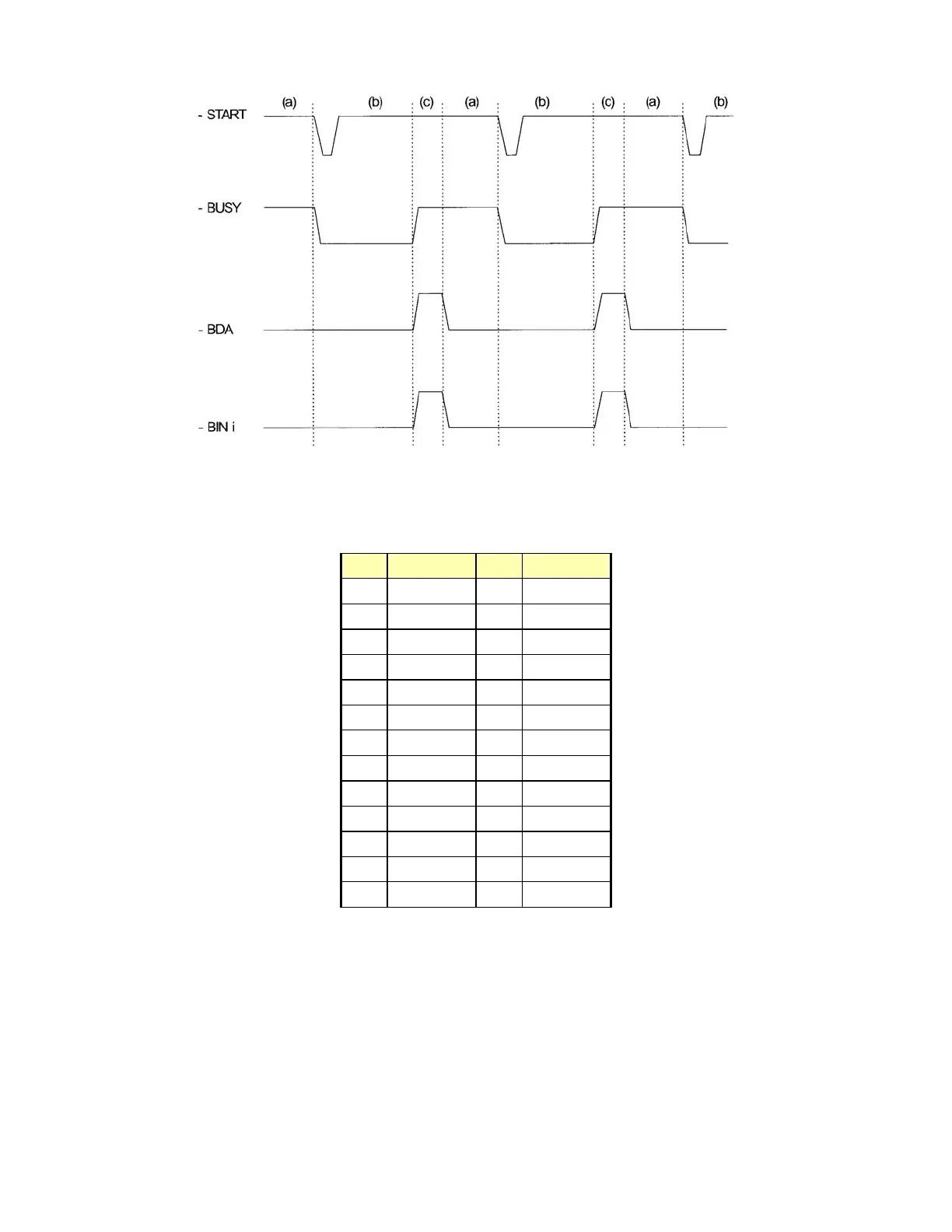

Figure 3-1 - Handler Interface Timing Diagram.
Table 3-4- Pinout for Handler Interface Connector
Pin Signal Pin Signal
1 14
2 15
3 -START 16
4 17
5 18 GND
6 GND 19 +5 supply
7 +5 supply 20 -BDA
8 -BUSY 21 Bin 9
9 Bin 8 22 Bin 7
10 Bin 6 23 Bin 5
11 Bin 4 24 Bin 3
12 Bin 2 25 Bin 1
13 Bin 0
31
