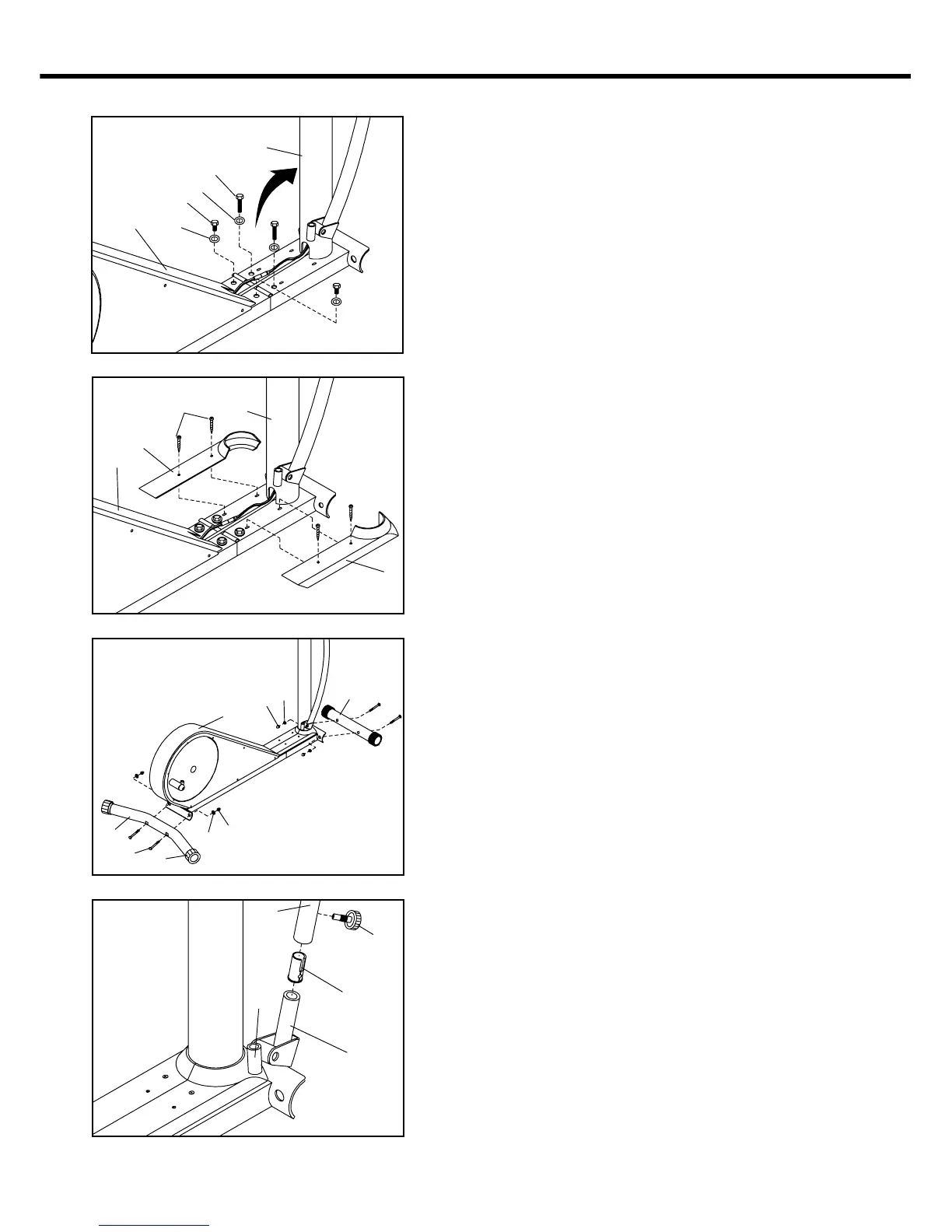

Proteus EEC-1500 - ASSEMBLY; Step 1: Assemble Handlebar Post; Step 2: Assemble Protective Cover; Step 3: Assemble Stabilizer

Step 1 : Assemble handlebar post
Fold up the handlebar post ( 17 ) to the
upright position, fix with bolts ( 34 / 35 )
and washers ( 36 ). Then fully tighten
them with spanner.
Step 2 : Assemble protective cover
Step 3 : Assemble stabilizer
Attach front stabilizer ( 02 ) & rear
stabilizer ( 03 ) to main frame ( 01 ) , fix
with carriage bolts ( 40 ) , washers ( 42 )
and nuts ( 41 ). Then fully tighten them
with spanner.
Step 4 : Assemble adjust tube ( for EEC-5550 )
a. Insert adjust tube ( 52 ) to the
connecting arms ( 13 / 14 ) and fix
with knob ( 54 ).
b. Connecting arms adjust :
Adjust the height of the pedal arm
( 04 / 05 ) by the knob ( 54 ).
Tightened the knob ( 54 ) firmly after
adjustment.
Fix the protective cover ( L )( 37 ) to the
main frame ( 01 )with screw ( 39 ).
Repeat same procedure on protective
cover ( R )( 38 ). Then tighten them
with screwdriver.
ASSEMBLY
- 4 -
17
39
38
37
1
3
40
19
42
41
41
42
1
2
STEP 4
14
54
15
53
52
STEP 3
STEP 2
STEP 1
1
36
34
36
35
17
