Proteus EEC-1500 - Step 5: Assemble Pedal; Step 6: Assemble Handlebar; Step 7: Assemble Cycle Monitor

11
44
43
43
44
5
4
10
15
16
- 5 -

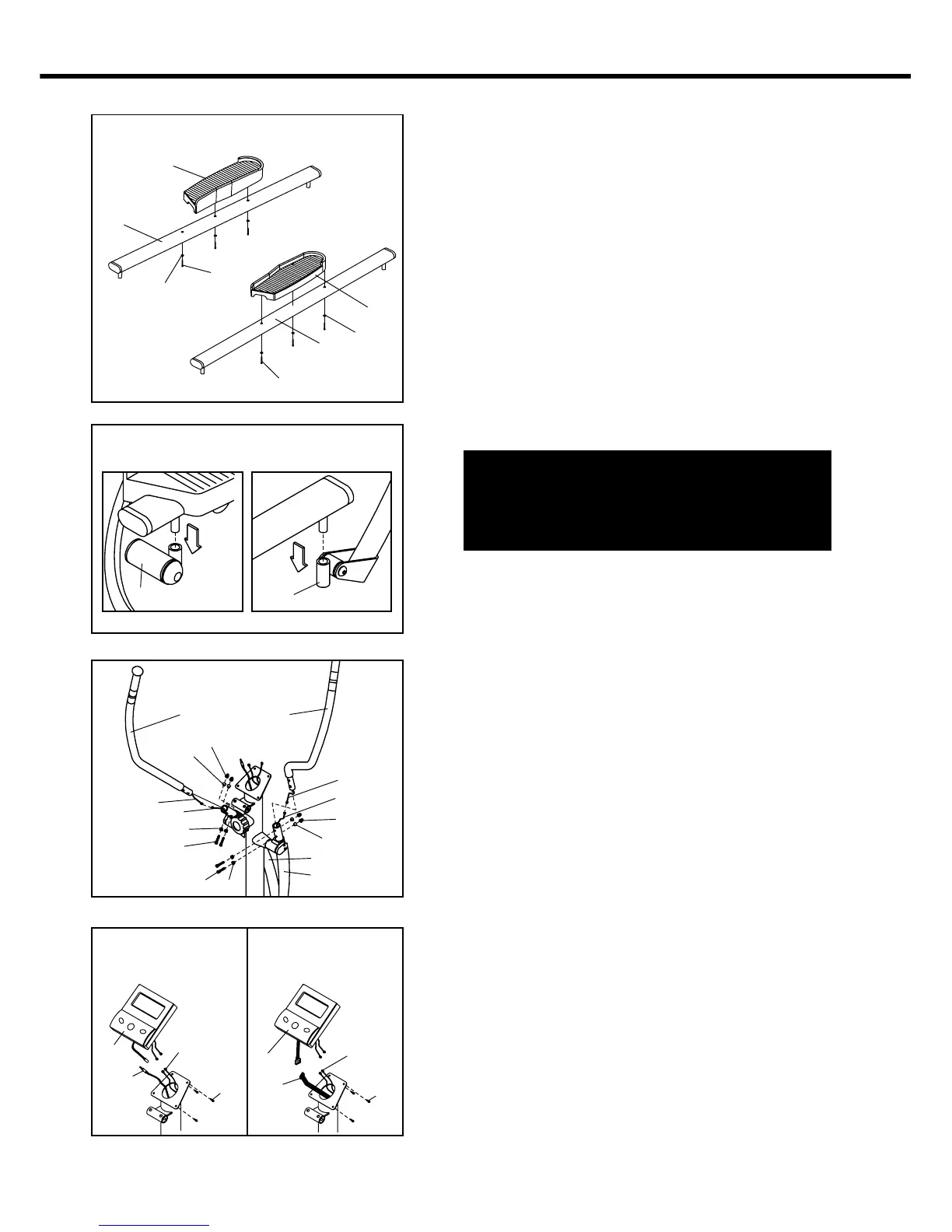

Step 5 : Assemble pedal
a. Fix pedal ( L )( 10 ) to pedal arm
( L )( 04 ) with screws ( 43 ) &
washers ( 44 ), then tighten them with
spanner. Repeat same procedure on
the right pedal then assemble pedal
arm assembly left & right ( 04 / 05 ).
b. Insert the shaft ( at rear side of pedal
arm ) to the cross joint-rear ( 16 )( at
the main frame ) then insert the other
shaft ( at front side of pedal arm ) to
the cross joint-front ( 15 ) at
connecting arms ( 13 / 14 ).
Step 6 : Assemble handlebar
Connect pulse wire ( 28 ) and extension
pulse wire ( 29 ), then insert the
handlebars ( 06 / 07 ) to the connecting
arms ( 13 / 14 ) and fix with bolts ( 46 ),
cone washers ( 48 ) & nuts ( 47 ). Then
fully tighten them with spanner.
Step 7 : Assemble cycle monitor
Connect extension monitor cable ( 26 ) &
extension grip pulse wire ( 29 ) to the
monitor ( 12 ) then fix the monitor to
mounting plate ( located on top of
handlebar post ) with screws ( 49 ). Then
tighten them with screwdriver.
NOTE : THE PEDAL ARMS ARE NOT
FIXED WITH BOLTS. DO NOT
HOLD THE PEDAL ARMS FOR
MOVING THE MACHINE.
NOTE : THE PEDAL ARMS ARE NOT
FIXED WITH BOLTS. DO NOT
HOLD THE PEDAL ARMS FOR
MOVING THE MACHINE.
48
46
46
48
28
29
47
48
47
48
29
28
6
7
STEP 6
STEP 5-b
STEP 5-a
49
49
12
29
26
12
29
26
STEP 7
EEC-1500
EEC-5550
13
14
