prowarm ProTouch Wifi - Installation and Wiring Instructions; Front Panel Removal and Wiring; Final Assembly and Securing

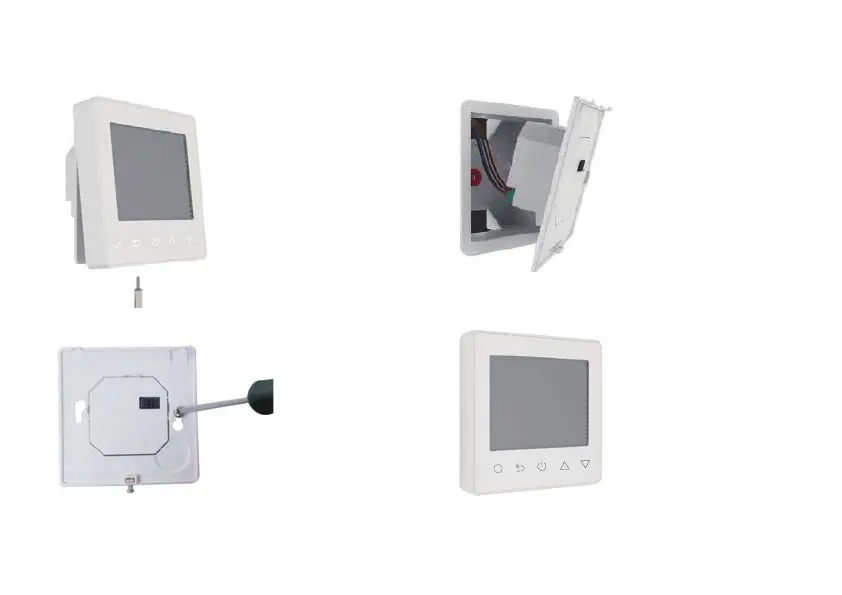

INSTALLATION AND WIRING INSTRUCTIONS
Loosen fixing screw
located in the bottom of
the thermostat to get the
front panel.
Connect the
thermostat
according to the
Wiring Instruction.
Insert the back
panel into wall box
with provided
screws.
Align top part of front
panel and back panel to
fit these two parts. Then
fix them with screw.
NOTE: Thermostat should be mounted in a 35mm deep single gang back box
12
43
