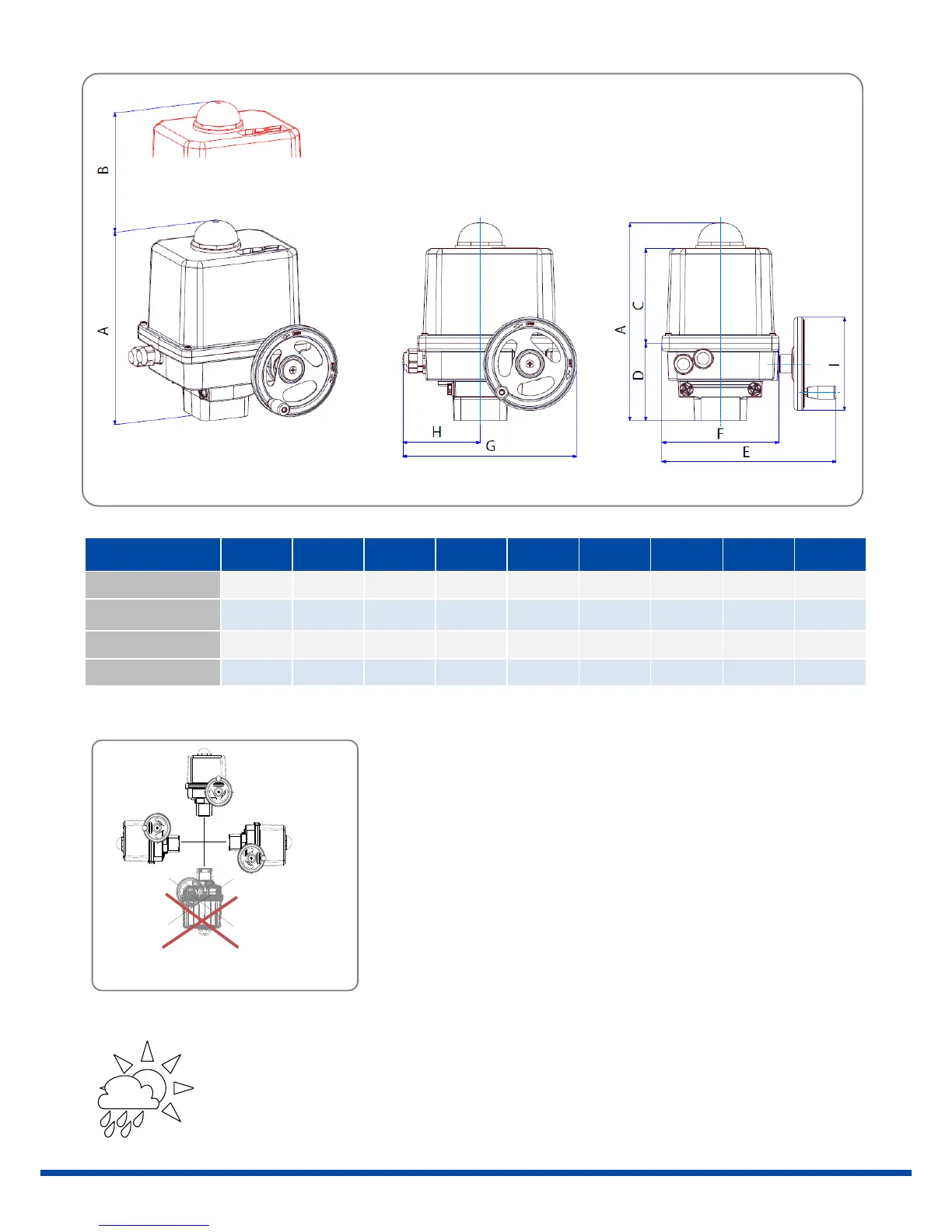

Figure 1: Outside dimensions
4.2 Installation Position
The actuator may be mounted in any desired position
except “cover facing downwards”.
Figure 2: Installation position
Outdoor usage:
When using the actuators in environments with high temperature fluctuations or high humidity, we
recommend using a heating resistor as well as a higher enclosure rating (optional accessories).
Actuator type
A
B
C
D
E
F
G
H
I
PSQ 103 AMS
267
161
128
105
237
158
241
111
125
PSQ 203 AMS
355
228
194
123
307
185
289
109
200
PSQ 503/703 AMS
416
240
198
172
358
235
337
128
200
PSQ 1003 AMS
416
240
198
172
289
235
362
128
250
