The handwheel does allow comfortable manual operation in case of power failure or for commissioning. The
handwheel is idle when the motor is operating the actuator, but engaged in any position without clutching or
declutching.
Electrical wiring is done to a terminal block under the actuator cover.
6. Manual operation

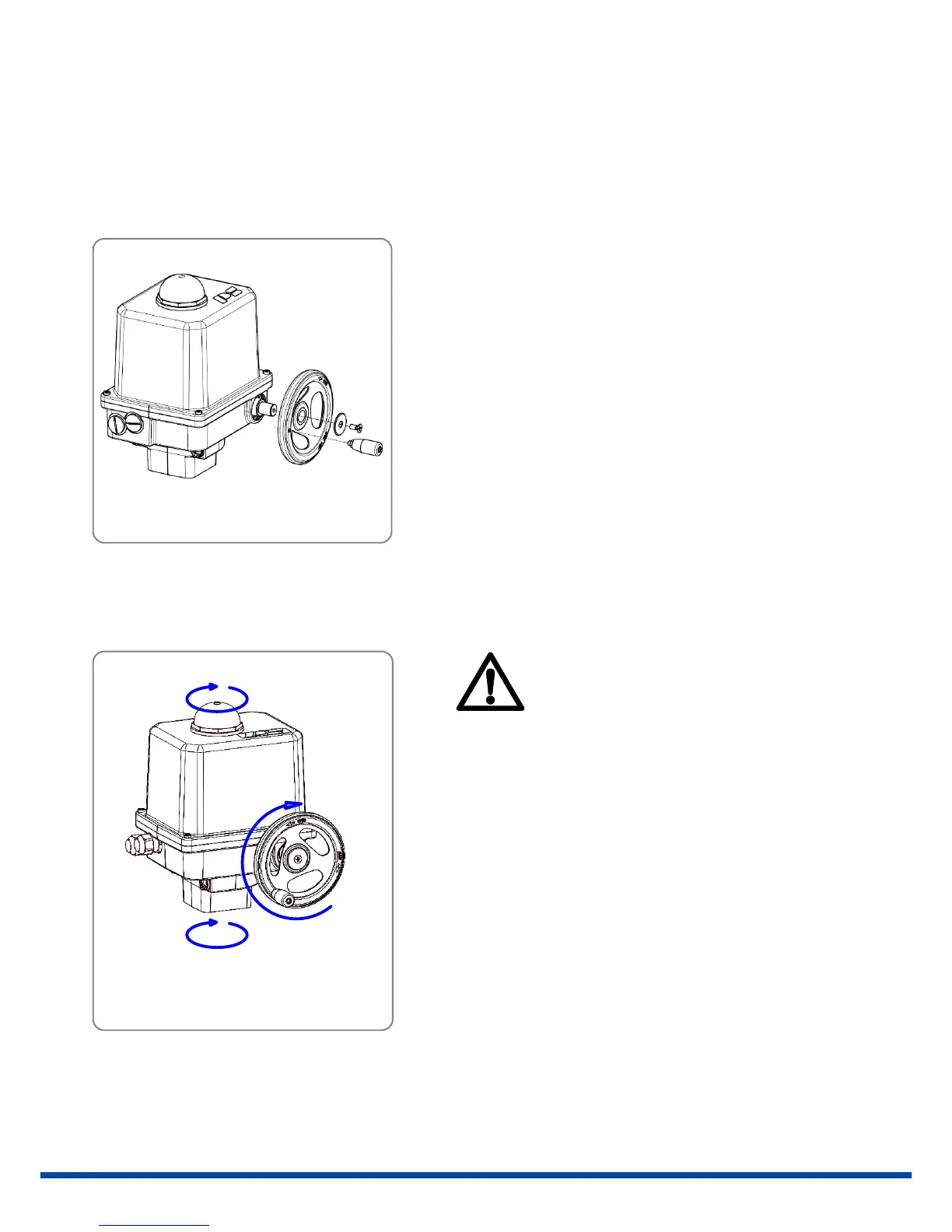

Figure 3: Handwheel assembly
The handwheel does provide manual operation in case of power failure or commissioning. It is idle when the motor
is operating and always ready for operation without clutching or declutching.
Figure 4: Manual operation
The actuators are supplied with a loosely enclosed
handwheel. Mount the handwheel and the crank
according to figure 3.
Do not exceed the adjusted electrical
stroke limits by handwheel.
The mechanical limits must be set
accordingly.
Failure to observe this warning will change
the electrical feedback setting!
