PS Engineering PAR200A User Manual

PS Engineering Inc. ®
PAR200A Audio Selector Panel, COM radio Controller and Intercom System
Installation and Operator’s Manual
200-228-0200 Appendix B Rev. 4, DEC. 2017

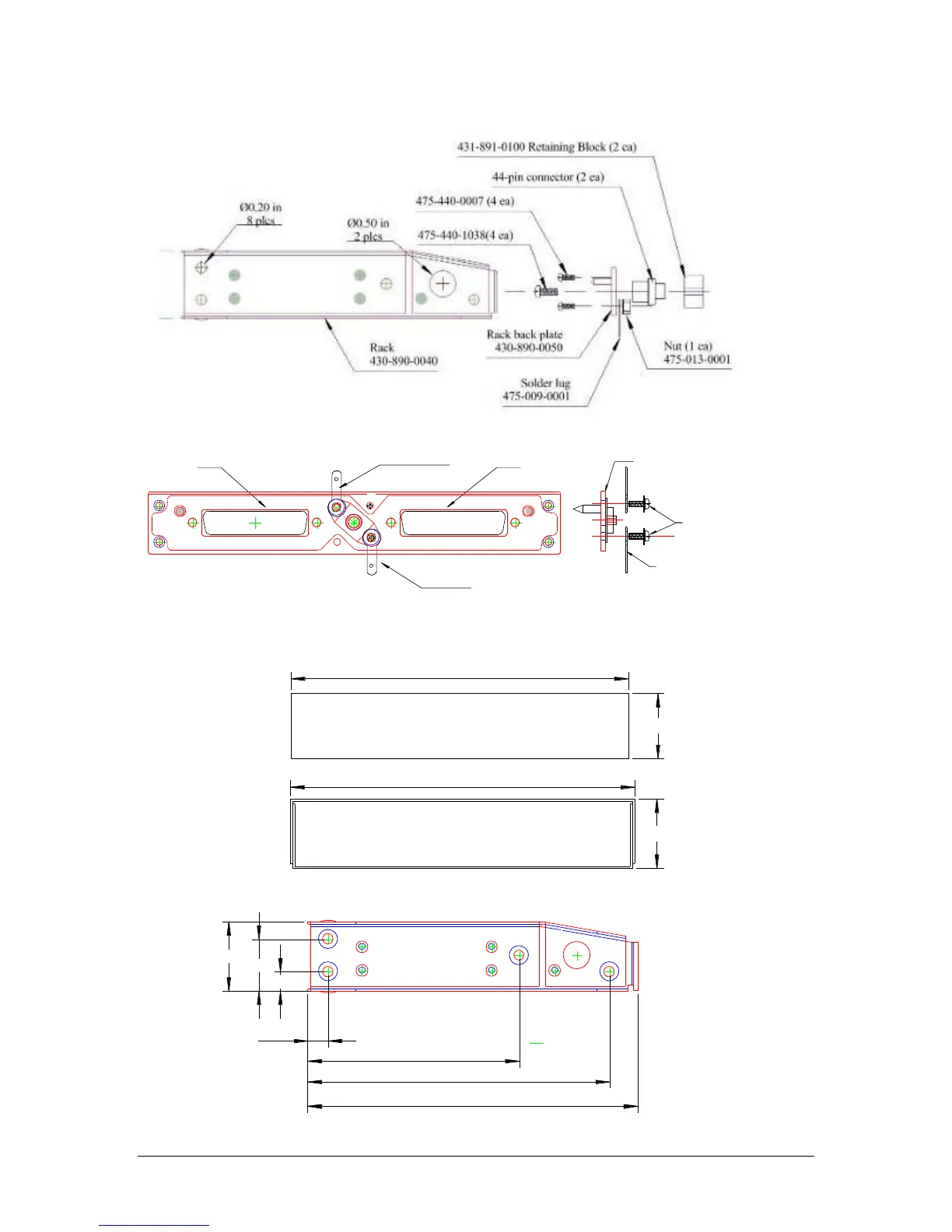

Appendix B – PAR200A Installation Drawings
J2 J1
Viewed from Back
15
30
44
1
16
31
15
30
44
1
16
31
Ground Lug
Ground Lug
475-440-0001 (x2)
Back plate assy
475-009-0001
ground lug (x2)
475-440-0001 (x2)
Screw w/washer
Ground lug detail
Rear plate detail (not to scale)
0.38 in
3.88 in
5.53 in
6.04 in
0.36 in
0.96 in
1.28 in
6.31 in
1.28 in
Rack Installation from Front of Instrument Panel
6.18 in
1.20 in
Rack Installation from Rear of Instrument Panel
Max Panel Thickness 1/8"

PS Engineering PAR200A Specifications

General

Brand	PS Engineering
Model	PAR200A
Category	Avionics Display
Language	English
