buttons for more than one second. For units with serial number W04747 and below, an internal modifica-
tion can be made that will allow the PMA8000BT to provide sidetone. Contact PS Engineering for more
information.
NOTE
Unauthorized use of unapproved cellular telephone devices in aircraft is subject to FCC enforcement ac-
tion, which may include a $10,000 fine per incident.
FCC Regulation 47 CFR § 22.925 Prohibition on airborne operation of cellular telephones .
Cellular telephones installed in or carried aboard airplanes, balloons or any other type of aircraft must not
be operated while such aircraft are airborne (not touching the ground). When any aircraft leaves the
ground, all cellular telephones on board that aircraft must be turned off.
PS Engineering, Inc. does not endorse using unapproved cellular telephone equipment in flight, and takes
no responsibility for the user’s action.
PS Engineering does not guarantee compatibility with personal cellular telephones. For a list of phones
that have been tested, visit http://www.ps-engineering.com/support.
2.4.11 Public Address Mode
By pressing the Mute and SPR pushbuttons at the same time, the PMA8000BT will be placed into public
address (PA) mode. In this mode, the pilot will be talking over the cockpit speaker when he presses his
PTT switch. Copilot will still continue on the selected COM radio.
When the Digital Output is enabled, J2 Pin 19 will go low when in PA mode, providing a logic level that
can be used to incorporate a speaker-switching scheme. This 50 mA circuit (10Ω Z) can control a switch-
ing means such as a relay that would transfer the speaker output amplifier from the cockpit speaker to
drive another cabin speaker. If the PA mode is used with a microphone in proximity to an active cockpit
speaker, feedback might result.
To enable the PA Digital Output located at the rear connector, the internal configuration jumper, J4,
MUST be placed across both pins in the header. This jumper is shipped as open from the factory.
2.4.11.1 Public Address Output Jumper
1. Remove qty. 5 Phillip head screws from the PM8000B. NOTE: THE SCREW IN THE REAR
OF THE PANEL IS A DIFFERENT LENGTH THAN THE OTHER FOUR. YOU MUST
PUT THE SHORTER LENGTH SCREW BACK IN THE SAME LOCATION OR
DAMAGE WILL OCCUR. See Figure #1.

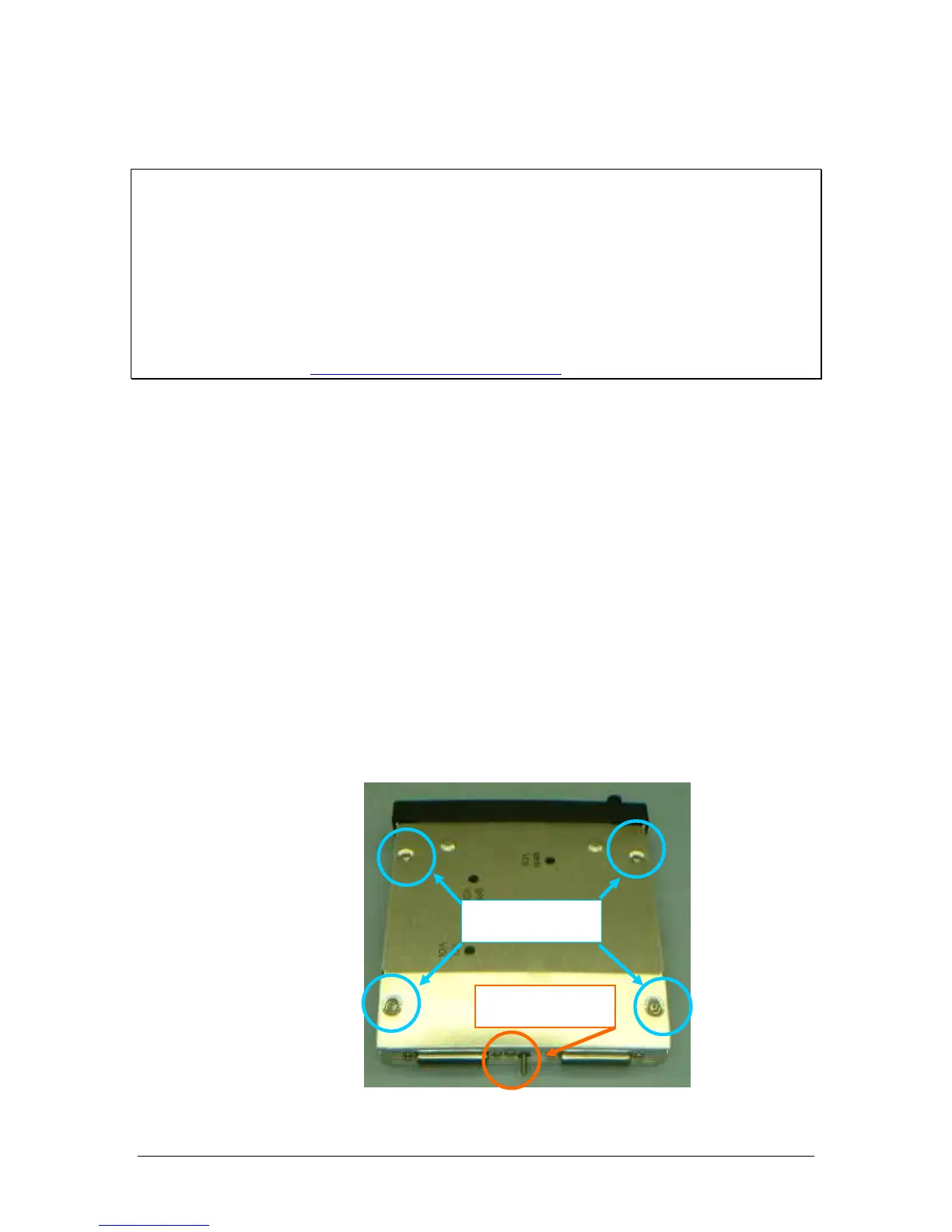

Figure 2-2 Screw Locations
To Next Page
