PS Engineering PMA8000BT User Manual

PS Engineering
PMA8000BT Audio Selector Panel and Intercom System
Installation and Operator’s Manual
200-890-0702 Rev. 1, Oct. 2010

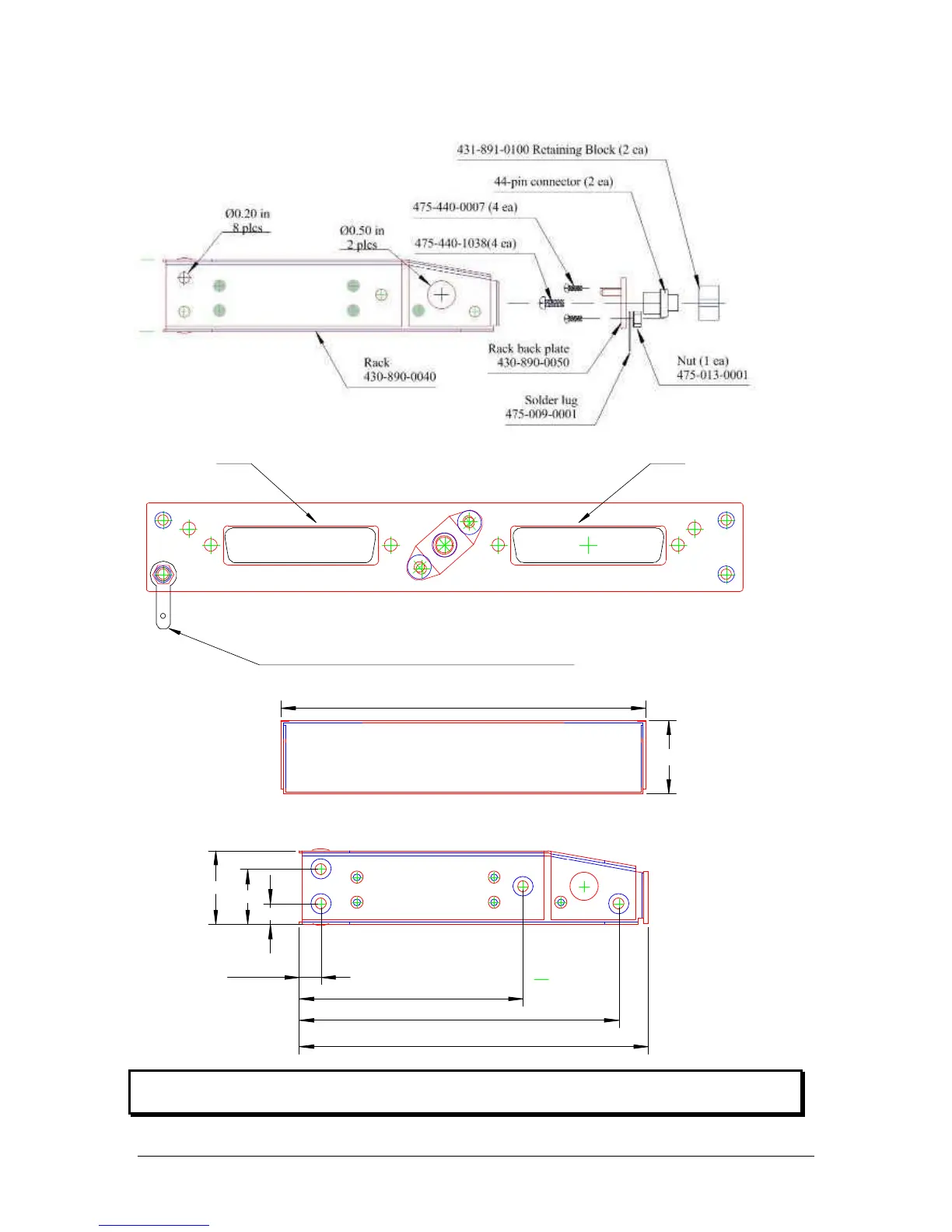

Appendix B – PMA8000 Installation Drawings
J2 J1
Viewed from Back
15
30
44
1
16
31
15
30
44
1
16
31
Solder Lug (mount as convenient)
Rear plate detail (not to scale)
0.37 in
3.87 in
5.53 in
6.04 in
0.36 in
0.96 in
1.28 in
6.31 in
1.28 in
Caut i on: Apply stea dy pr essur e t o th e bezel wh il e screwin g th e un it in to th e t r ay t o
en sur e even seat i ng of th e un it an d con nector s.
