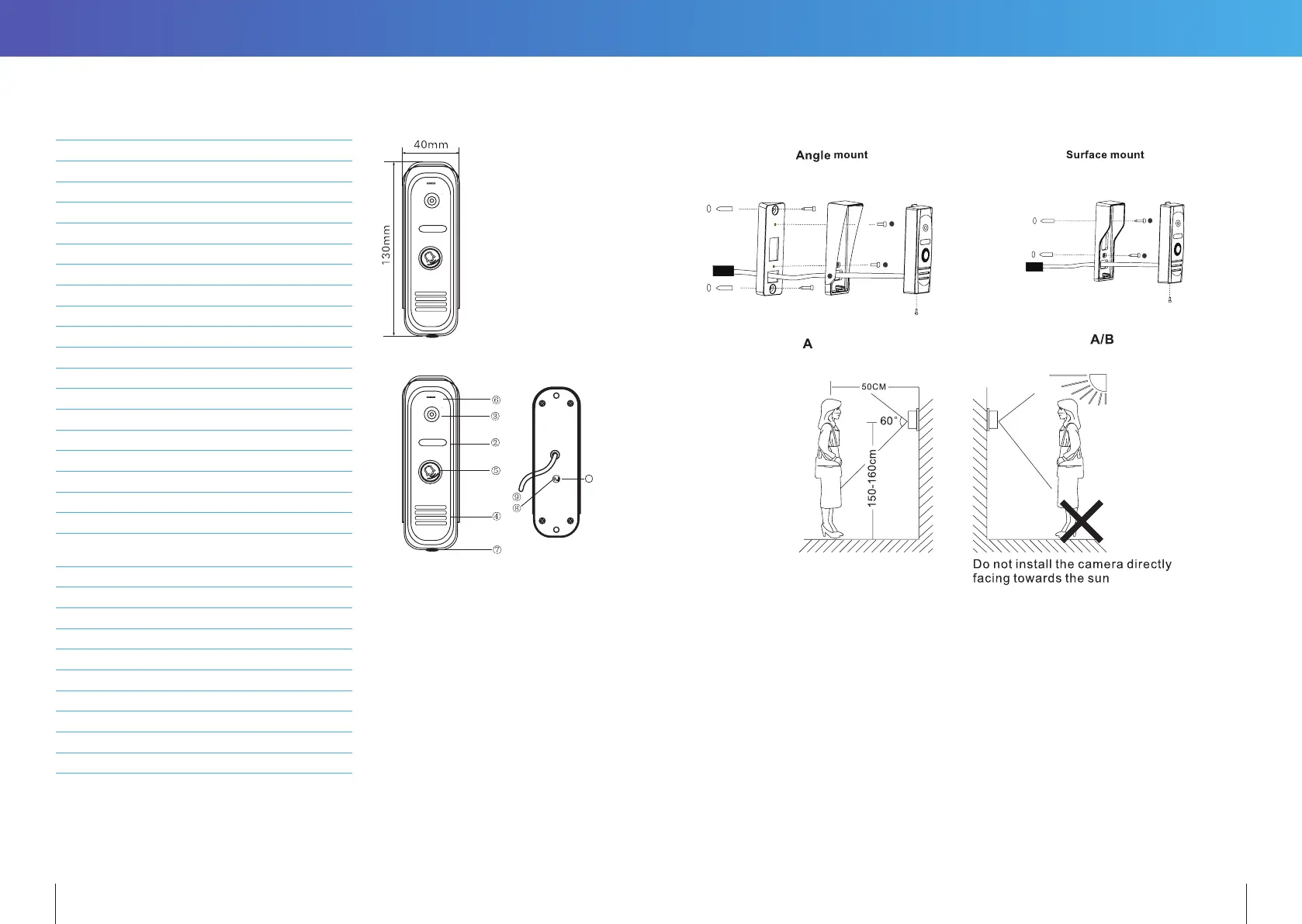

4. INSTALLATION OF DOOR STATION
Door Speaker Volume Adjustment
To adjust the speaker volume of the door camera , remove the weather seal at the back of the
door camera and adjust the regulator with a screwdriver. (Refer to Door Station specification for
regulator location)
NOTE: Default setting of door volume is already set as HIGH. Do not overturn the volume
regulator as it can be damaged easily.
3. DOOR STATION SPECIFICATION
Camera sensor 1/3 inch wide angle CMOS camera
View angle 110°
Definition (Hor.) 960P
LEDs for night IR LEDs(120°)
Power consumption 150mA max.
Power source Supplied from indoor unit
Operation temp. -40~+50ºC
Installation Surface mounted
Lock N/O, N/C Contact (30VDC 2A)
Ingress Proteclion Rating IP65
2 IR LEDS
3 Camera
4 Speaker
5 Call button
6 Microphone
7 Scew Slot
8 Volume Regulator
9 System port
10 Lens Definition Switch
RED 12V DC
WHITE Audio
BLACK Ground
YELLOW Video
ORANGE Relay COM
GREEN Relay N/O
BROWN Relay N/C
BLUE Voltage Camera + Input
GREY Voltage Camera - Input
PURPLE Voltage Lock + Output
4 5
Front of Surface mount
camera INT17DS
10
