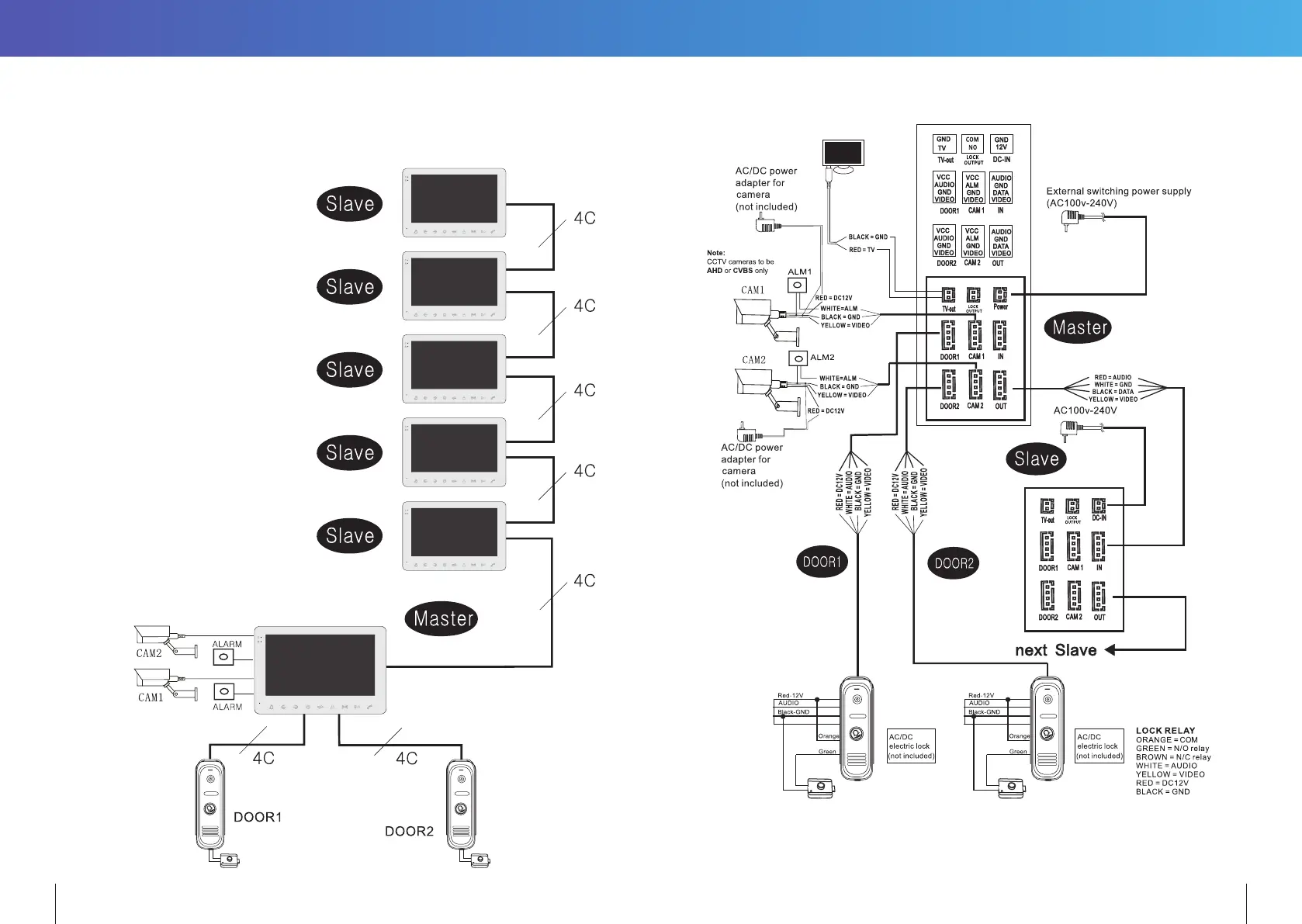

8. WIRING DIAGRAM
First monitor must be set as - MASTER.
All other monitors must be set as
SLAVE. This can be done in the
SETTINGS menu.
MONITOR ID SETTING
Master= 01, Slave= 02 to 06
Note: HD Monitor can accept AHD or
CVBS - analog signals. If using
HD monitor with CVBS analog
door station, you must reboot the
monitor from the menu system
after connecting the camera.
10 11
*The first monitor is the MASTER monitor and ID must be set as Device 01. All other monitors are SLAVES and must be
set as Device 02 to 06. To program the device ID go to MODE section.*
Electric lock
(Door strike)
Electric lock
(Door strike)
