LCDM-1000
38
4. Operating the
LCDM
-1000
I.
S
ETUP
1) Start
the test program “LCDMTP”
2) Maintain default value like be
low.
(If you
need to choos
e
another port, che
ck the
other
port n
um
ber
)
3) Press
“OK”
button

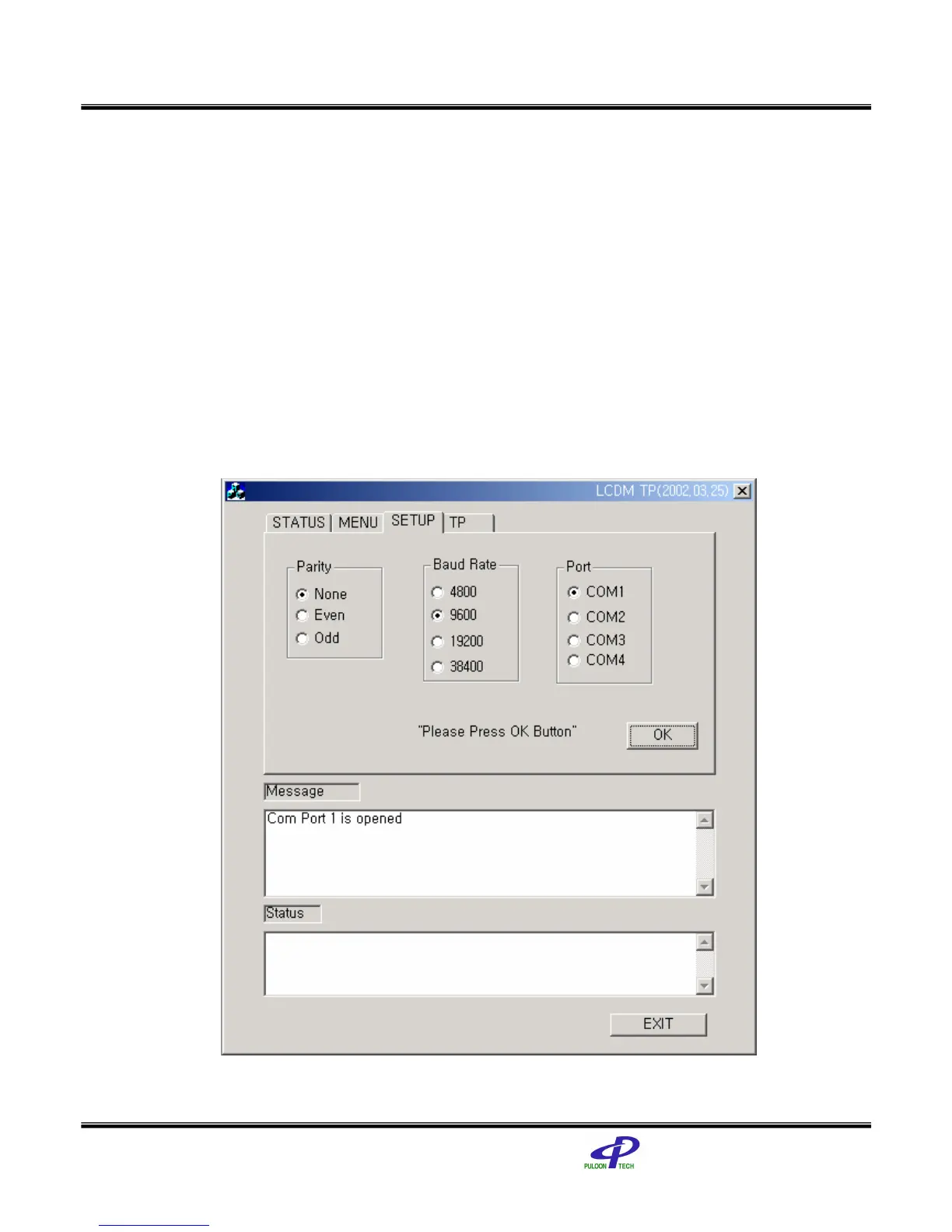

< Fig 1 : SETUP
PAGE >
38
