ASSEMBLY
Parts needed - Support leg & M8 screw (2) and 2 nuts.
Raise the front end of the generator high enough to gain access to the bottom of the frame. Securely position props
underneath to support.
Line up holes on the support leg bracket to the holes on the front of the generator frame.
Attach the support leg using M8 screws (2) and nuts.
Installing Support Leg (See fig 2)
Parts needed - 2 wheels, 2 axles, 2 hair pins, and 2 washers.
Raise or tilt generator so you can slide the wheel axle pin into the wheel, the washer, the wheel mounting hole located
on the side of the frame.
Secure the wheel assembly by reinserting a hair pin through hole at the end of the wheel axle and pressing until it locks
into place.
Repeat process on the other side of the generator to install the second wheel.

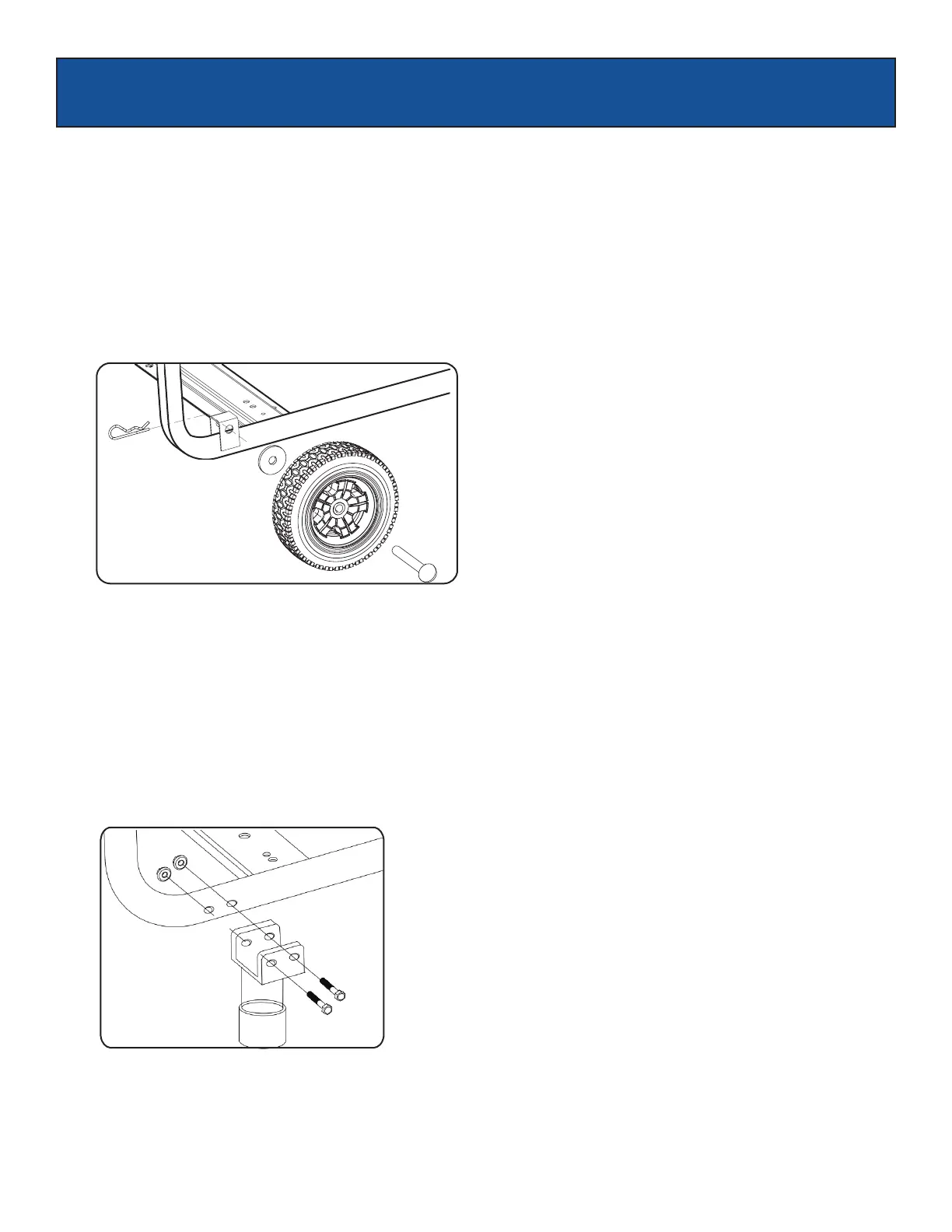

Attaching Wheels (See fig 1)
Fig 1
Fig 2
