Setup
Folding or unfolding the handle improperly can
damage the cables, causing an unsafe operating
condition.
Product Specification
Side Discharge Installation
1. Insert bolts into the deck and side discharge hole with
2 x M6 x20 flange bolts and fasten it with 2 x M6 screw
nuts.
Fig. 5
Component
Rated Speed
Displacement
Cutting Width
Height Adjustment
Wheels
Weight
Safety & Instruction Decals
Important: Safety & instruction decals are located near
areas of potential DANGER. Replace damaged decals.
1. WARNING: Read the Operator’s Manual.
2. Thrown Object Hazard: Keep bystanders a safe distance
from the mower.
3. Cutting/Dismemberment Hazard of Hand or Foot, Mower
Blade: Disconnect the spark plug wire and read the
instructions before servicing or performing maintenance.
4. Cutting/Dismemberment Hazard of Hand or Foot, Mower
Blade: Stay away from all moving parts and keep all
guards and shields in place.
5. Cutting/Dismemberment Hazard of Hand or Foot, Mower
Blade: Do not mow up and down slopes, only mow
across; stop the mower and engine, pick up debris before
operating; look behind and down before reversing.
· Do not pinch or bend the cables when folding or
unfolding
the handle.
· If a cable is damaged, contact an Authorized Service
Center by calling 1-877-528-3772.
Specification
2800RPM
150cc
20”
Toolless Height Adjustment
7” Front 7” Rear
lbs
3
Fig. 1
Fig. 3

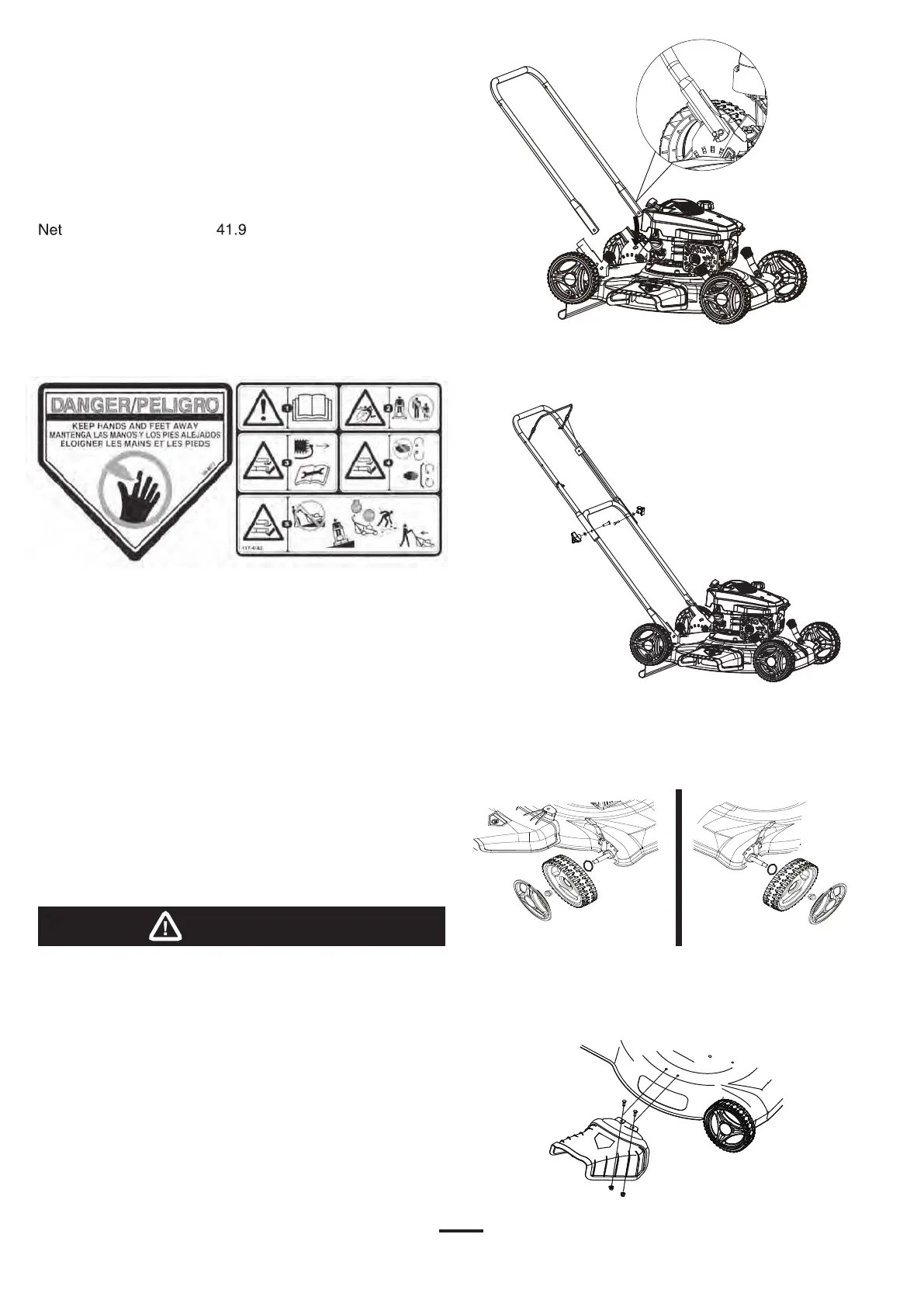

Handle Installation
1. Align lower handle section with rear bracket pins, then
insert cotter pins to secure.
.
2. Position the upper mower handle to match the lower
handle pre-drilled holes. Insert the bolt with a washer and
handle knobs. Hand tighten to secure the handle.
1. Install the washer wheels and nuts onto the
bolts. Fig. 3
2. Then place wheel cover by tapping it in. Fig. 4
Fig. 4
Fig. 5
Fig. 2
Wheel Installation
WARNING
flange
