Pure Humidifier ES Series Installation Instructions

TM

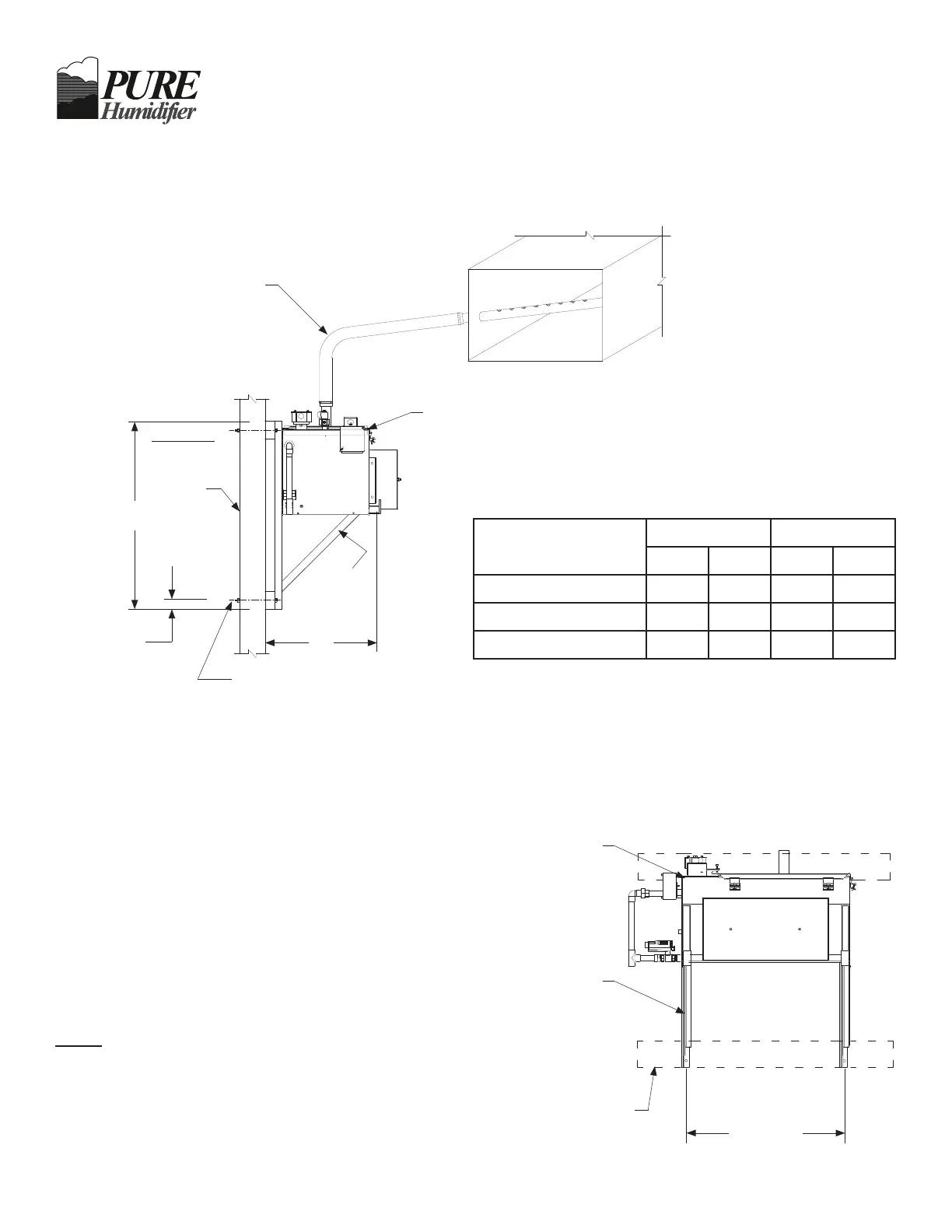

Mounting Applications
Wall Brackets
Model
Dim. “A” Dim. “B”
inches cm inches cm
ES-3 thru ES-19.5 30.50 77.5 16.75 42.6
ES-22 thru ES-63 30.50 77.5 16.75 42.6
ES-66 thru ES-102 34.75 88.3 21.00 53.3
NOTES:
1. Secure brackets to wall support studs. Attachment bolts must
be secured throught he wall stud.
2. A cross support (by others) may be required to span between
the wall studs.
3. Reference the humidifi er schedule to verify which injection tube
system is to be provided.
Optional Flexible Hose Kit
(for remote mounting of
humidifi er injection tube)
Typical PURE Humidifi er
ES Series Humidifi er
“B”
Secure brackets to the wall with
3/8”-16 UNC bolts through the
wall. See Note 4.
1.0” (2.5 cm)
Typical both
ends
“A”
Wall
Stud
Front View
Wall
Bracket
See Note #1
Cross Support (by
others) See Note #2
1 1/4” x 1 1/4” x 1/4” Angle
Iron Wall Brackets (Painted
by PURE Humidifi er Co.)
Typical 2
Typical PURE Humidifi er
ES Series Humidifi er
9
