Mounting Location Considerations
Install in a location where the ambient air temperature is between 40°F - 100°F (4.4°C - 37.8°C) and relative humidity between 0% - 90%
and non-condensing.
Install in a location where there is easy access to a water supply, electrical supply, and open sanitary drain.
Install as close as possible to the steam distribution grid.
Clearances shown are minimum recommendations only. Please consult local and national codes for fi nal installation location.
Do not install where humidifi er operational noise will be a nuisance.
Allow enough room for proper water seal depths.
Do not install above any critical processes, equipment, or locations in case of a water leak.
Do not install near variable frequency drives, electromagnetic equipment, or motors.
SCR RELAY CLEARANCE NOTE
When SCR modulating control is supplied on a non-factory mounted control panel you will need to leave 12” clearance on the
sides of the panels where the SCR heat sinks are located.

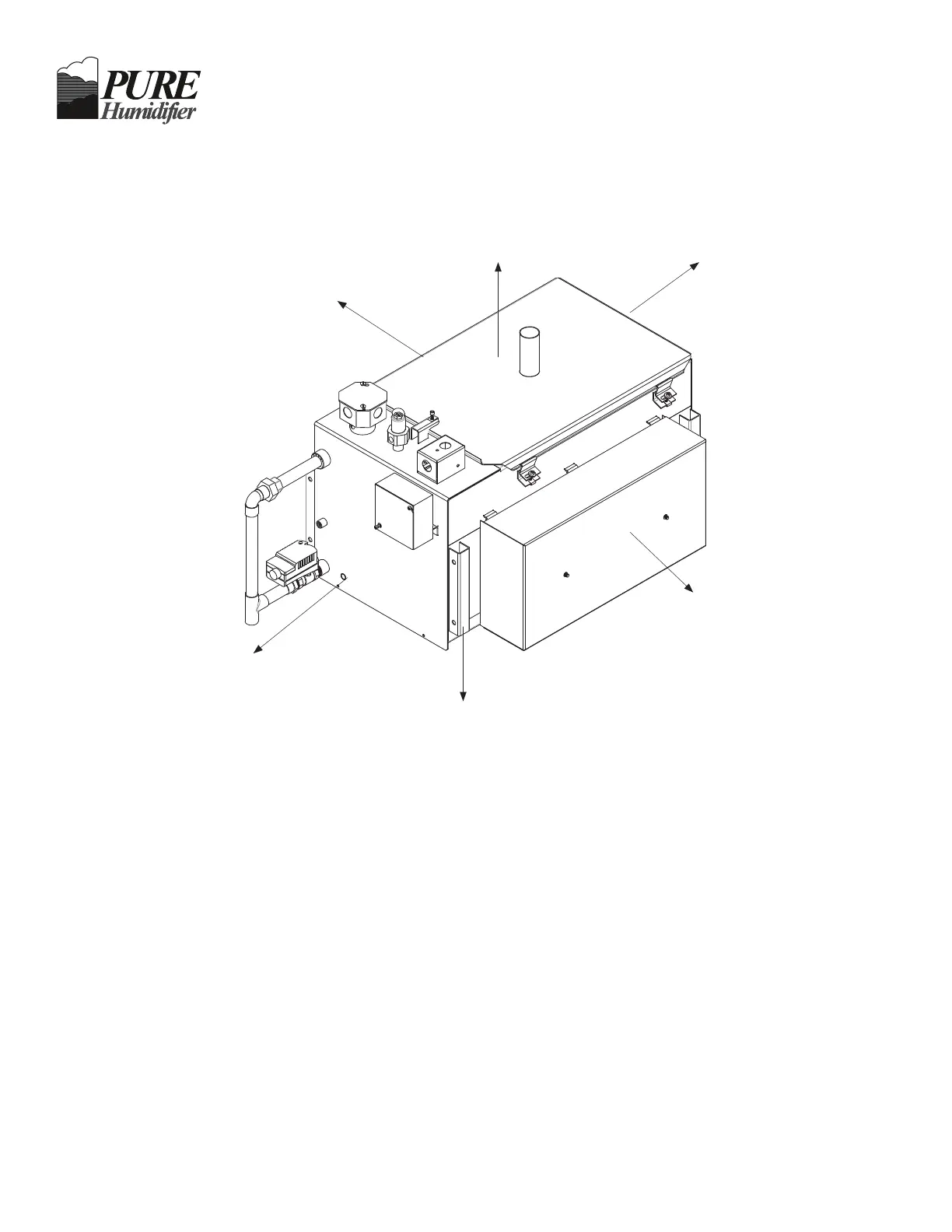

Clearances & Mounting
Considerations
ES-3 thru ES-19.5: 20” (50.8 cm)
ES-22 thru ES-63: 20” (50.8 cm)
ES-66 thru ES-102: 24” (61.0 cm)
24”
(61 cm)
6”
(15.2 cm)
12”
(30.5 cm)
6”
(15.2 cm)
36” (91.4 cm) with factory mounted
control panel
6” (15.2 cm) without factory mounted
control panel
