Pure Humidifier ES Series Installation Instructions

TM

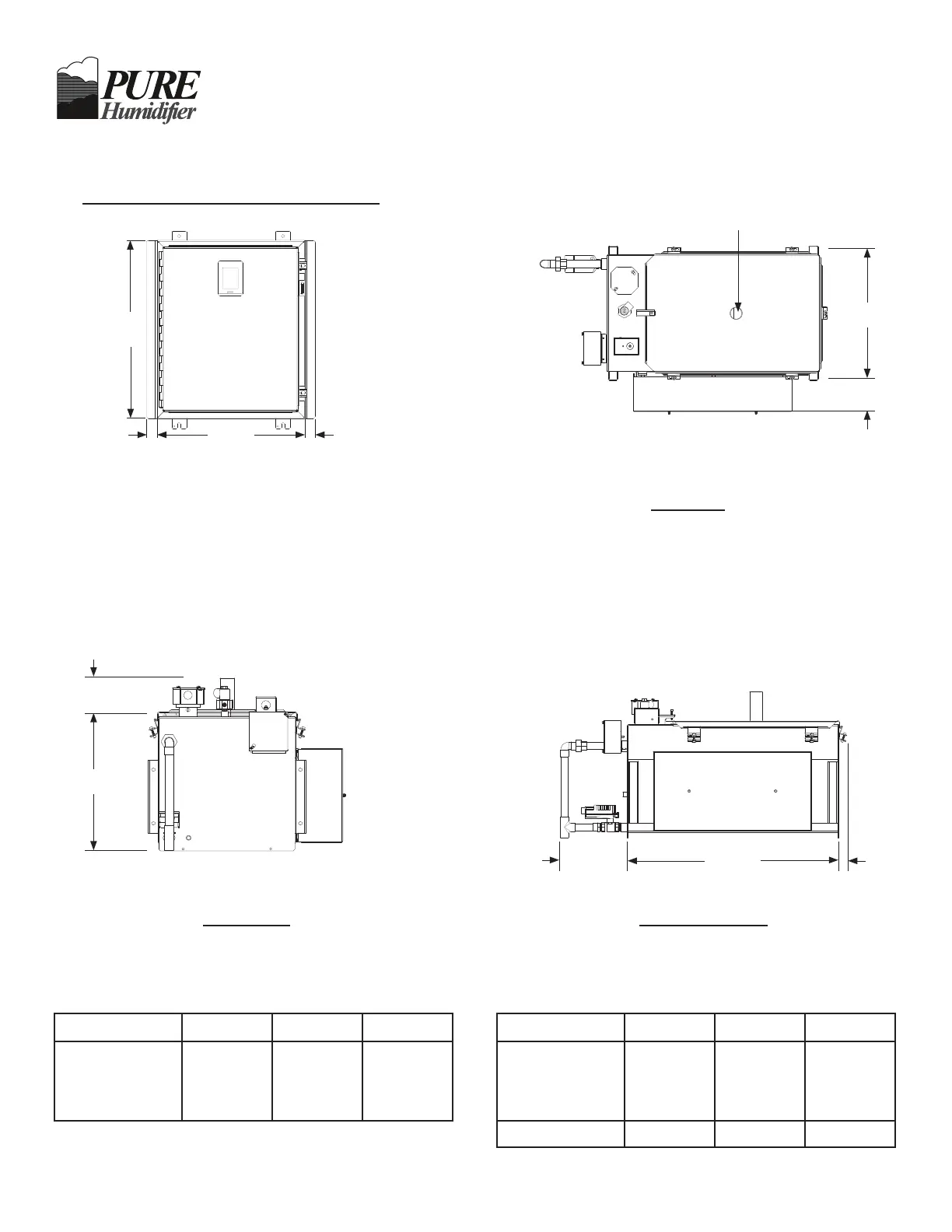

Dimensions
Model Number Dim. “A” Dim. “B” Dim. “C”
ES-3 thru ES-19.5 17.50” (44.5) 14.00” (35.6) 13.75” (34.9)
ES-22 thru ES-63 25.50” (64.8) 14.00” (35.6) 13.75” (34.9)
ES-66 thru ES-102 34.00” (86.4) 18.25” (46.4) 13.75” (34.9)
Unit Dimensions in inches (cm)
Model Number Dim. “D” Dim. “E” Dim. “F”
ES-3 thru ES-19.5 14.00” (35.6) 16.00” (40.6) 6.00” (15.2)
ES-22 thru ES-63 20.00” (50.8) 20.00” (50.8) 7.00” (17.8)
ES-66 thru ES-102 20.00” (50.8) 24.00” (61.0) 7.00” (17.8)
ES-* 24.00” (61.0) 30.00” (76.2) 7.00” (17.8)
Control Cabinet Dimensions in inches (cm)
*Control panel for use with units having 123 amps or higher
1. Door has been removed from the
drawing for clarity.
2. Control cabinet is shipped loose for
fi eld mounting unless optional factory
mounting is specifi ed.
3. Dimension “F” = Control cabinet depth.
4. Heatsinks located on both sides
of cabinet for all units except ES-3
through ES-19.5.
Steam Outlet Connection
(size and qty will vary w/application
“A”
Right Side View
NEMA-12 Humidifi er Control Cabinet
(reference control cabinet notes)
“E”
“D”
Front View
Top View
“B”
“C”
3.87”
(9.8)
1.04”
(2.6)
9”
(22.9)
3.625”
(9.21)
1.39”
(3.53 cm)
1.39”
(3.53 cm)
6
