7
MENU 500
PRESS AND HOLD
SIMULTANEOUSLY FOR
3 SECONDS UNTIL MENU
APPEARS

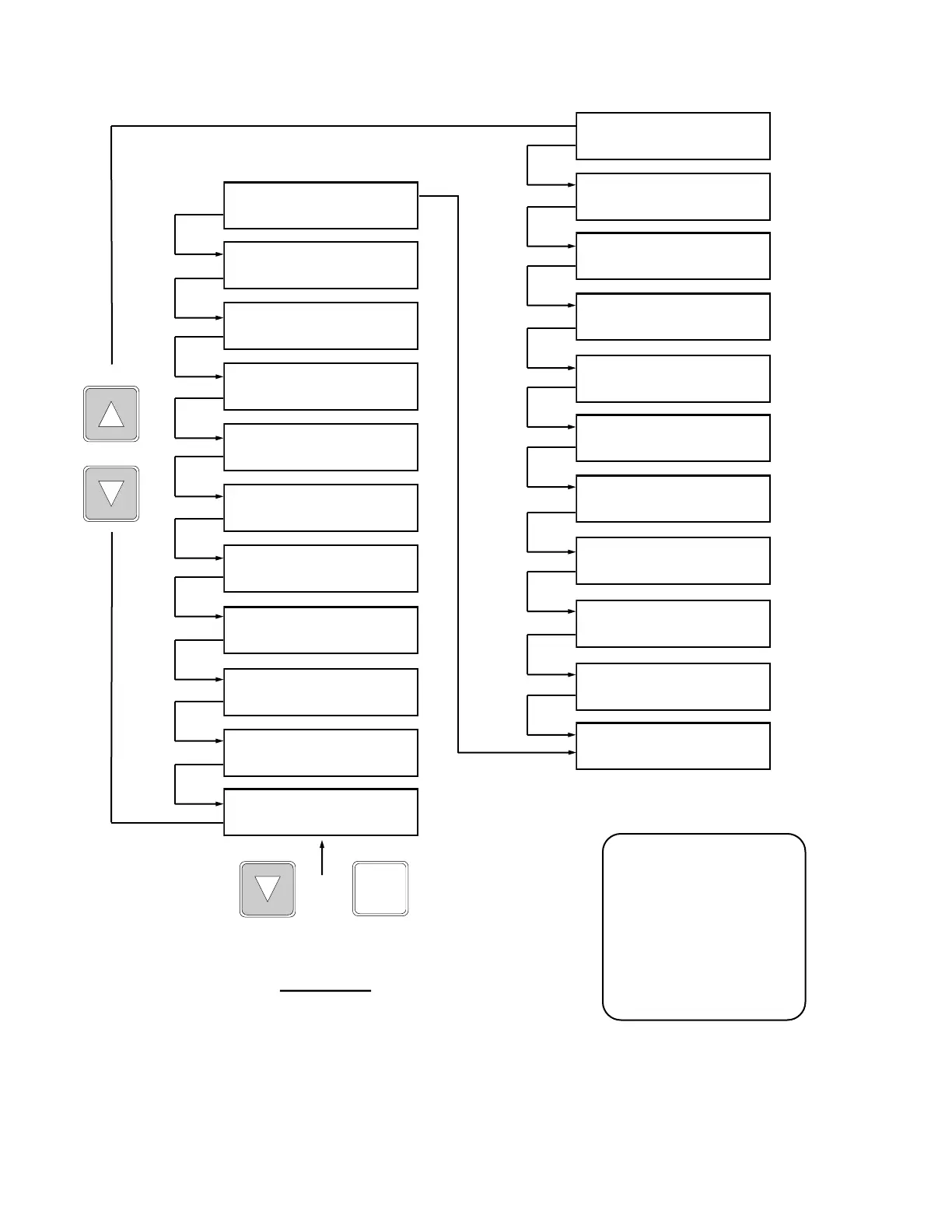

MENU 500 - INSTALLATION
ENTER
and
200 300
Note:
This is a complete listing of all
the displays and menu prompts.
Not all displays and menu
prompts will appear on your
controller as they are
dependent on your configuration
number. Prompts shown are
examples only and may not
represent your control settings.
Control Source
Transmitter 502
H2O Sensor
K Type 503
RH Sensor
Voltage 504
RH Process Lo
0.00 Volts 505
RH Process High
10.00 Volts 506
Hi-Limit Sensor
Voltage 508
HL Process Lo
0.0 Volts 509
HL Process Hi
10.0 Volts 510
Air Sensor
Current 511
Air Process Lo
4.00 Milliamps 512
Air Process Hi
20.00 Milliamps 513
Air Range Lo
-30°F 514
Air Range Hi
130°F 515
Air Offset
0°F 516
Process Output
Voltage 517
Out Process Lo
0.00 Volts 518
Out Process Hi
10.00 Volts 519
Dedicated Input
Pnl Lockout 520
Temperature Unit
Fahrenheit 521
Capacity Unit
Lbs/Hr 522
Unit Capacity
40 Lbs/Hr 523
Menu Access
All Menus 525
To Next Page
