Chapter 3. Operational guidelines
3.1 Main Menu User Guide

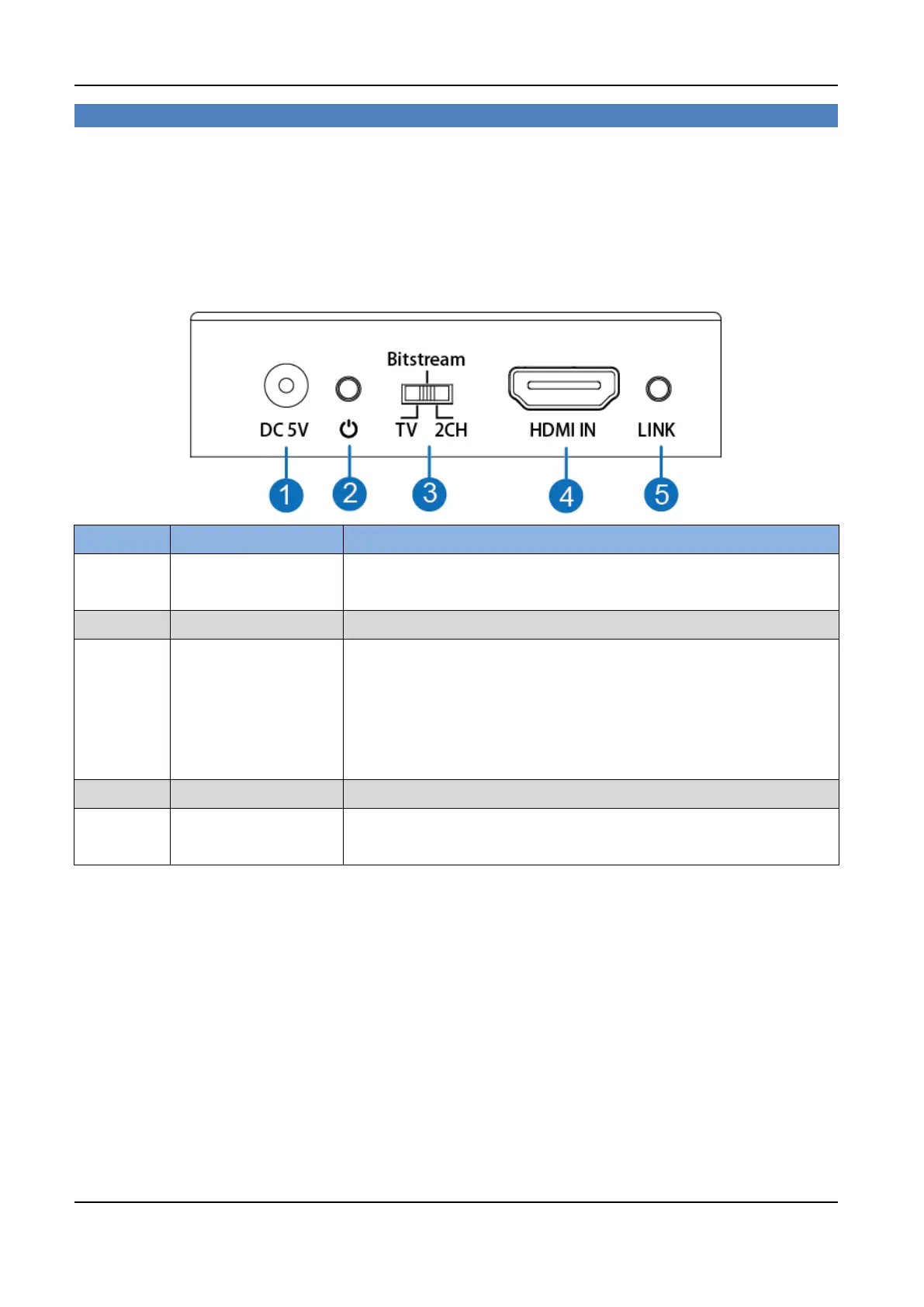

Front Panel
Number
Name
Function description
1
DC 5V
Connect 5V/1A adapter to AC wall outlet for power
supply.
2
Power LED
System power indicator.
3
TV/Bitstream
/2CH
The user allows to select audio format according to
Copy TV, Bitstream or 2CH.
TV: Copy EDID from TV.
Bitstream: Multi channel audio up to six channels.
2CH: 2 channel Stereo PCM.
4
HDMI IN
HDMI video input.
5
Link LED
The LED will illuminate when the HDMI IN port
detects inputsignal.
Rear Panel
