Normal Display Cycle
The display changes every two seconds to show a different set of information as shown in
Figures 4-1 and 4-2.

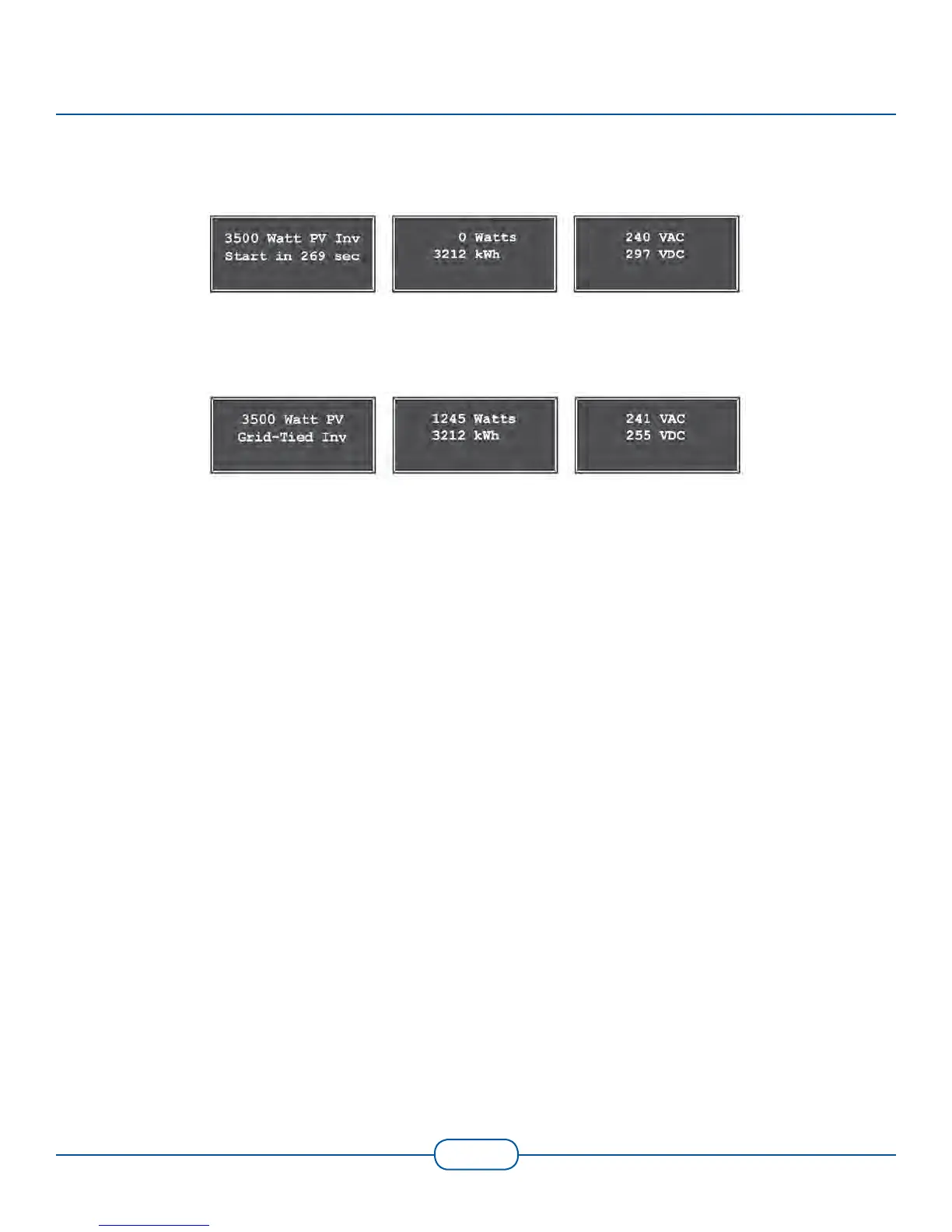

Screen 1 Screen 2 Screen 3
Figure 4-1 Normal Startup Screens
Screen 1 Screen 2 Screen 3
Figure 4-2 Running Screens
If a fault occurs, the display also provides a corresponding fault code. Refer to the
Troubleshooting section for additional information.
