Your new Pyle Pro PWMA Series Wireless Amplifier
system is designed to enable you to have high-
quality, full-range audio amplification where
AC power is unavailable.
Each of these systems incorporates an FM
receiver for receiving signal from the Pyle Pro
PWMA-MIC Wireless Microphone.
In addition, each PWMA-series system accepts
( PWMA-600 or PWMA-3600 ) wired microphone
inputs, They also accomodate other such audio
signal sources as tape players, CD players, VCR
audio outputs or radios,which can be used alone
or simultaneously with the microphones.
TABLE OF CONTENTS
i F eatures and controls, PWMA-600
1 Features and controls, PWMA-3600
1 Setting up for use with a wireless microphone
1 Using the amplifier with a wired microphone
1 Using the amplifier with an auxiliary input source
2 Recharging the batteries
2 A dding an additional speaker (PWMA-3600)
2 Sending the audio to another destination (PWMA-3600)
2 Using the wireless mic PWMA-MIC
2 Inserting/changing the wireless mic batteries
2 Turning on the wireless mic
3 Caring for your Pyle Pro amplifier
3 Replacing the fuse
3 S p e cifications
Please read this manual thoroughly before you attempt to set up and use the amplifier. It
contains a range of installation suggestions as well as instructions to ensure safe usage.
Installed properly, you can expect years of trouble-free service from this product.
<5>pyLI:

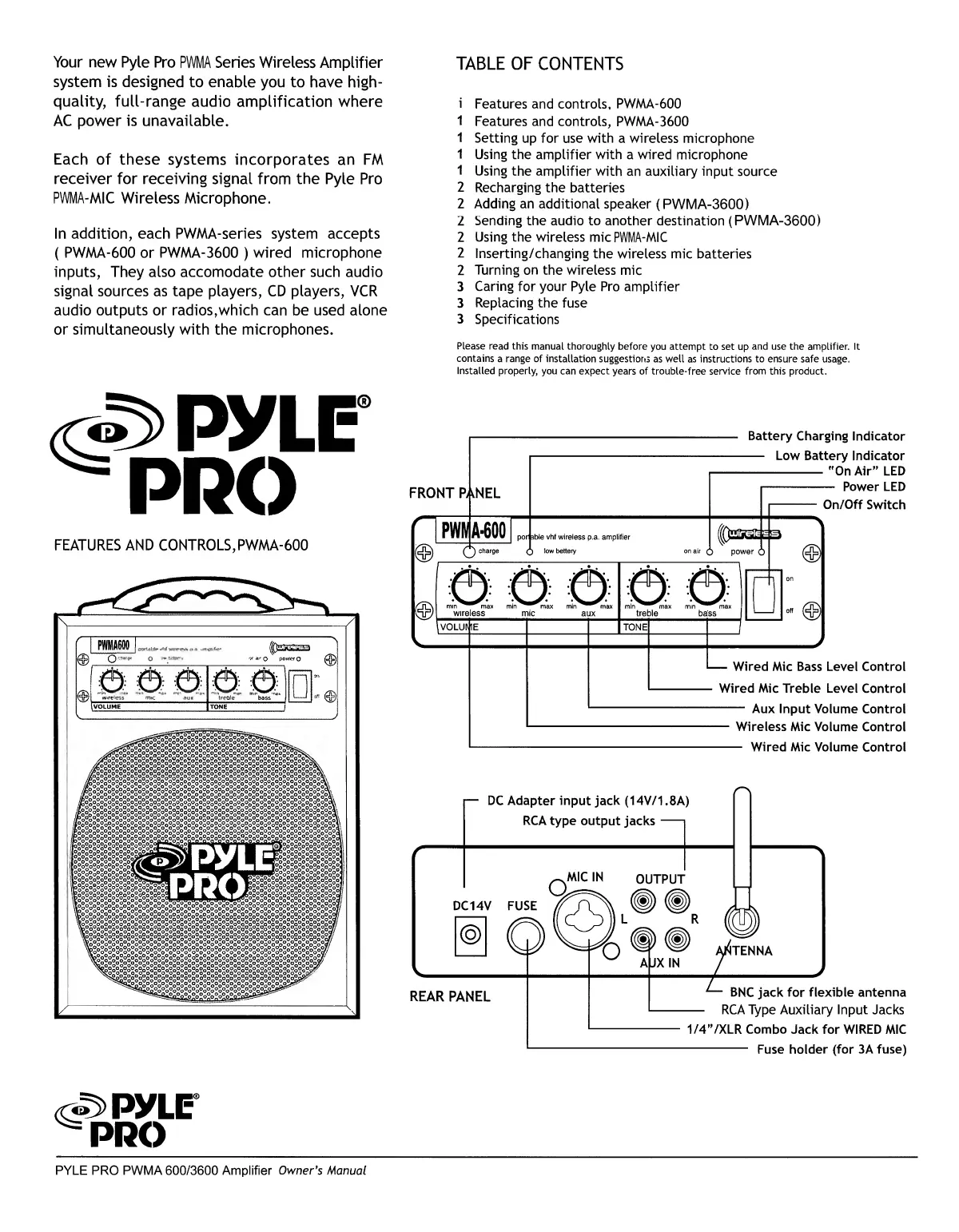

FEATURES AND CONTROLS,PWMA-600
FRONT PANEL
Battery Charging Indicator
- Low Battery Indicator
-"On Air” LED
- Power LED
- On/Off Switch
PWIU
A-600 P „
able vhf wireless p.a. amplifier
_) low bettery on air
(0SI5QE
j power
La
* ©
- Q n
— 1 ©
©
c
^ charge
©
0 0 0
min^^^max min^^^max
wireless mic aux
0 0 Ifr
treble bass
\vOLUI\ IE TONE
/
— Wired Mic Bass Level Control
Wired Mic Treble Level Control
- Aux Input Volume Control
— Wireless Mic Volume Control
- Wired Mic Volume Control
«5>pyLF
= PRO
