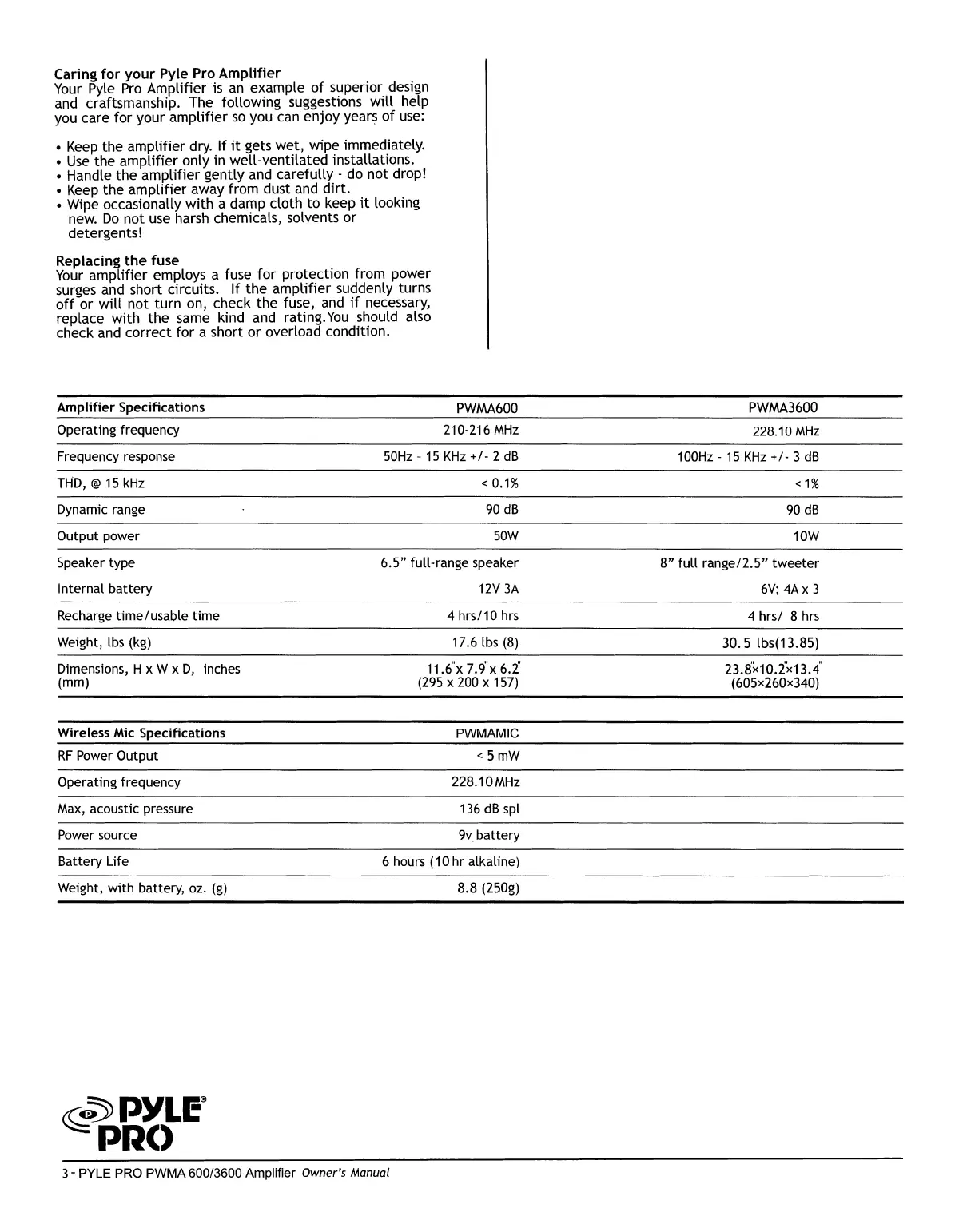

Caring for your Pyle Pro Amplifier
Your Pyle Pro Amplifier is an example of superior design
and craftsmanship. The following suggestions will help
you care for your amplifier so you can enjoy years of use:
• Keep the amplifier dry. If it gets wet, wipe immediately.
• Use the amplifier only in well-ventilated installations.
• Handle the amplifier gently and carefully - do not drop!
• Keep the amplifier away from dust and dirt.
• Wipe occasionally with a damp cloth to keep it looking
new. Do not use harsh chemicals, solvents or
detergents!
Replacing the fuse
Your amplifier employs a fuse for protection from power
surges and short circuits. If the amplifier suddenly turns
off or will not turn on, check the fuse, and if necessary,
replace with the same kind and rating.You should also
check and correct for a short or overload condition.
Amplifier Specifications
PWMA600
PWMA3600
Operating frequency
210-216 MHz
228.10 MHz
Frequency response 50Hz - 15 KHz +/- 2 dB
100Hz- 15 KHz +/ ■ 3 dB
THD, @ 15 kHz
< 0.1%
<1%
Dynamic range 90 dB
90 dB
Output power SOW
10W
Speaker type 6.5” full-range speaker
8” full range/2.5” tweeter
Internal battery
12V 3A
6V; 4Ax 3
Recharge time/usable time
4 hrs/10 hrs
4 hrs/ 8 hrs
Weight, lbs (kg)
17.6 lbs (8)
30.5 lbs(13.85)
Dimensions, HxWxD, inches
11.6 x 7.9 x 6.2
23.8x10.2x13.4"
(mm)
(295x200x157)
(605x260x340)
Wireless Mic Specifications
PWMAMIC
RF Power Output
< 5 mW
Operating frequency
228.10 MHz
Max, acoustic pressure
136 dB spl
Power source 9v battery
Battery Life
6 hours (10 hr alkaline)
Weight, with battery, oz. (g) 8.8 (250g)
<d?3> py LE
^PRO
3 - PYLE PRO PWMA 600/3600 Amplifier Owner’s Manual
