www.PyleUSA.com
3
1. REPEAT NAME AND MODE NAME
The word FOLDER will ash on the screen in FOLDER mode.
When the REPEAT button is pressed, there will be 6 dierent displays depending on the setting you
choose from ALL, NORMAL, SINGLE, FOLDER, RANDOM and BROWSE.
Displays BLUETOOTH in the Bluetooth mode.
Display FM in the FM mode.
2. SOURCE NAME
The display will show U in USB mode, the display will show S when play in SD card mode. Press the
mode button to switch from one input to the other.
3. TRACK NUMBER NAME
Displays track number with the current playing track.
4. TRACK NAME
Displays the le name of the current track.
Displays the folder name of the current folder in the folder mode.
Displays connection status with the Bluetooth mode.
Displays the FM channel number name and channel frequencies in the FM mode.
Displays EQ name in the USB/SD mode.
Displays NO DISK without USB or SD CARD in the USB/SD mode.
5. ELAPSED TIME
Displays the playing time of the current track in minutes, seconds.
9. BASS CONTROL KNOB: Permits you to tailor the low frequencies processed. Turn it in center position, the
sound is unaected (“at”).
10. TREBLE CONTROL KNOB: Permits you to tailor the high frequencies processed. Turn it in center
position, the sound is unaected (“at”).
11. BALANCE KNOB: To adjust the Left channel or Right channel input level.
12. MASTER VOLUME KNOB: Turn this knob to adjust the master volume, increase or decrease the level.
Please turn it in MIN position before turning ON the unit.
13. SUBWOOFER VOLUME KNOB: To adjust the volume of subwoofer output
14. SOURCE SWITCH: Turn this switch to choose the input source to play.
15. 1/8” TRS JACK: Connects to an MP3 player or Ipod with 1/8” TRS plug.

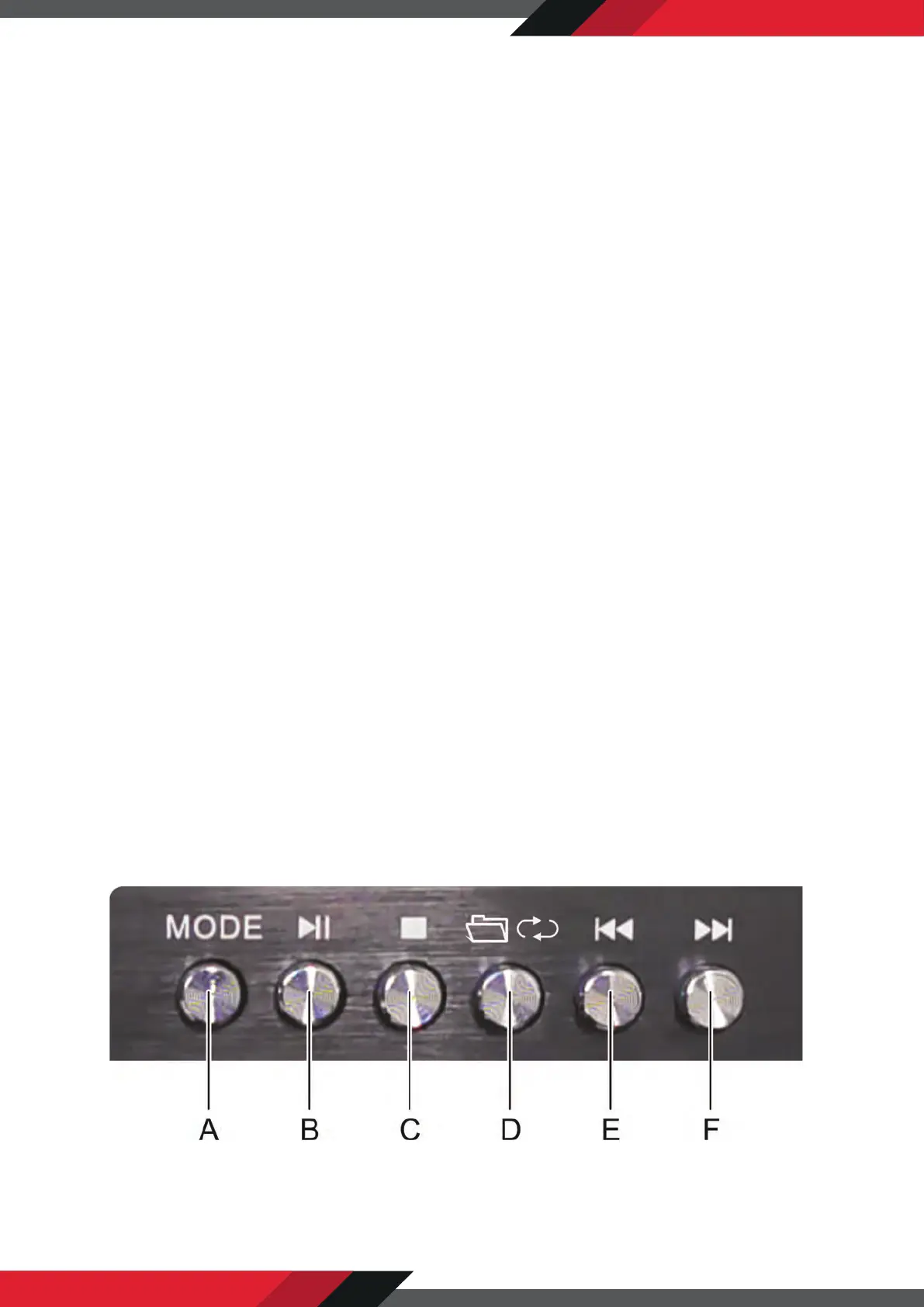

16. CONTROL BUTTONS
A. MODE BUTTON: Press this button to select one from play mode with USB/SD mode, FM mode and
Bluetooth mode, automatically set in USB/SD mode after turning on the unit, automatically play mp3 les
after inserting a USB ash driver or SD card.
To Next Page
