Pyle PLMRA620 User Manual

4
5
features and specifications
6 ch amp PLMRA620
frequency response
power supply voltage
output power @ 14.4v DC, 1KHz
RMS Power @ 4 Ohms
RMS Power @ 2 Ohms
Maximum Power Output
input sensitivity
low level inputs
maximum current draw
dimensions (W x H x L)
mm
inches
input impedance
low level inputs
high level inputs
matching speaker impedance
stereo mode
bridged mode
CH3/CH4 crossover mode selector
input level control
CH5/CH6 low pass frequency control
CH1/CH2/CH3/CH4
high pass frequency control
bass boost level control
low level inputs
power LED
protection LED
power fuse
power terminals
speaker connections
when used with normal, full range systems, set this switch to “FULL.” If you wish to
use the internal crossover to power a driver of specific frequency range, use the
“LOWPASS” or “HIGHPASS” settings.
use this control to match the outputs of your head unit to the amplifier. Starting with
your head unit set at about the 2 o’clock position, increase the amp level control until
distortion begins to occur, and reduce slightly from this point.
when the crossover selector switch is in “low pass” mode, this control sets the upper
frequency limit for audio program sent to the speakers.
when the crossover selector switch is in “high pass” mode, this control sets the lower
frequency limit for audio program sent to the speakers.
this control permits adjustment of the bass level up to an increase of approximately
18 dB.
this amp features gold-plated RCA input jacks for high impedance input. Use these
with car stereo output which uses RCA-type connector cables.
this indicator is illuminated when power is applied.
this indicator is illuminated when built-in protection circuitry is activated.
the fuse protects the amplifier and your car’s electrical system from short circuit
conditions.
use these connectors to deliver power, ground and remote turn-on control to the
amplifier.
these terminals are 14K gold plated to guarantee high conductivity and minimum
signal loss.
PLMRA620
6 channel amplifier
4 x 100 Watts + 2 x 250 Watts
4 x 175 Watts + 1 x 400 Watts
4 x 250 Watts + 2 x 500 Watts
15 Hz-30 KHz
250mV
14.4V DC Neg. Ground (10.5-16V)
2-4 Ohms
30A x 2
4-8 Ohms
10K Ohms
100 Ohms
276 x 69.5 x 498
10.9 x 2.7 x 19.6

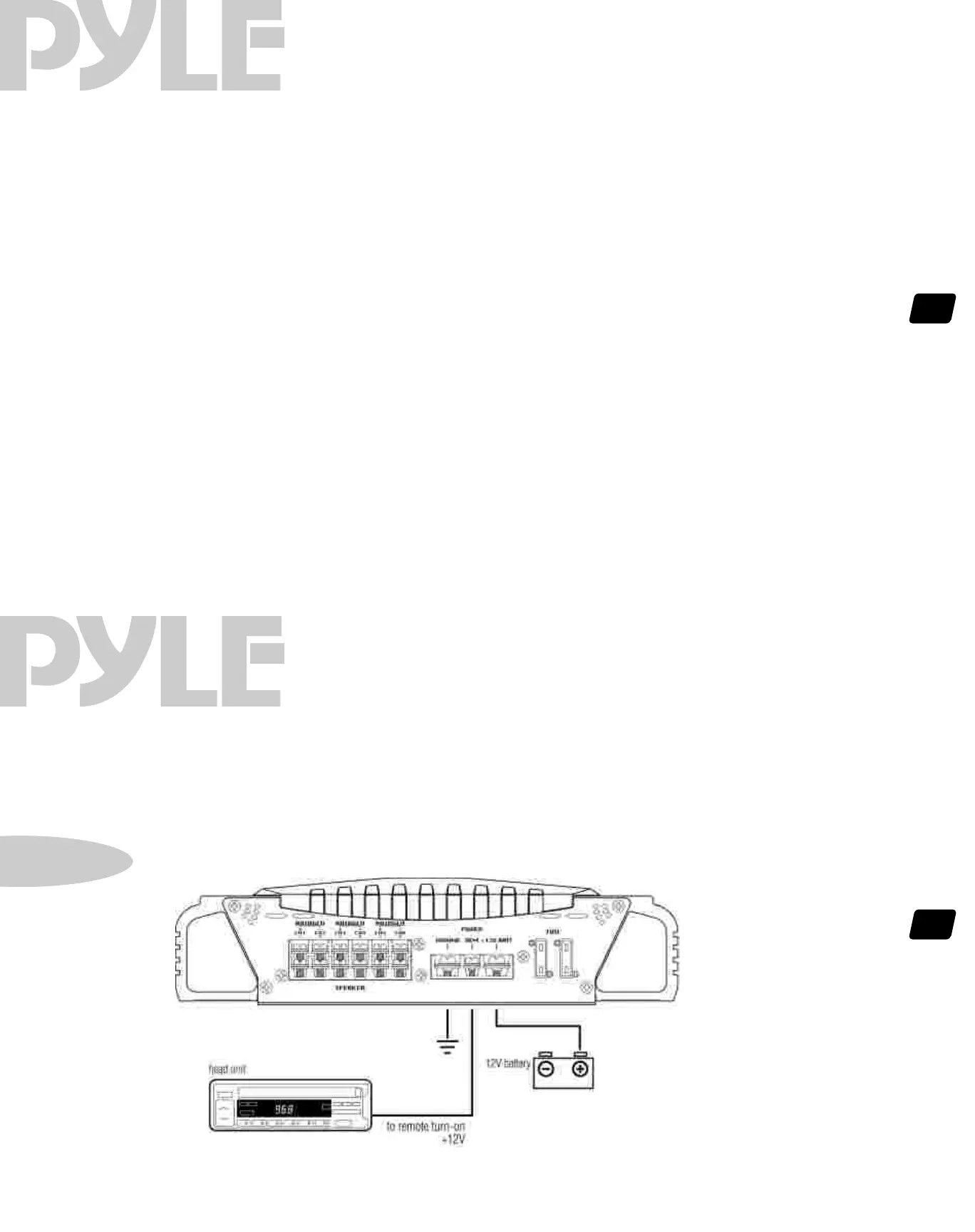

electrical connections
6 ch amps PLMRA620
PLMRA620

Pyle PLMRA620 Specifications

General

Bass boost	0 - 18 dB
Amplifier class	D
Frequency range	15 - 30000 Hz
RMS rated power	2000 W
Input sensitivity	250 mV
Built-in crossover	Yes
Audio input channels	5.1 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.04 %
RMS power output per channel (2 Ohm)	400 W
RMS power output per channel (4 Ohm)	250 W
Bridge-mode power output per channel (4 Ohm)	900 W
XLR in	No
Audio (L/R) in	3
Speaker selector	A+B
USB 2.0 ports quantity	0
Speakers connectivity type	Clamp terminals
Purpose	Car
Material	Aluminum
Cooling type	Active
Product color	Blue, Silver
Volume control	Digital
Connectivity technology	Wired
Maximum current	60 A
DC input voltage	12 V
Power protection features	Overheating, Overload, Short circuit
LED indicators	Power, Status

Weight and Dimensions

Depth	498 mm
Width	276 mm
Height	69.5 mm
