Pyle PLMRMBT5B User Manual

6

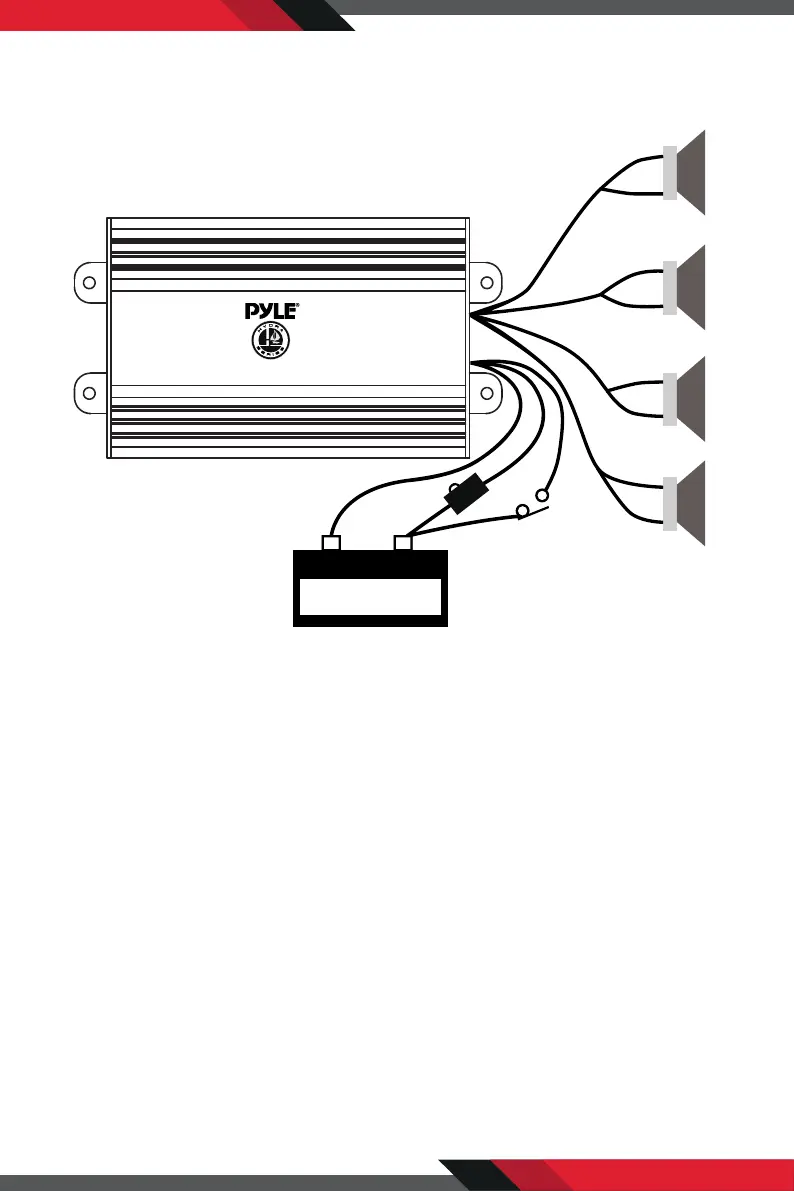

Power and Speaker Wiring
Wire Color
• Red
• Black
• Blue
• White
• White/Black
• Gray
• Gray/Black
• Green
• Green/Black
• Purple
• Purple/Black
+
-
+
-
+
-
+
-
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
GREEN
PURPLE
PURPLE/BLACK
GREEN/BLACK
BATTERY
-
+
BLACK
RED
Accessory switch
BLUE
4-8 ohm speakers
Four Channel Marine Power Amplier
Description
• Battery (+), 12dc
• Battery (-), Ground
• Remote Turn On, 12vdc = ON
• CH1 (+)
• CH1 (-)
• CH2 (+)
• CH2 (-)
• CH3 (+)
• CH3 (-)
• CH4 (+)
• CH4 (-)

Pyle PLMRMBT5B Specifications

General

Brand	Pyle
Model	PLMRMBT5B
Category	Amplifier
Language	English
