4. BLUETOOTH CONTROL: Plug for the Marine Grade Bluetooth Flush
Mounted Controller. When installed, this control will turn o the
Amplier when turned all the way down.
5. INPUT Stereo RCA audio input for connecting other audio devices.

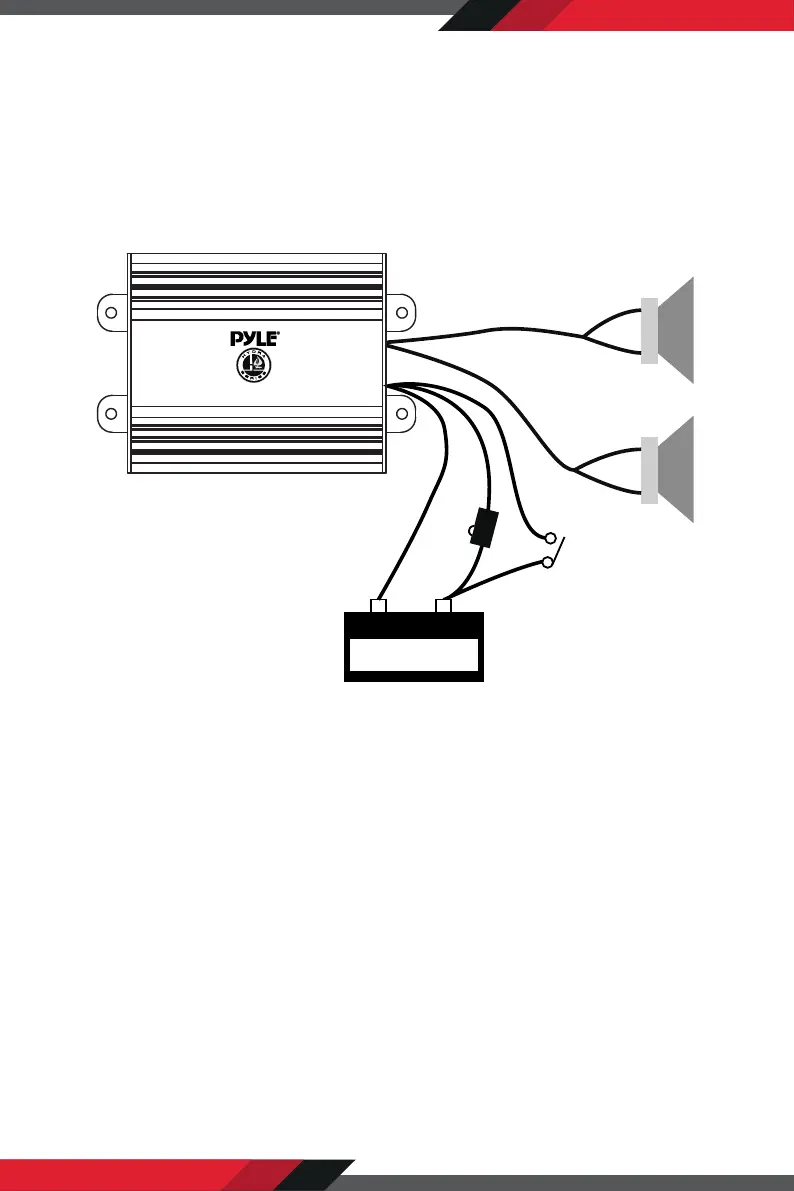

Power and Speaker Wiring
Wire Color
• Red
• Black
• Blue
• White
• White/Black
• Gray
• Gray/Black
Y
4-8 ohm speakers
+
-
+
-
WHITE
GRAY
GRAY/BLACK
WHITE/BLACK
Accessory switch
BATTERY
-
+
BLUEBLACK
RED
Two Channel Marine Power Amplier
Description
• Battery (+), 12dc
• Battery (-), Ground
• Remote Turn On, 12vdc = ON
• CH1 (+)
• CH1 (-)
• CH2 (+)
• CH2 (-)

Pyle PLMRMBT5B Specifications

General

Brand	Pyle
Model	PLMRMBT5B
Category	Amplifier
Language	English
