Pyle PLMRMP2A User Manual

www.PyleUSA.com
6

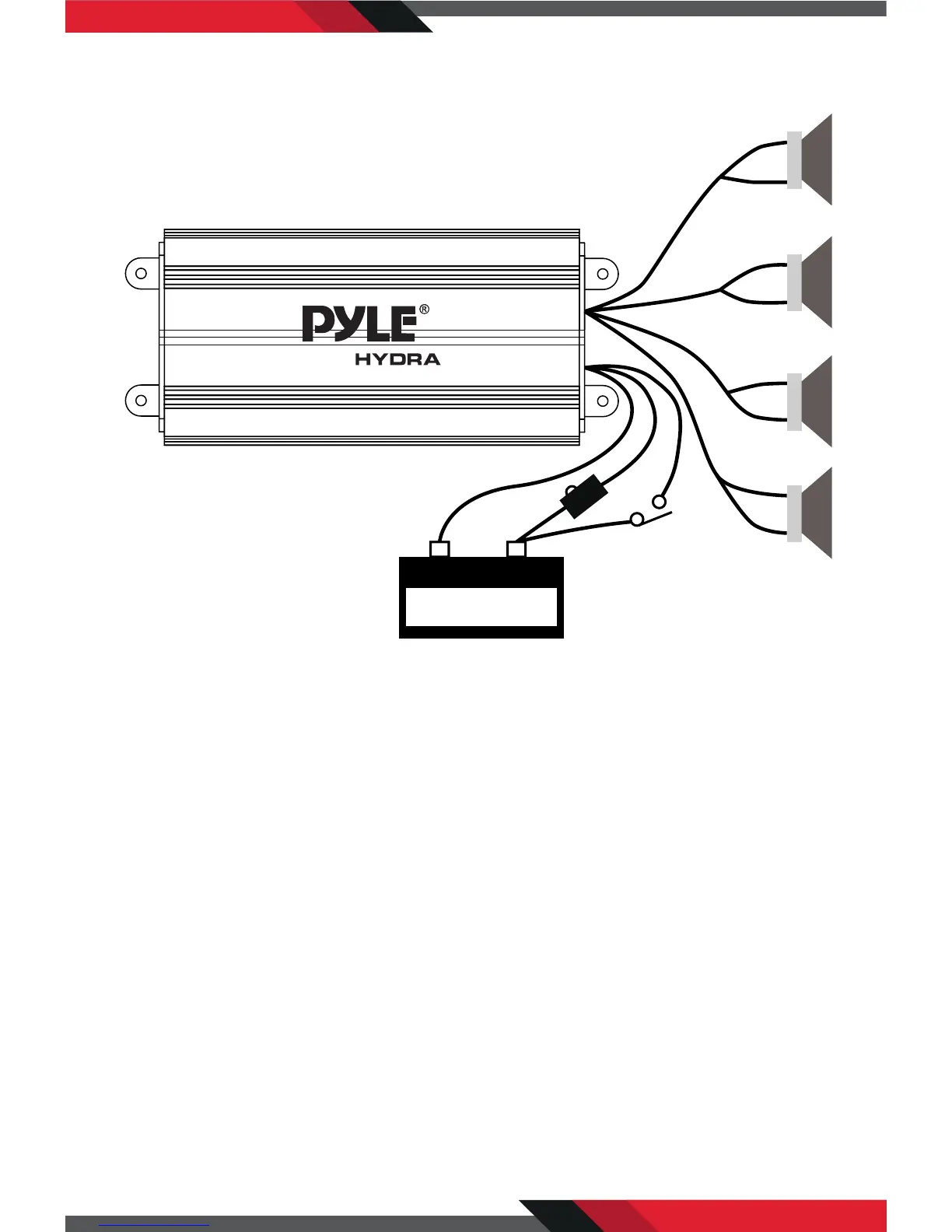

Power and Speaker Wiring
WIRE COLOR
Red
Black
Blue
White
Whire/Black
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
DESCRIPTION
Battery (+), 12dc
Barrery (-), Ground
Remote Turn On, 12vdc = ON
CH1 (+)
CH1 (-)
CH2 (+)
CH2 (-)
CH3 (+)
CH3 (-)
CH4 (+)
CH4 (-)
+
-
+
-
+
-
+
-
BATTERY
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
GREEN
PURPLE
PURPLE/BLACK
GREEN/BLACK
-
+
BLACK
RED
Accessory switch
BLUE
4-8 ohm speakers
Four Channel Marine Power Amplifier

Pyle PLMRMP2A Specifications

General

Brand	Pyle
Model	PLMRMP2A
Category	Amplifier
Language	English
