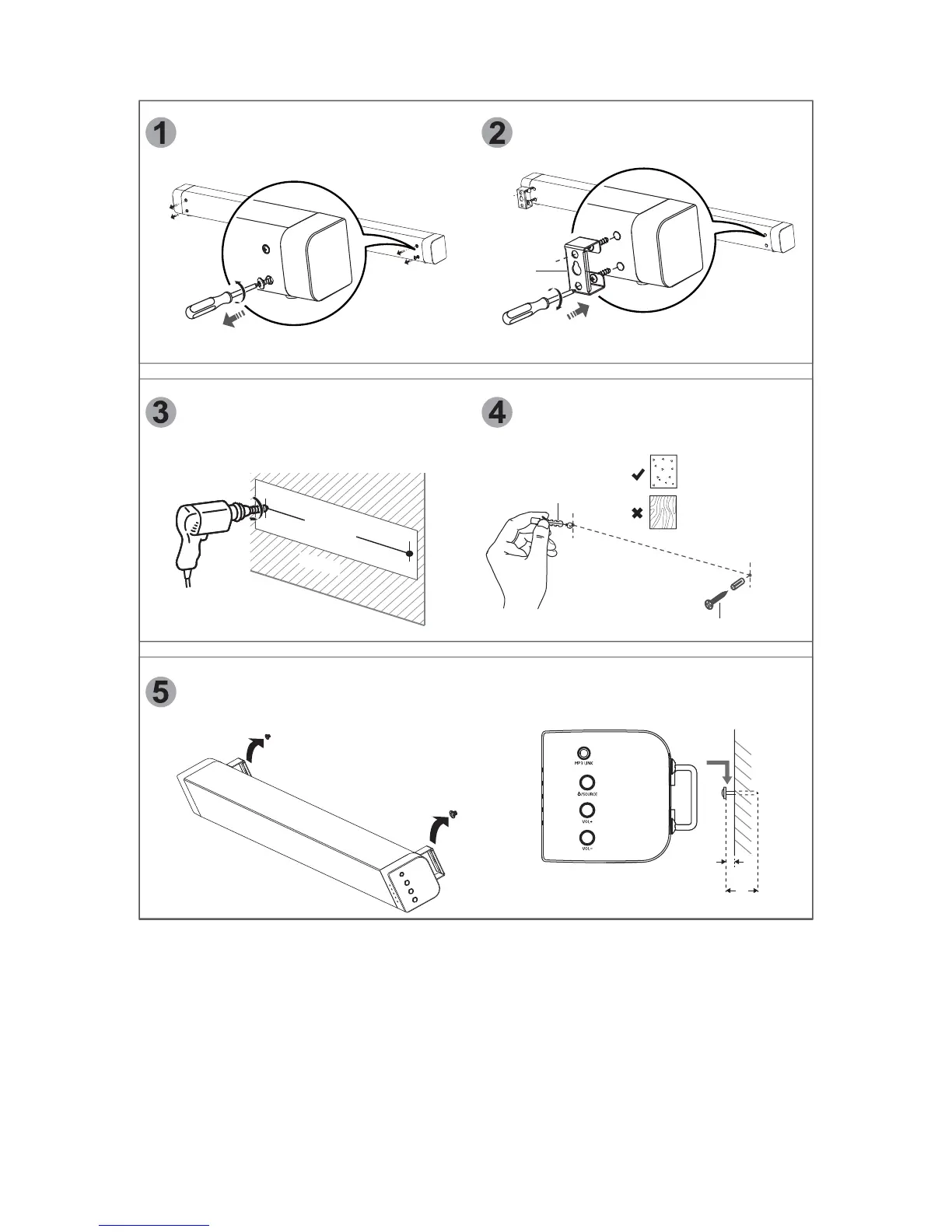

Remove the screws from the main unit.
Attach the wall brackets to the main unit with
the screws removed from the main unit.
Wall bracket
Drill 2 parallel holes (Ø 3-8 mm each according
to wall type) in the wall. The distance between
the holes should be 720 mm.
Leave a 5 mm gap between the wall and the screw’s head. Lift the unit with the attached wall
brackets over the heads of the screws and slot into place.
Firmly fix 1 dowel into each hole in the wall
if necessary.
5 mm
25-30 mm
Wall
720 MM
Solid wall (i.e., Solid brick,
Solid concrete, Solid wood,
Solid wooden battens)
Drywall, Plaster wall,
Lath wall, etc.
Dowel
Screws
