Pyle PTED06 User Manual

V
O
I
C
E
K
I
T
S
O
N
G
H
AND PER
C
UTILITY
T
EMP
O
P
AGE
P
P
KI
T
L
EARNIN
G
SO
N
G
L
-R EX
CH
C
LI
C
K
VO
LUM
E
PEDA
L
1
L
P
EDA
L
2
L
D
R
U
M
P
E
R
C
B
A
S
S
C
H
O
R
D
P
L
A
Y
A
A
/
S
T
O
P
S
A
V
A
A
E
/
R
E
C
O
R
D
V
O
I
C
E
VOICE
KIT
SONG
HAND PERC
UTILITY
TEMPO
PAGE
KIT
LEARNING
SONG
L-R EXCH
CLICK
VOLUME
PEDAL 1 PEDAL 2
D
RUM
PERC
B
AS
S
CH
O
R
D
PLAY/
STOP
SAVE/
RECORD
VOICE

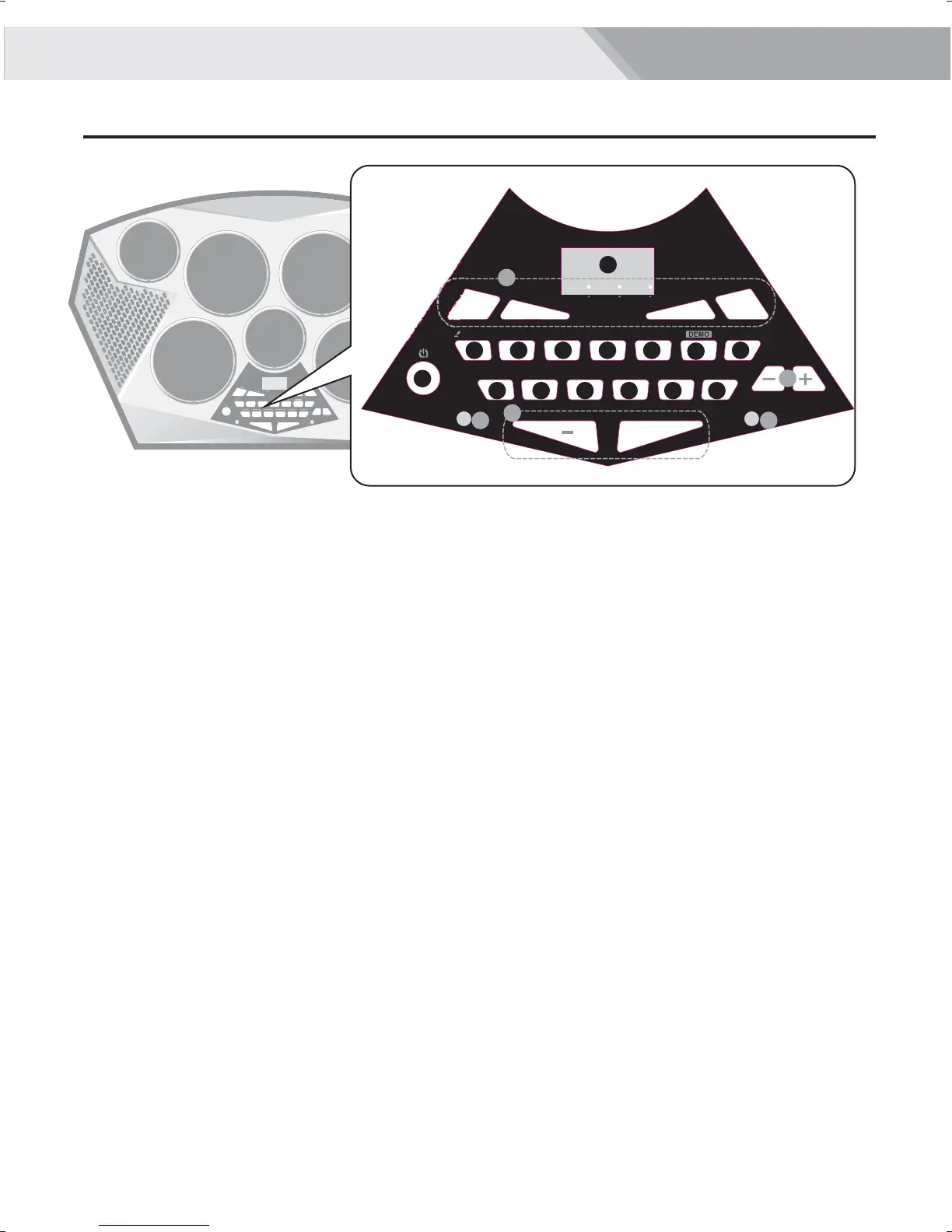

Panel Description
Top Panel
1. 3-Digital-LED Display
Display current mode and parameter.
2. [Power]
Press the button to turn the power on/off.
3. Song Track Switches
Mute or play 4 track respectively when playing a song.
The button indicator will be lighted.
[DRUM]
Mute/play the drum track of a song. Light on means play
this track, light off means mute this track.
[PERC]
Mute/play the percussion track of a song. Light on means
play this track, light off means mute this track.
[BASS]
Mute/play the bass track of a song. Light on means play
this track, light off means mute this track.
[CHORD]
Mute/play the chord track of a song. Light on means play
this track, light off means mute this track.
4. [SAVE/RECORD]
This button is used to save the current kit settings in a
user kit.
Press and hold the button for 1 second to enter record
menu. The button indicator will be lighted.
5. [PLAY/STOP]
Play/stop a song.
6. [SONG]
Press the button to enter song menu.
7. [KIT]
Press the button to enter kit menu.
8. [VOICE]
Press the button to enter voice menu.
9. [DEMO]
Press the button to play or stop demo.
10. [CLICK]
Press the button to start or stop the click, and enter click
menu. The button indicator will be lighted.
11. [TEMPO]
Press the button to enter tempo menu.
12. [L-R EXCH]
Press the button to exchange the voices between pads
on opposite positions. The button indicator will be lighted.
13. [LEARNING]
Press the button to enter learning mode. The button
indicator will be lighted.
14. [HAND PERC]
Press the button to enter hand percussion mode.
15. [UTILITY]
Press the button to enter utility menu. The button
indicator will be lighted. You can adjust the parameters
of EQ and pad start.
16. [PAGE]
Press the button to turn a page in menus.
17. [VOLUME+] / [VOLUME-]
Press to adjust global volume. Hold down to change the
volume faster.
18. [+] / [-]
Press to adjust parameters.
19. PEDAL Indicators
Kick pedal and hi-hat pedal indicators.
1
4 5 6 7 8
9
10
11 12 13 14 15 16
2
3
19 19
18
17
+
6
C
M
Y
CM
MY
CY
CMY
K
aw_DD309_manual_G08_140828.ai 6 2014/8/28 14:41:07aw_DD309_manual_G08_140828.ai 6 2014/8/28 14:41:07

Pyle PTED06 Specifications

General

Type	Electric
Drum type	-
Product color	Black
Drum stick(s) included	Yes

Weight and Dimensions

Depth	618 mm
Width	383 mm
Height	130 mm
Weight	3380 g
