Pyle PTED06 - Panel Description - Rear Connections

Panel Description

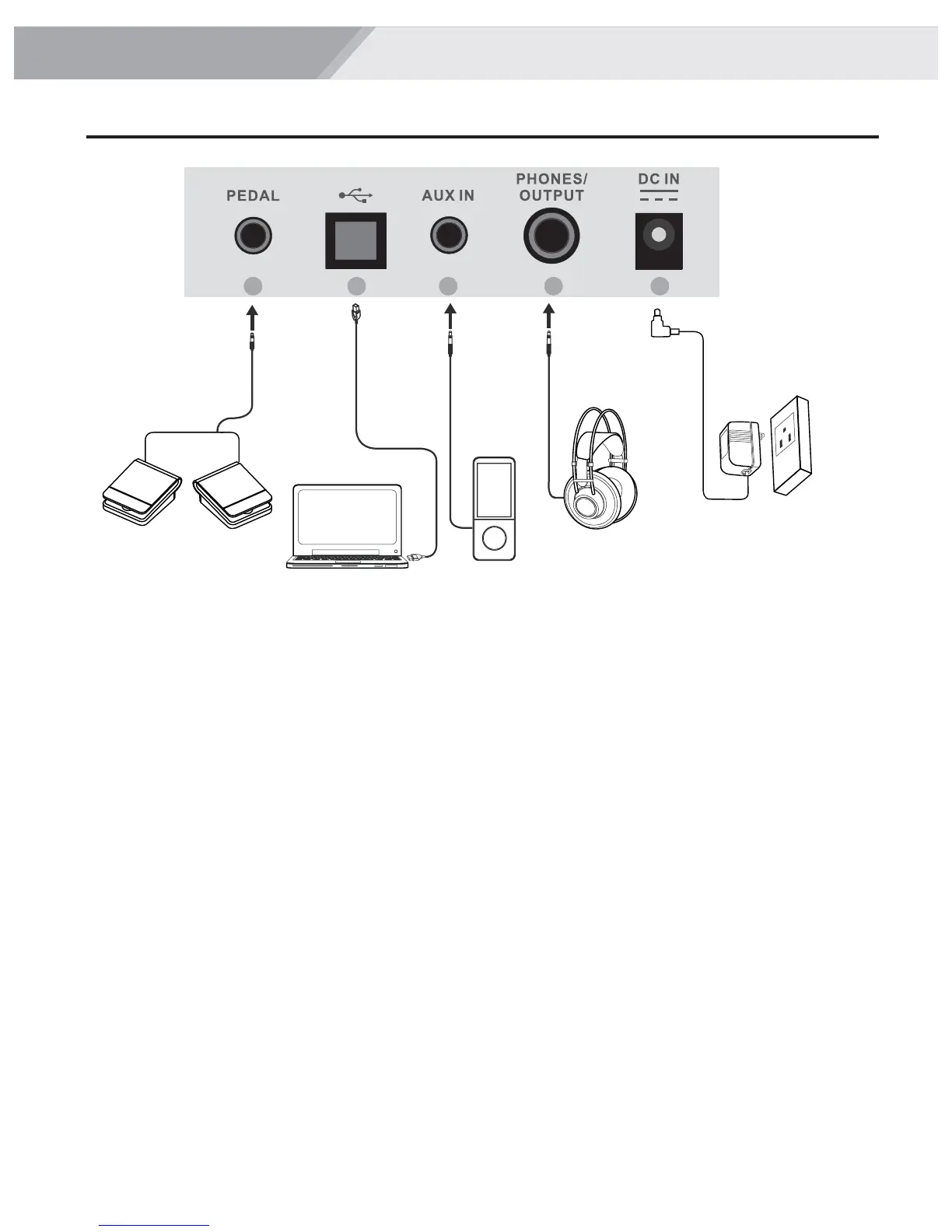

Real Panel：
20. [PEDAL] JACK
Connect to Pedals.
21. [USB] JACK
Connect to a PC.
22. [AUX IN] JACK
Connect to other Aux Out device.
23. [PHONES/OUTPUT] JACK
Connect to external AMP or phones.
24. [DC IN] JACK
Connect to the attached AC adaptor.
20 21 22 23 24
7
C
M
Y
CM
MY
CY
CMY
K
aw_DD309_manual_G08_140828.ai 7 2014/8/28 14:41:08
Rear
