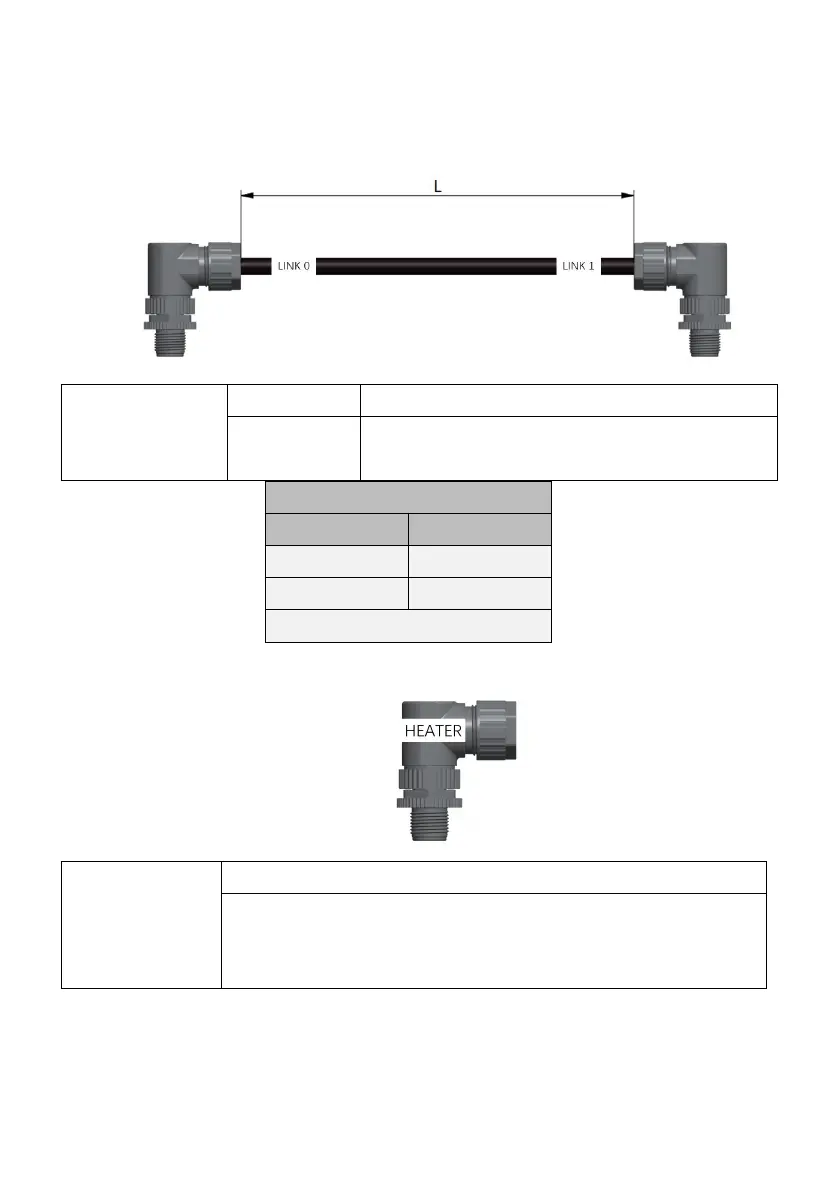

b. 1 set of internal communication cable
Internal
Communication
Cable
Length(M)
Description
0.4
For internal serial connection between
batteries
Pin assignment
Link 0
Link 1
1
2
2
1
3 ~ 8 is pin - pin
c. 1 set of Dry contactor heater terminal
Dry Contact
Heater
Terminal
Description
After power on the system, insert into the I/O port on the
master battery, the heater feature will be enabled to
automatically function when necessary
d. 1 set of spare communication terminal
