Pylon Technologies RT12100G31 - Power off; Trouble shooting; Single device power on

24
Caution
1) follow local electric safety and installation policy, a suitable breaker
between battery system and inverter could be required.
2) all the installation and operation must follow local electric standard.
5.6 Power on
Double check all the power cable and communication cable.
1) The one with empty Link Port 0 is the Master Battery Module, others are
slaves (1 master battery configure with maximum 15 slave batteries).

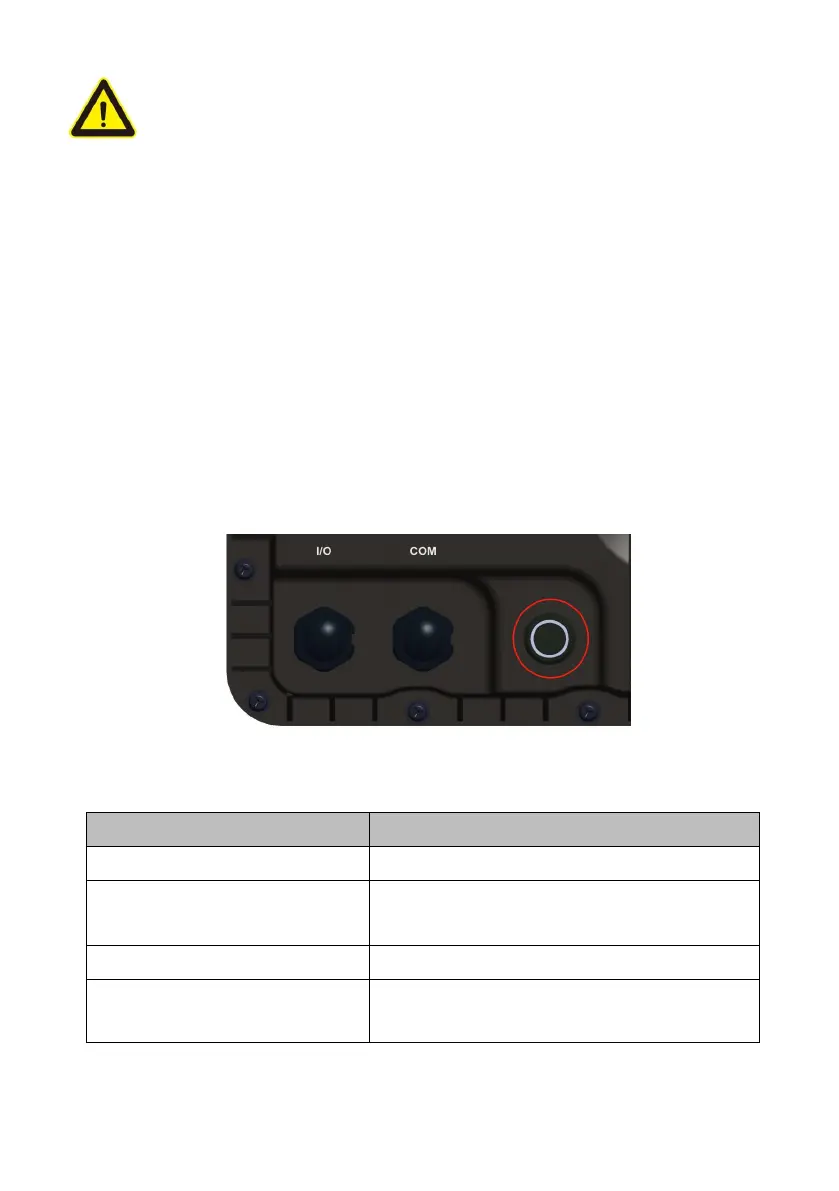

2) Switch on (press Power Button) all the battery modules from last battery
to the 1st battery.
3) The battery will assign the address of each battery one by one
automatically. If system is normal the battery LED will indicate as follow:
Battery Condition
Indicator Status
Power on/Normal
Flash 1, OFF 1.5S, on 0.5s
Waiting for Addressing or
Communication time out
Flash 2，OFF 1s, on 1s，
System Protect
Flash 3
，
OFF 0.5s on 1.5s
，
Sleep/Power off/System
error
OFF
