5.5Production and adjustment of communication plugs
1) The communication plug can be flexibly adjusted to the direction of actual
placement of the battery during installation, follow below procedure.

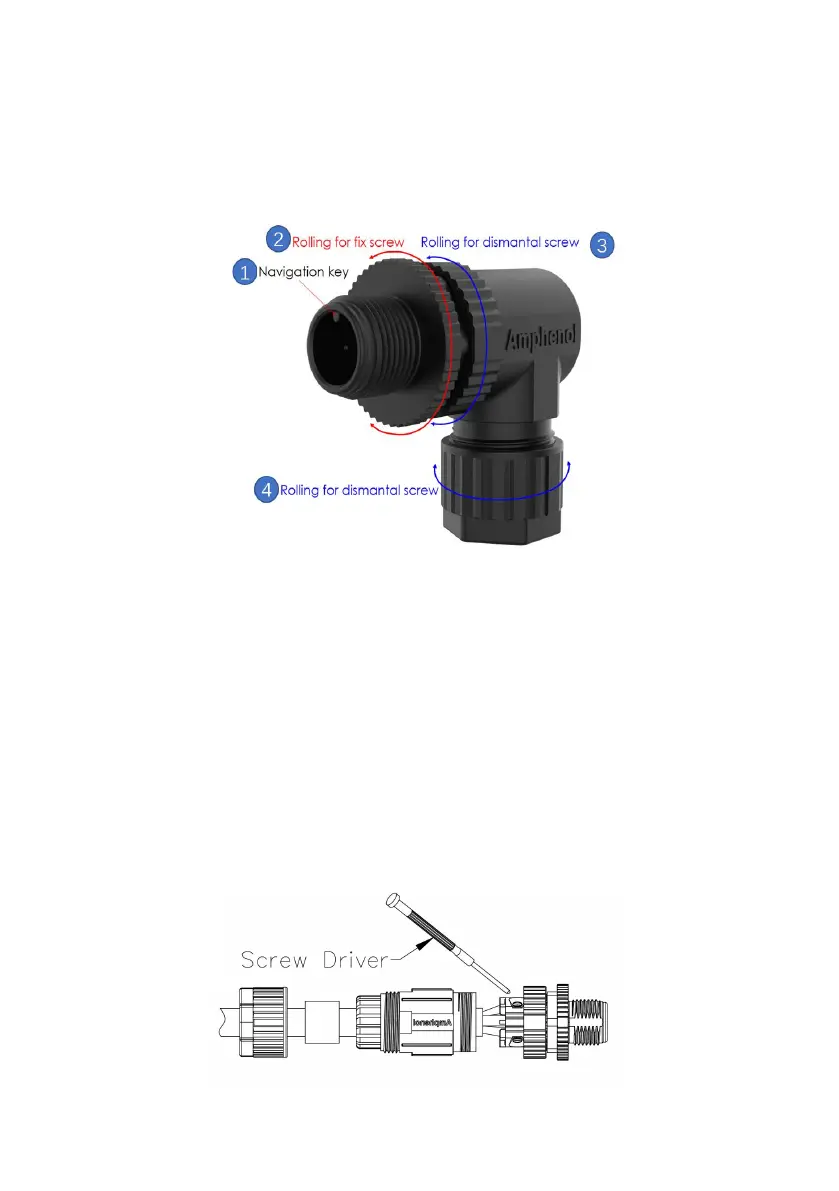

Align the plugs and sockets with the Navigation key (1) and insert the
plugs. Fasten the screw (2) to secure the plug. Loosen the screw (3) to
adjust the direction of the wire (every 45˚), then fasten screw (3) and (4).
2) External communication cable making
There are 2 connectors has been attached within battery carton for
external communication cable build-up purpose. Loosen the dismantle
screws of the corresponding pin. Put the stripped communication wire
through it and tighten the wire with a small screwdriver.
