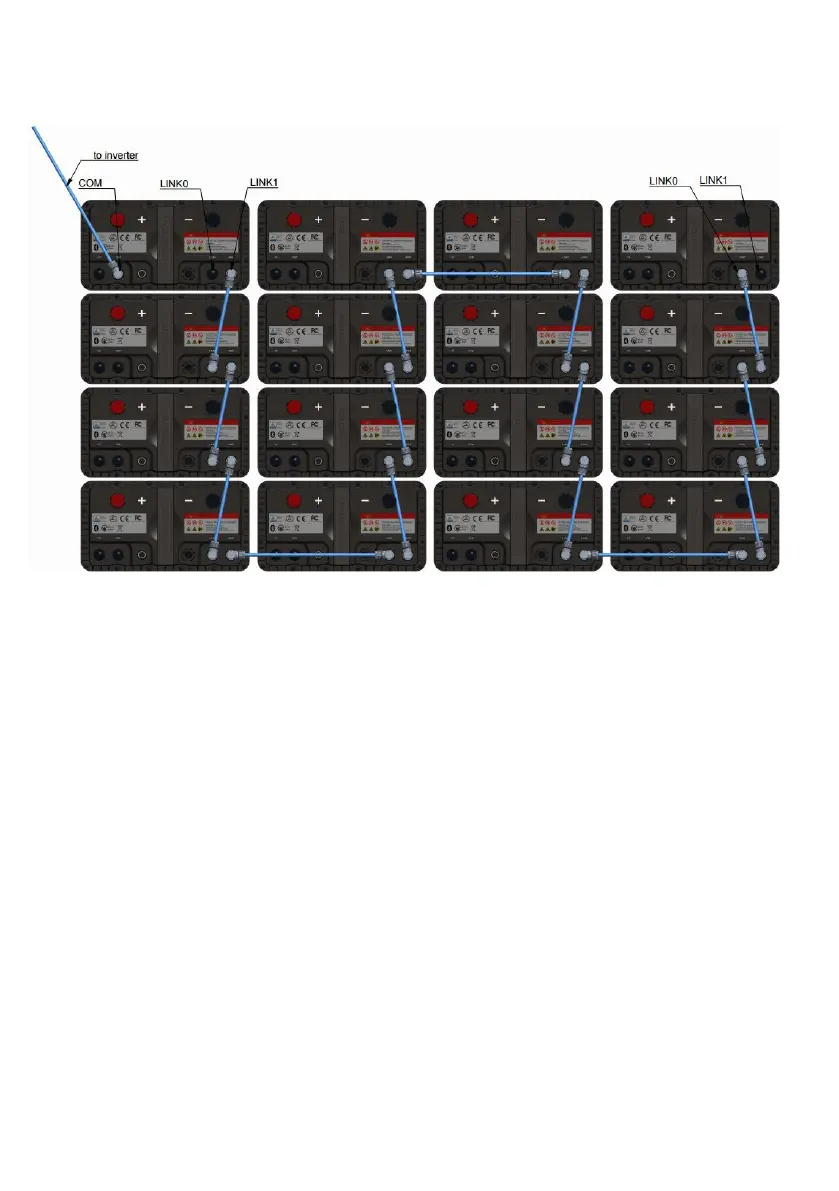

Diagram of battery communication cable connection:
Diagram of battery communication cable connection:
The internal communication port LINK0 of the 1st battery remains in EMPTY,
and LINK1 is connected to the 2nd battery's internal communication port
LINK0. All the way connected to the last module`s LINK0. The batteries are
numbered sequentially and the last battery's internal communication port
LINK1 is remain in EMPTY.
