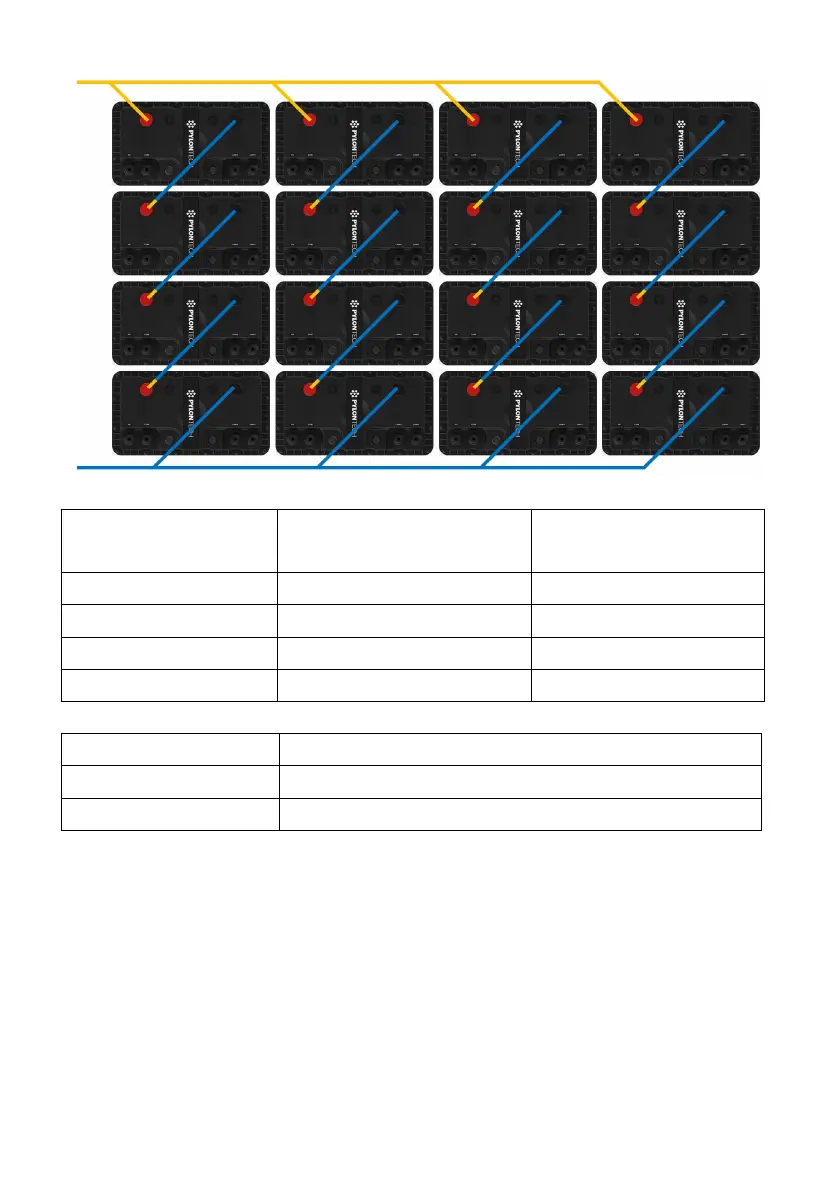

Series Configration
Recommended Charge
Voltage Value (Vdc)
Discharge Voltage
Range (Vdc)
1S
14 ~ 14.4
10.8 ~ 14.4
2S
28 ~ 28.5
22~ 28.5
3S
42~ 43
33 ~ 43
4S
56 ~ 57
44 ~ 57
Parallel Configuration
Maximum Charge /Discharge Current Value
1~8P
100A*N ( N= module amount, 1~8)
9P~16P
80A*N ( N = module amount, 9-16)
