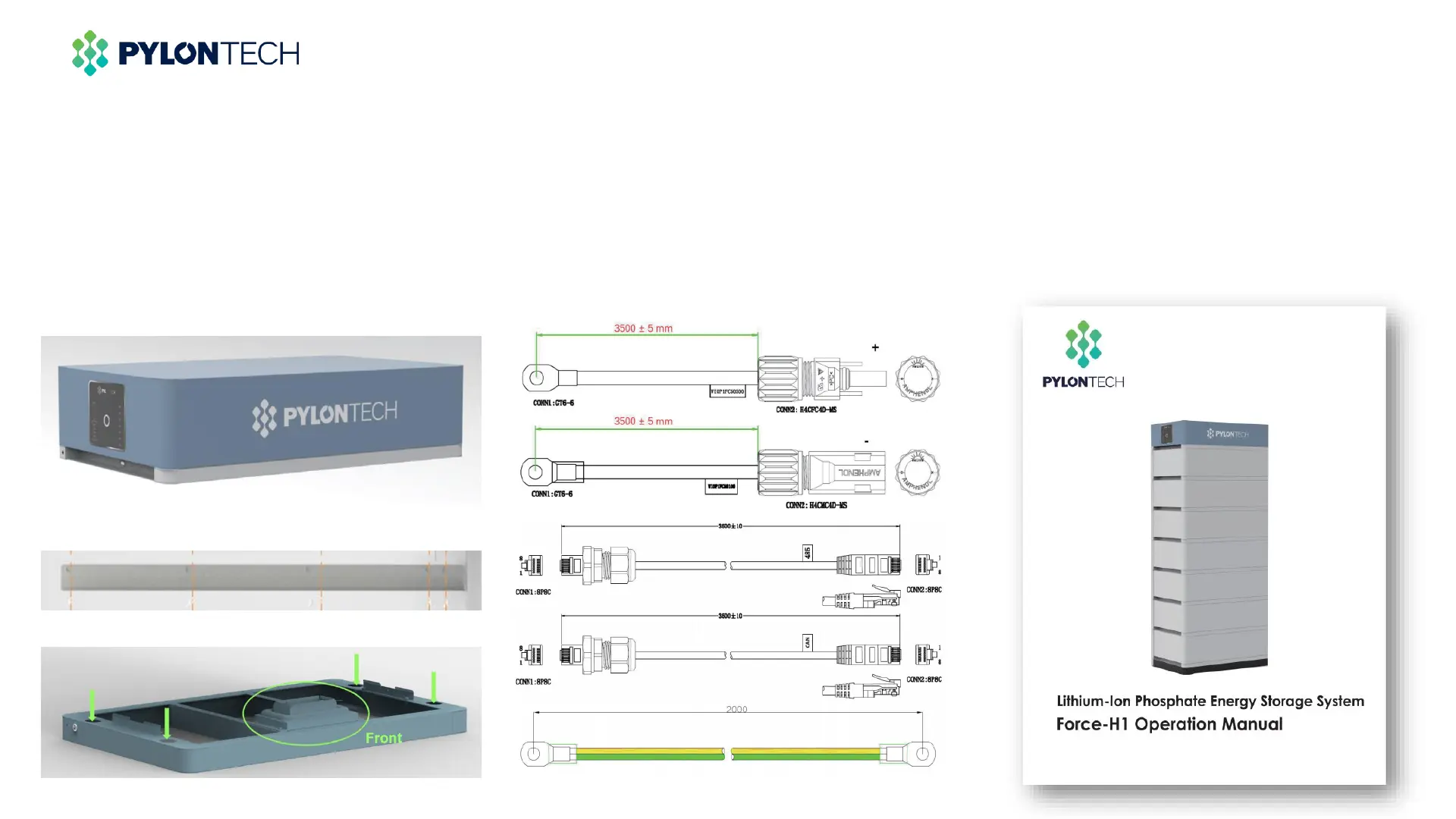

2) For
BMS package
:
1*BMS, 2*l
ong
metal brack
et, 2*short metal
bracket,
1*base, 2*power cable(3.5M),
2*communicati
on
c
able(3.5M), 1*grounding c
able(2M), screws, manual and warranty
card.
Installat
ion
Checking List
10
12
