INSTALLATION
2) Mounting battery module and BMS:

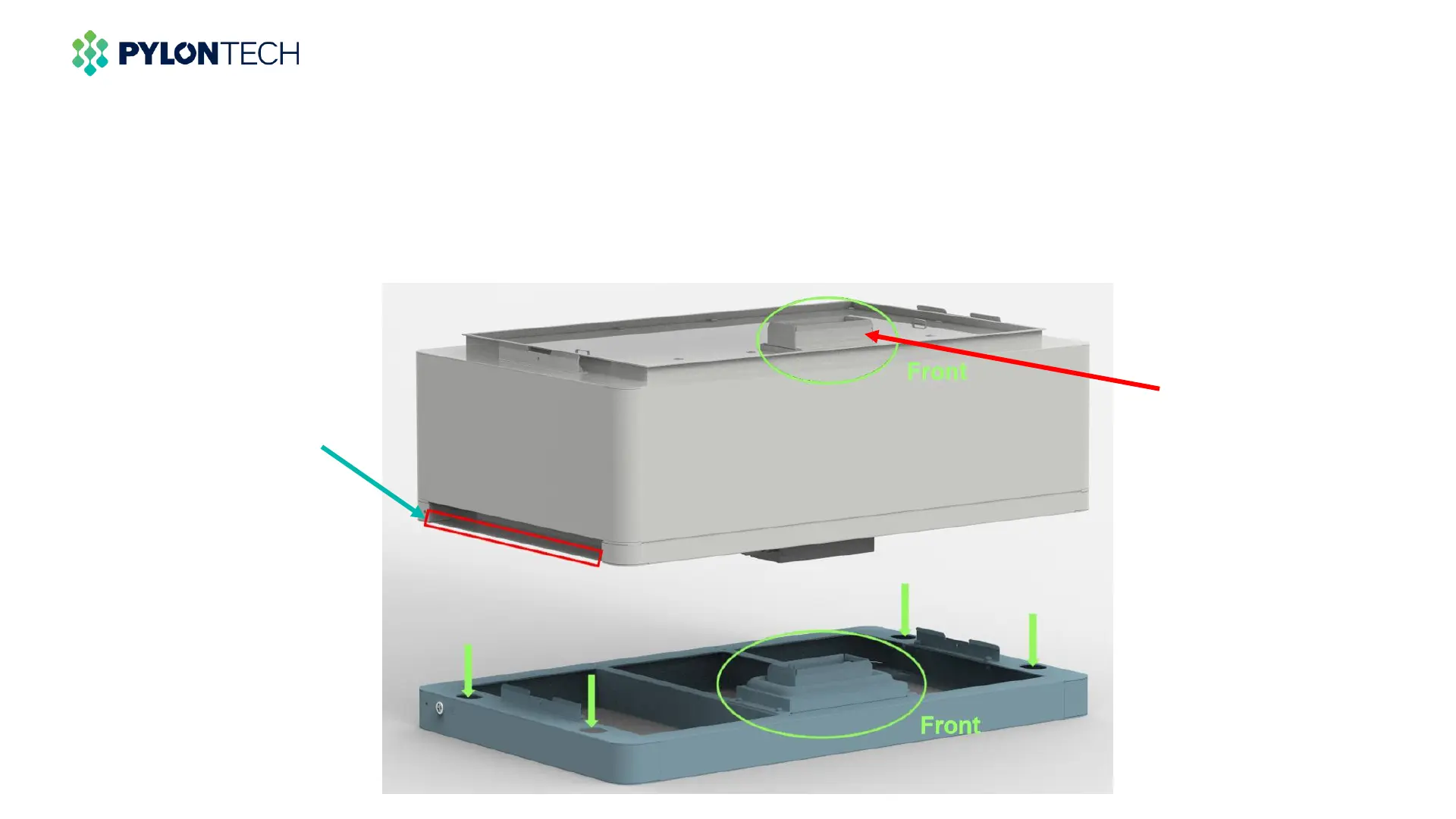

Handle the red marked edgings of the both side of these battery modules and control module (BMS).
Do not touch the connector on front.
Handle from here
DON`T touch here
