Pylontech LV-HUB Product Manual

9

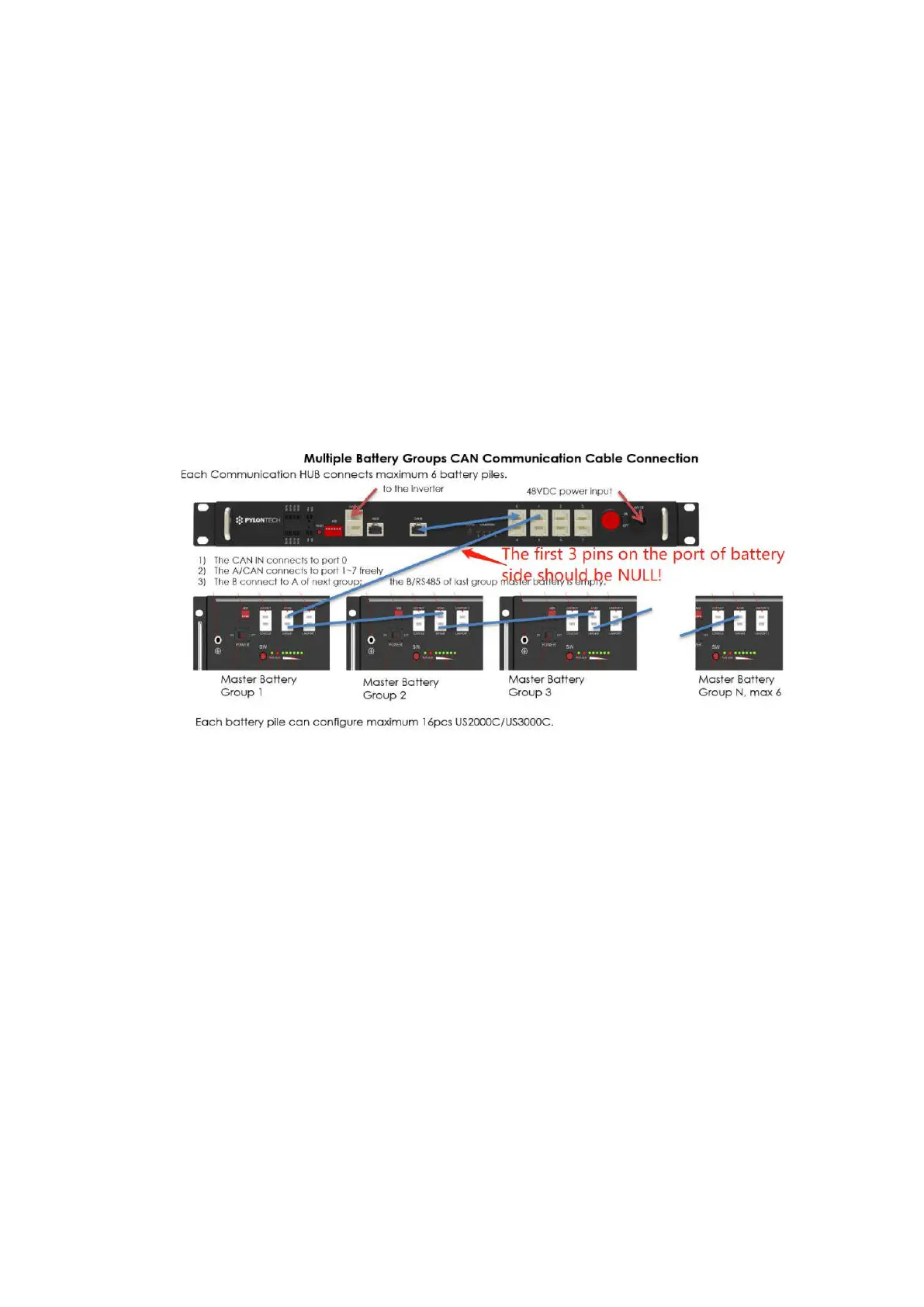

*Below communication cable shall be 8 pin direct-pin cable:
a. Between battery modules
b. Between LV-HUB Port 0 to LV-HUB CAN IN
*Below communication cable shall has first 3 pin NULL or use WI0SCAN30RJ1 cable inside external cable
kits:
a. Between Group 1 Master Battery A/CAN to LV-HUB Port 1.
Note: When using US2000C/US3000C/UP5000/US5000, the multiple group connection under RS485
communication DONOT require a LV-HUB. The wiring diagram please refer to the corresponding
battery model operation manual.
